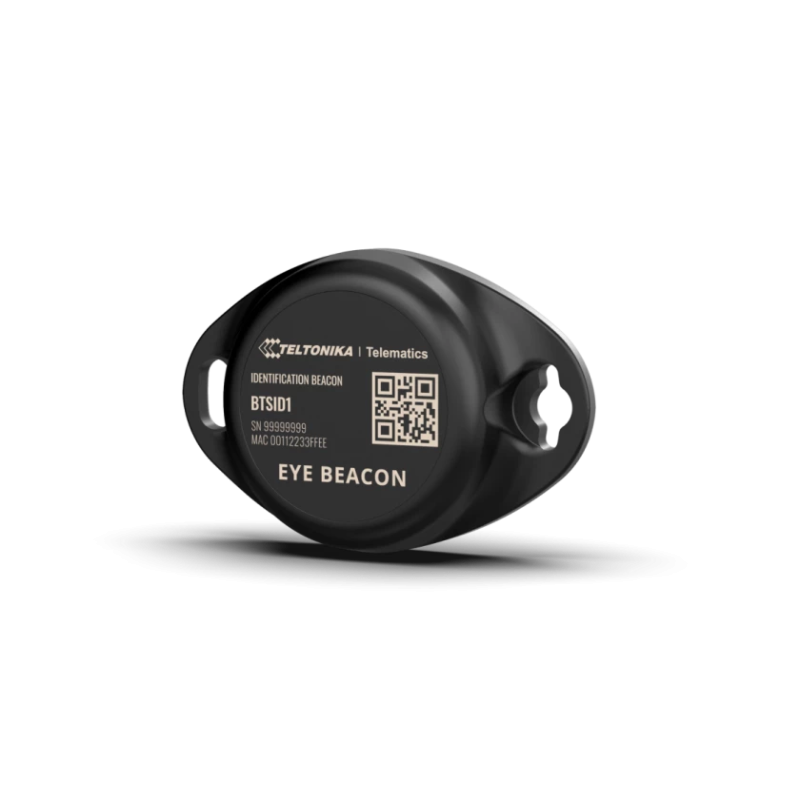

Teltonika EYE Beacon - Bluetooth 4.2 beacon

Description

EYE Beacon is a modern Bluetooth (BLE) identifier (beacon), designed for monitoring and locating various types of assets in real time. The device enables fast and convenient tracking of items both indoors and outdoors, making it an ideal solution for companies managing equipment, tools, or inventory. Thanks to Bluetooth® 4.2 technology, it can communicate with a wide range of mobile devices and IoT systems. One of the key advantages of EYE Beacon is its exceptionally long battery life, which can reach up to 10 years depending on configuration. This significantly reduces operating costs and maintenance requirements. The device features a compact and durable IP67-rated enclosure, ensuring resistance to dust, moisture, and harsh environmental conditions.

EYE Beacon offers flexible mounting options – it can be installed in four different ways, making deployment easy even in hard-to-reach locations. With the dedicated EYE APP mobile application, configuration and data reading are quick and intuitive, simplifying system implementation. The device supports popular protocols such as iBeacon and Eddystone, ensuring broad compatibility with existing location systems. Additionally, the built-in magnetic sensor enables detection of movement or changes in object position. A range of up to 80 meters and high receiver sensitivity ensure stable communication and accurate tracking. EYE Beacon is widely used across industries such as manufacturing, logistics, healthcare, and agriculture, where efficient asset management is essential. It is a reliable and energy-efficient solution for modern localization systems.

Features

• Beacon ID
• Sensors: magnetic detection
• Sleep mode
• Configuration and firmware updates via EYE APP
• Microcontroller: STMicroelectronics BlueNRG-2
• Bluetooth frequency range: 2.402 – 2.480 GHz
• Bluetooth antenna gain: 1.2 dBi
• Connectivity: Bluetooth® 4.2
• Range: up to 80 m
• Transmit power: up to 8 dBm
• Sensitivity: -88 dBm
• Protection rating: IP67
• Two mounting points on each side
• Customizable labeling
• Protocol compatibility: iBeacon, Eddystone
• Battery model: CR2450
• Battery type: Lithium manganese dioxide (Li/MnO2)
• Battery capacity: 600 mAh
• Non-replaceable battery
• Battery life: up to 4 years (Tx = 2 dBm; interval 3 s)
• Battery life: up to 8 years (Tx = 2 dBm; interval 5 s) – default setting
• Battery life: up to 10 years (Tx = 2 dBm; interval 10 s)
• Operating humidity: 0% – 100% non-condensing
• Operating temperature: -20 °C to +60 °C
• Dimensions: 56.6 x 38.0 x 13.0 mm
• Weight: 18 g
