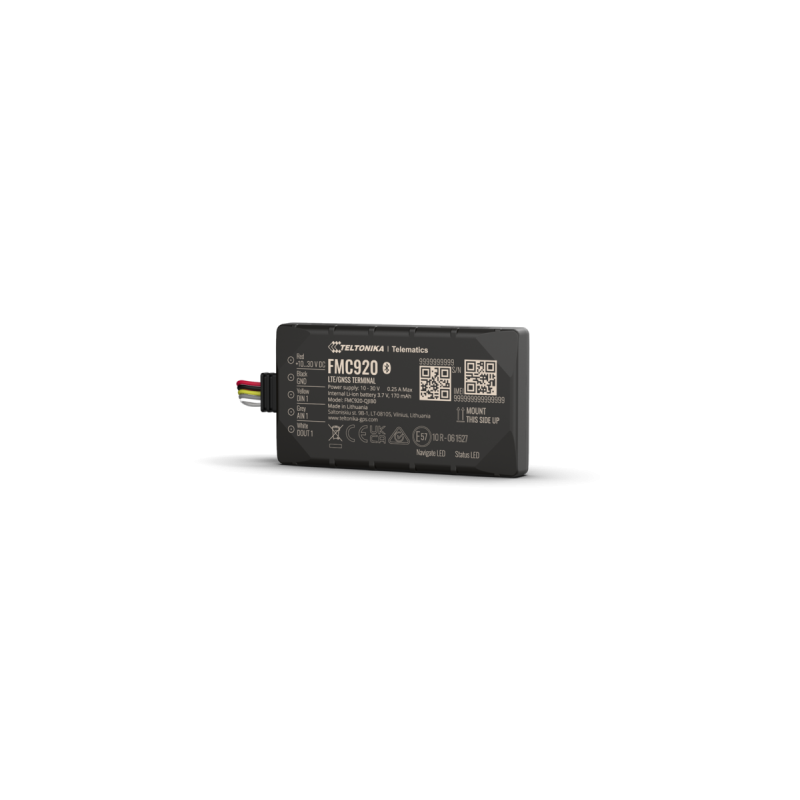

Teltonika FMC920 - GNSS tracking module with GSM communication

Description

FMC920 is a compact GPS/GNSS tracking and monitoring terminal with built-in GSM connectivity, designed for real-time location tracking and asset monitoring. The device enables collection of geographic coordinates and their transmission via a cellular network to a remote server, allowing continuous supervision of vehicle fleets, machinery, or other mobile assets. Thanks to a high-sensitivity GNSS module with up to -165 dBm, the terminal provides accurate positioning even in challenging environments. Built-in LTE Cat 1 and 2G (GSM/GPRS) technology ensures wide network compatibility and stable data transmission.

The device is designed for operation in demanding environments, offering a durable, compact housing and easy installation in limited spaces. FMC920 includes a built-in Bluetooth 4.0 module, motion sensor, and high-quality GNSS and GSM antennas, which improve accuracy and reliability. The terminal supports intelligent data acquisition algorithms based on time, speed, angle, distance, and I/O events, enabling optimized data transmission and reduced communication costs. It also provides real-time tracking and advanced route analysis.

FMC920 is equipped with 128 MB Flash memory, capable of storing up to 422,400 records, as well as a 3.7 V 170 mAh Li-ion battery. The terminal supports power supply from +10 to +30 V, allowing integration with vehicle electrical systems. Additionally, it offers one digital input, one analog input, and one open-collector output, enabling connection with various sensors and external devices. Device status is indicated by two LED indicators.

FMC920 supports advanced features such as jamming detection, a virtual odometer, and remote configuration via secure SMS commands. Data can be transmitted via both GPRS and SMS, increasing system flexibility. Thanks to its environmental resistance, fast GNSS fix time, and reliable data transmission, FMC920 is an ideal solution for fleet monitoring, logistics, and mobile asset management systems.

Features

• Technology: LTE Cat 1 / 2G (GSM/GPRS) / GNSS / Bluetooth
• GSM module: QJIB0 (Quectel EG915U-EU with Teltonika TM2500) or QKIB0 (Quectel EG915U-LA with Teltonika TM2500)
• Supported 2G bands: GSM B2/B3/B5/B8 (depending on version)
• Supported 4G LTE FDD bands:
  • QJIB0: B1/B3/B7/B8/B20/B28
  • QKIB0: B1/B2/B3/B4/B5/B7/B8/B20/B28/B66
• LTE data rate: up to 10 Mbps (DL) / 5 Mbps (UL)
• GPRS data rate: up to 85.6 Kbps (DL) / 85.6 Kbps (UL)
• GNSS: built-in high-sensitivity receiver up to -165 dBm
• GNSS antenna: internal, high-gain
• GSM antenna: internal, high-gain
• Flash memory: 128 MB (up to 422,400 records)
• Battery: 3.7 V 170 mAh Li-ion, rechargeable
• Motion sensor
• Bluetooth: 4.0
• Power supply: +10 to +30 V DC
• I/O interfaces:
  • 1 digital input
  • 1 analog input
  • 1 open collector output
• LED indicators: 2 status LEDs
• Special features:
  • fast GNSS position fix
  • real-time tracking
  • intelligent data acquisition (time, speed, angle, distance, I/O events)
  • GPRS and SMS data transmission
  • virtual odometer
  • jamming detection
  • secure SMS-based configuration
  • surge protection
  • ready for harsh environments
• Housing: compact, designed for industrial environments
• Cable: colored ribbon cable

Kit contains

• FMC920 device
• Upper and lower housing parts
• 3.7 V 170 mAh Li-ion battery
• 1x5 pin power and I/O cable (pre-installed in the device)
