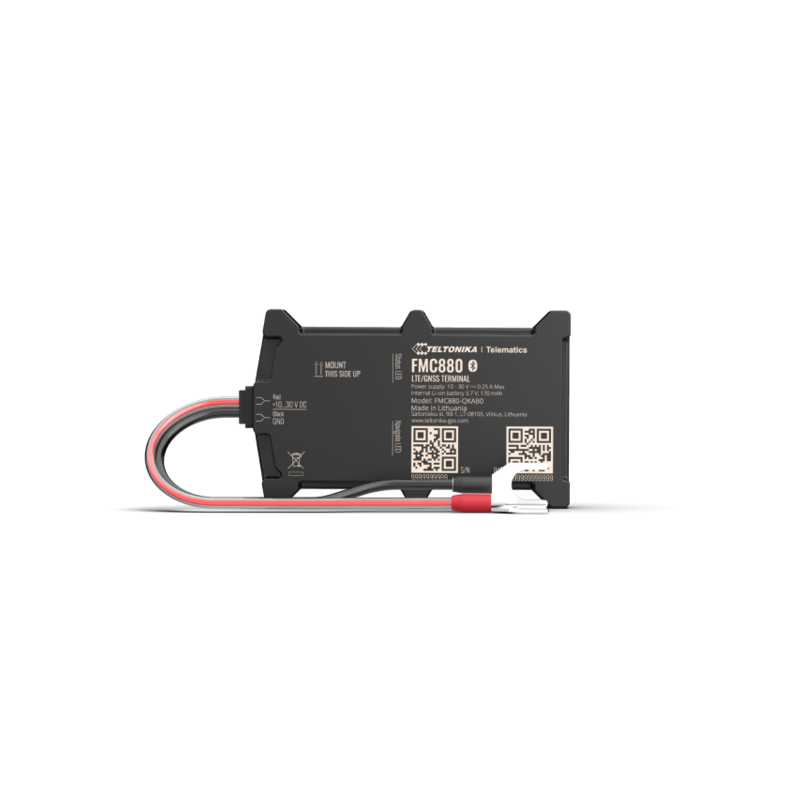

Teltonika FMC880 - GPS tracker for vehicles with 4G LTE Cat 1 communication

Description

FMC880 is an advanced GPS/GNSS vehicle tracker equipped with modern 4G LTE Cat 1 and 2G GSM connectivity, enabling precise real-time location monitoring. The device is designed for demanding fleet applications where reliability and measurement accuracy are crucial. Thanks to the use of a dual-band GNSS receiver (L1 + L5), the tracker provides significantly improved tracking quality and fast position acquisition even in challenging environments. High receiver sensitivity ensures effective operation in dense urban areas and locations with limited satellite signal. The device supports multiple navigation systems such as GPS, GLONASS, GALILEO, and BEIDOU, resulting in even greater positioning accuracy.

The built-in Bluetooth LE module allows integration with additional sensors and accessories, expanding the system’s functionality. The robust, compact enclosure with an IP65 protection rating ensures resistance to dust and water, making the device suitable for harsh environmental conditions. FMC880 features a built-in backup battery, enabling operation even when external power is disconnected, increasing the security of the monitored asset. With features such as jamming detection, driving behavior analysis, and event detection, the device provides a comprehensive fleet management solution. Additionally, support for communication protocols and data transmission via LTE and GPRS ensures fast and stable data transfer. Configuration can be performed locally via USB or remotely using the FOTA platform, significantly simplifying device management. Advanced power-saving modes allow optimization of energy consumption depending on the operating scenario. FMC880 is an ideal solution for transport companies, vehicle rental services, and all applications requiring reliable monitoring of location and driving parameters.

Features

• Module: FMC880-QJAB0: Quectel EG915U-EU with AG3335 / FMC880-QKAB0: Quectel EG915U-LA with AG3335
• Technology: LTE CAT 1 / GSM / GPRS / GNSS / Bluetooth® LE
• GNSS: L1: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS; L5: GPS, GALILEO, BEIDOU
• Receiver: L1: 75 acquisition/tracking channels, L5: 60 tracking channels
• Tracking sensitivity: -165 dBm
• Position accuracy: < 1.5 m CEP
• Speed accuracy: < 0.1 m/s (±15%)
• Time to first fix: hot < 1 s; warm < 25 s; cold < 35 s
• 2G bands: GSM B2/B3/B5/B8
• LTE bands:
  • FMC880-QJAB0: B1/B3/B5/B7/B8/B20/B28
  • FMC880-QKAB0: B2/B3/B4/B5/B7/B8/B28/B66
• Data transfer: LTE up to 10 Mbps (DL) / 5 Mbps (UL); GPRS up to 85.6 Kbps
• Transmit power: GSM850/900: 30±5 dBm; GSM1800/1900: 29±5 dBm; LTE: 26±5 dBm
• Internal fuse: 3A, 125V
• Bluetooth: 4.0 + LE
• Supported devices: temperature and humidity sensors, OBDII, barcode scanner, BLE sensors
• Interface: U-Type connector
• Antennas: internal GNSS and GSM high gain
• USB: 2.0 Micro USB
• LED: 2 status indicators
• SIM: Micro-SIM
• Memory: 128 MB Flash
• Sensors: accelerometer
• Functions: eco driving detection, overspeed detection, jamming detection, GNSS fuel counter, idling detection, disconnection detection, towing detection, collision detection, geofencing, route tracking
• Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration: FOTA Web, Teltonika Configurator (USB, Bluetooth)
• SMS and GPRS support: configuration, events, debugging
• Time synchronization: GNSS, NITZ, NTP
• Ignition detection: accelerometer, power voltage, RPM (OBDII)
• Power supply: 10 to 30 V DC with overvoltage protection
• Battery: 170 mAh Li-Ion 3.7 V
• Operating temperature: -40 °C to +85 °C (without battery), 0 °C to +40 °C (with battery)
• Operating humidity: 5% to 95% non-condensing
• Protection rating: IP65
• Dimensions: 92.5 x 57.6 x 14 mm
• Weight: 63 g
