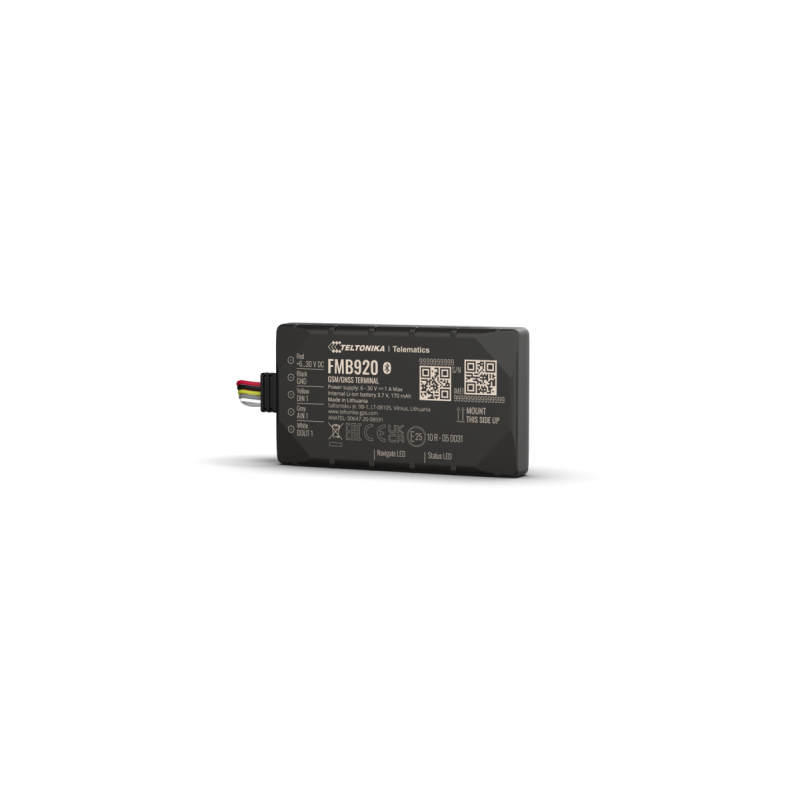

Teltonika FMB920 - GPS tracker for vehicles with 2G communication
ID: 1206219
4779027311753
zł132.31
Tax included
zł107.57 tax excl.
A compact GPS/GNSS terminal with GSM/GPRS connectivity designed for real-time monitoring and tracking of objects. The device provides precise positioning thanks to a GNSS receiver with sensitivity down to -165 dBm and supports data transmission over a cellular network. It is equipped with 128 MB of memory, a 3.7 V Li-ion battery, and digital/analog inputs and outputs enabling integration with vehicle systems and sensors. Teltonika FMB920
Description
FMB920 is a compact GNSS/GSM tracking terminal designed for real-time location tracking of objects and transmitting their coordinates to a remote server. The device enables precise geographic position acquisition and transmission via GSM network, making it an ideal solution for fleet management systems, logistics, and mobile asset monitoring. With a built-in GNSS receiver sensitivity of up to -165 dBm, the terminal ensures stable and accurate positioning even in challenging environments. The integrated GSM/GPRS module provides reliable communication over cellular networks, ensuring continuous data transmission.
The device is designed as a miniature and durable tracker that can be easily installed in confined spaces. A built-in motion sensor and Bluetooth 4.0 module extend integration and data analysis capabilities. The terminal supports intelligent data acquisition mechanisms based on time, speed, angle, distance, and I/O events, enabling optimized data transmission and reduced communication costs. The real-time tracking feature allows continuous monitoring of the object’s position.
FMB920 is equipped with 128 MB Flash memory, capable of storing up to 422,400 records, and a 3.7 V 170 mAh Li-ion battery for backup operation. A wide power supply range of +6 to +30 V allows integration with various electrical systems, including vehicle installations. The device provides 1 digital input, 1 pulse input, 1 analog input, and 1 open-collector output, enabling connection to external sensors and devices. Operating status is indicated by two LED indicators.
FMB920 supports advanced features such as jamming detection, a virtual odometer, and remote configuration via secure SMS commands. Data can be transmitted via both GPRS and SMS, increasing system integration flexibility. Thanks to its environmental resistance, fast positioning, and intelligent data management, FMB920 is a reliable solution for modern telematics systems.
Features
- Technology: GNSS / GSM / GPRS / Bluetooth 4.0
- GSM module: Teltonika TM2500 (quad-band GSM 850 / 900 / 1800 / 1900 MHz)
- GPRS class: Class 12 (up to 240 kbps)
- GNSS: built-in receiver with sensitivity up to -165 dBm
- GNSS antenna: internal, high-gain
- GSM antenna: internal, high-gain
- Flash memory: 128 MB (up to 422,400 records)
- Battery: 3.7 V 170 mAh Li-ion, rechargeable
- Motion sensor: built-in
- Power supply: +6 to +30 V DC
- I/O interfaces:
- 1 digital input
- 1 pulse input (DIN1)
- 1 analog input
- 1 open-collector digital output
- LED indicators: 2 device status LEDs
- Transmission: SMS (text and data), GPRS
- Special features:
- fast GNSS positioning
- real-time tracking
- intelligent data acquisition (time, speed, angle, distance, I/O events)
- GPRS and SMS event reporting
- virtual odometer
- jamming detection
- secure SMS configuration
- surge protection
- designed for harsh environments
- Housing: compact, suitable for confined-space installation
- Cable: colored ribbon cable
Kit contains
- FMB920 device
- Upper and lower housing parts
- 3.7 V 170 mAh Li-ion battery
- 1x5 pin power and signal cable (pre-installed in the device)
