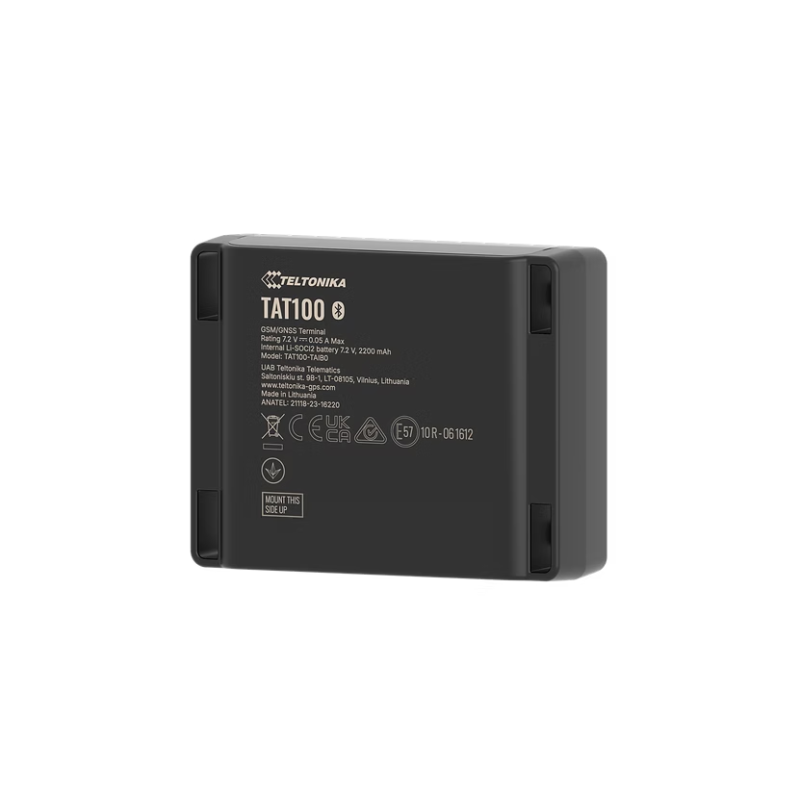

Teltonika TAT100 autonomous GPS tracker designed for monitoring vehicles, trailers, containers, machinery, and other assets without an external power supply. Supports GPS, GLONASS, Galileo, and BeiDou positioning, 2G GSM/GPRS connectivity, and Bluetooth 4.2 LE. An integrated accelerometer enables motion detection, while the IP68-rated enclosure protects the electronics against dust and water. The device uses a replaceable, non-rechargeable two-cell Li-SOCl₂ battery pack rated at 7.2V and 2200mAh. Supports periodic location reporting, Recovery mode, and communication with compatible Bluetooth LE sensors. Teltonika TAT100TSBAB0

24h
Available
Available quantity: 2

Description

The Teltonika TAT100 enables location monitoring of vehicles, trailers, containers, machinery, tools, and other assets without an external power supply. The tracker uses a 2G GSM/GPRS module operating in the 850 / 900 / 1800 / 1900MHz bands and a GNSS receiver supporting GPS, GLONASS, Galileo, and BeiDou. The receiver offers tracking sensitivity down to -165dBm and positioning accuracy better than 2.5m CEP. The device features internal GNSS and GSM antennas, 128MB Flash memory, and an integrated accelerometer for motion detection and tracker wake-up.

Bluetooth 4.2 LE connectivity enables communication with compatible Bluetooth LE sensors, including the Teltonika EYE Sensor and EYE Beacon, supported in Recovery mode. Tracking functions include periodic location reporting while moving or stationary, a scheduler with time zone support, Recovery mode, Backup Tracking, and static navigation. The IP68-rated enclosure protects the electronics against dust and water ingress, allowing operation in outdoor environments.

The version with ordering code TAT100TSBAB0 uses a replaceable battery pack containing two Li-SOCl₂ cells connected in series, rated at 7.2V and 2200mAh. The cells feature low self-discharge and are not rechargeable. Once depleted, the entire battery pack can be replaced. The manufacturer specifies battery life of up to 3 years with one GNSS report per day, up to 4 years with one LBS location report per day, or up to 5 years when used as a backup tracker operating via Bluetooth only. Actual battery life depends on reporting frequency, environmental conditions, cellular network coverage, and enabled device functions.

The TAT100 supports data transmission over GPRS, SMS messages, and TCP, UDP, TLS, and DTLS protocols. Cellular location reporting requires a Micro-SIM card with an appropriate data service and access to a 2G network. Remote configuration and firmware updates are available through FOTA Web, while local configuration can be performed using Teltonika Configurator through Micro-USB. The USB port is not intended for charging the Li-SOCl₂ battery pack. The device measures 78x63x28mm and weighs 119g in the two-cell configuration.

Features

  • General information
    • Manufacturer: Teltonika
    • Model: TAT100
    • Ordering code: TAT100TSBAB0
    • Device type: autonomous GPS/GNSS tracker
    • Cellular and GNSS module: Teltonika TM2500
    • Integrated accelerometer
    • Internal memory: 128MB Flash
  • Positioning and connectivity
    • GNSS systems: GPS, GLONASS, Galileo, BeiDou
    • GNSS channels: 33 tracking channels, 99 acquisition channels
    • GNSS tracking sensitivity: down to -165dBm
    • Positioning accuracy: better than 2.5m CEP
    • Cellular connectivity: 2G GSM/GPRS
    • GSM bands: 850 / 900 / 1800 / 1900MHz
    • Maximum GPRS data rate: 85.6kbps (DL and UL)
    • Communication protocols: TCP, UDP, TLS, DTLS
    • SMS support
    • Bluetooth: 4.2 LE
    • Compatible Bluetooth LE sensor support
    • Teltonika EYE Sensor support
    • Teltonika EYE Beacon support in Recovery mode
    • Internal high-gain GNSS antenna
    • Internal high-gain GSM antenna
  • Power supply and battery life
    • Power source: replaceable Li-SOCl₂ battery pack
    • Number of cells: 2
    • Cell configuration: series connection (2S)
    • Battery pack voltage: 7.2V
    • Battery pack capacity: 2200mAh
    • Non-rechargeable battery cells
    • Replaceable battery pack
    • Low battery self-discharge rate
    • Battery life: up to 3 years with one GNSS report per day
    • Battery life: up to 4 years with one LBS report per day
    • Battery life: up to 5 years as a backup tracker using Bluetooth only
    • Battery life depends on configuration and operating conditions
  • Interfaces and functions
    • SIM card: Micro-SIM
    • USB interface: Micro-USB 2.0
    • Status indicators: 2 LEDs
    • Periodic location reporting while moving or stationary
    • Scheduler with time zone support
    • Recovery mode
    • Backup Tracking
    • Static navigation
    • Accelerometer-based wake-up
    • Lost Bluetooth LE sensor detection
    • Power saving: configurable sleep mode
    • Remote configuration and firmware updates: FOTA Web
    • Local configuration: Teltonika Configurator via USB
    • Configuration and diagnostics via SMS
    • Configuration and diagnostics via GPRS commands
    • Time synchronization: GNSS, NITZ, NTP
  • Mechanical and environmental specifications
    • Ingress protection rating: IP68
    • Dimensions: 78x63x28mm
    • Device weight with two-cell battery pack: 119g
    • Operating temperature with battery: -35°C to +75°C
    • Storage temperature with battery: -40°C to +85°C
    • Recommended maximum battery storage temperature: +30°C
    • Operating humidity: 5% to 95%, non-condensing

Kit Includes

  • Teltonika TAT100 GPS tracker with two-cell Li-SOCl₂ battery pack - 1 pc.
  • Original Teltonika-branded packaging box - 1 pc.
1207767

Data sheet

Device Type
GPS Tracker
CAN
none
Cellular Network Standard
2G GSM/GPRS
WiFi module
No
GNSS
Yes
Bluetooth module
Yes
Accelerometer
Yes
Built-in Battery
No
Mounting Method
Other
Tightness class
IP68
