Compact tracker for monitoring equipment, personnel, animals, and other mobile assets; 4G LTE Cat 1 up to 10 Mbps download and 5 Mbps upload; 2G GPRS; GNSS with GPS, GLONASS, Galileo, and BeiDou; positioning accuracy below 1.8 m CEP; Nano SIM; 1000 mAh Li-Po battery; USB Type-C; accelerometer; movement-based and periodic tracking; scheduling; configurable alarm button; remote firmware updates via FOTA WEB; 128 MB Flash memory; IP65; operating temperature from -20°C to 60°C. Teltonika ATC700

24h
Available
Available quantity: 4

Description

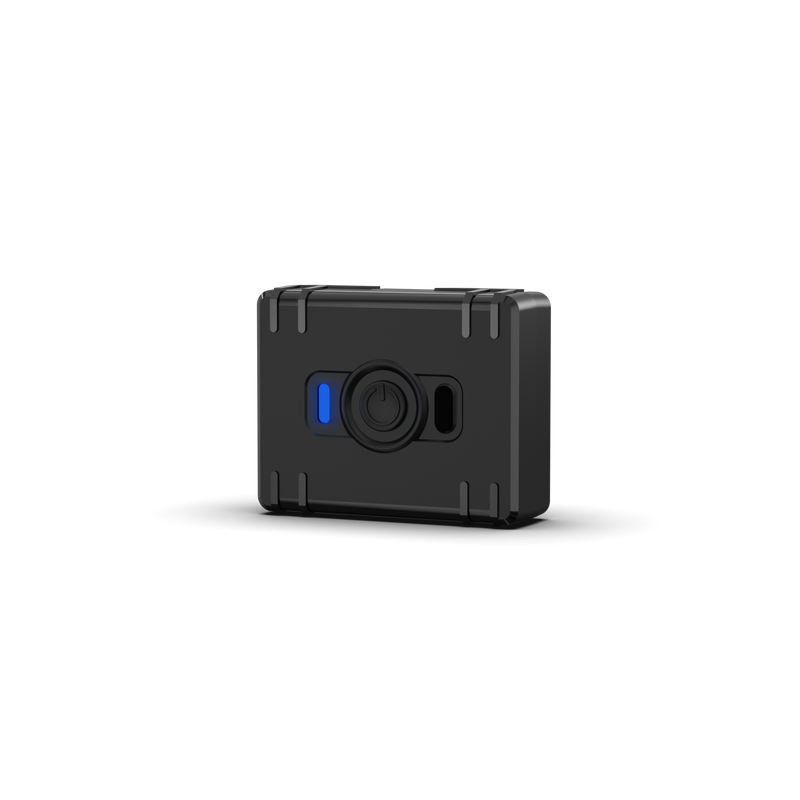

Compact tracker designed for monitoring the location of equipment, tools, cargo, personnel, animals, and other mobile assets using cellular networks and GNSS. Teltonika ATC700 supports 4G LTE Cat 1 with data rates of up to 10 Mbps download and 5 Mbps upload, as well as GSM/GPRS communication. The integrated GNSS receiver supports GPS, GLONASS, Galileo, and BeiDou, providing positioning accuracy below 1.8 m CEP and tracking sensitivity of -165 dBm. Internal cellular and GNSS antennas simplify installation, while the integrated accelerometer enables movement-based tracking. Additional functions include periodic tracking, scheduled operation, and a configurable alarm button.

The integrated 1000 mAh, 3.7 V Li-Po battery enables operation without a permanent connection to a power source, while the USB Type-C port provides battery charging. Configuration and firmware updates are supported through Teltonika Configuration Tool and FOTA WEB, with additional configuration and diagnostics available via SMS and GPRS commands. Dimensions of 62.2 x 54.2 x 20.3 mm and a weight of 71 g facilitate installation in space-constrained applications. An operating temperature range from -20°C to 60°C and IP65 protection support deployment for monitoring mobile equipment and other assets exposed to varying environmental conditions.

Features

  • Cellular connectivity
    • 4G LTE Cat 1
    • LTE FDD: up to 10 Mbps download / 5 Mbps upload
    • GSM / GPRS
    • GPRS: up to 85.6 kbps download / 85.6 kbps upload
    • SMS support in TEXT and PDU formats
    • Network protocols: TCP and UDP
    • LTE FDD transmit power: Class 3, 23 ± 2 dBm
    • GSM 850/900 transmit power: Class 4, 33 ± 4 dBm
    • GSM 1800/1900 transmit power: Class 1, 30 ± 2 dBm
  • GNSS
    • GPS
    • GLONASS
    • Galileo
    • BeiDou
    • 135 tracking / acquisition channels
    • Tracking sensitivity: -165 dBm
    • Positioning accuracy: below 1.8 m CEP
    • Warm start: below 25 s
    • Hot start: below 1 s
    • Internal high-gain GNSS antenna
  • Tracking functions
    • Movement-based tracking
    • Periodic tracking
    • Scheduled operation
    • Alarm button function
    • Configurable LED indication
    • Power bank support
    • Time synchronization via GNSS, NITZ, and NTP
  • Sensors and power-saving modes
    • Integrated accelerometer
    • Online Sleep mode
    • Power Off Sleep mode
  • Memory
    • 128 MB internal Flash memory
    • Codec 8 Extended support
  • SIM card
    • 1 x Nano SIM slot
  • USB
    • USB 2.0
    • 1 x USB Type-C
  • Configuration and updates
    • Teltonika Configuration Tool
    • FOTA WEB
    • Configuration via SMS
    • Diagnostics via SMS
    • Configuration via GPRS commands
    • Diagnostics via GPRS commands
  • Power
    • Integrated Li-Po battery
    • Battery capacity: 1000 mAh
    • Battery voltage: 3.7 V
    • Battery energy: 3.7 Wh
    • Power bank support
    • Battery charging temperature: 0°C to 45°C
    • Battery discharge temperature: -20°C to 60°C
  • Interfaces and indicators
    • 1 x USB Type-C
    • 1 x Nano SIM slot
    • 1 x multifunction button
    • 1 x RGB LED
    • Internal high-gain cellular antenna
    • Internal high-gain GNSS antenna
  • Mechanical and environmental specifications
    • Dimensions: 62.2 x 54.2 x 20.3 mm
    • Weight: 71 g
    • Ingress protection rating: IP65*
    • Operating temperature: -20°C to 60°C
    • Operating humidity: 5% to 95%, non-condensing
    • Storage temperature with battery for 1 month: -10°C to 25°C
    • Storage temperature with battery for more than 3 months: 0°C to 25°C
    • IP65 internally tested by the manufacturer, without certification
  • Certifications and compliance
    • CE RED
    • UKCA
    • E-Mark
    • RCM

Kit includes

  • Teltonika ATC700 asset tracker
  • USB Type-C cable
1208216

Data sheet

Device Type
GPS Tracker
CAN
none
Cellular Network Standard
4G LTE Cat 1 / 2G
WiFi module
No
GNSS
Yes
Bluetooth module
No
Accelerometer
Yes
Built-in Battery
Yes
Mounting Method
Other
Tightness class
IP65
