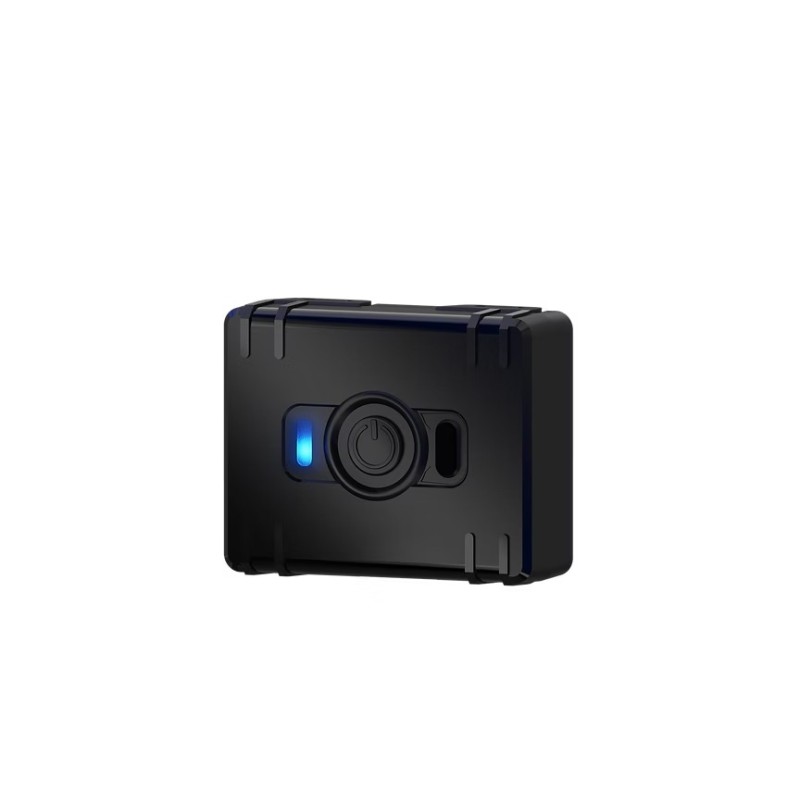

Teltonika ATM700 - 4G LTE Cat M1 GPS Tracker with 1000mAh Battery
ID: 1210067
4779027312972
zł359.43
Tax included
zł292.22 tax excl.
Compact GNSS tracker designed to monitor the location and movement of assets, equipment, and company property. Supports GPS, GLONASS, Galileo, and BeiDou, transmitting data via LTE Cat M1, NB-IoT, or GSM/GPRS. Equipped with a 1000 mAh Li-Po battery, accelerometer, multifunction button, RGB LED, and USB-C connector. Features configurable location reporting modes, an IP65-rated enclosure, and Nano-SIM support. Teltonika ATM700 (ATM700M3AA01).
Description
The compact Teltonika ATM700 GPS tracker enables monitoring of the location and movement of equipment, tools, shipments, and other assets without their own power supply. The device uses GPS, GLONASS, Galileo, and BeiDou satellite navigation systems, along with LTE Cat M1, NB-IoT, and GSM/GPRS cellular connectivity. Its integrated GNSS receiver provides 135 tracking and acquisition channels and positioning accuracy of less than 1.8 m CEP under the conditions specified by the manufacturer.
The tracker features a 1000 mAh lithium-polymer battery, rechargeable via USB-C, and an accelerometer for detecting device movement. Configurable operating scenarios include movement-based location reporting, periodic data transmission, and scheduled operation. The multifunction button supports an alarm function, while the RGB LED indicates device status. The 128 MB Flash memory is used for data storage.
The IP65-rated enclosure provides protection against dust and water jets, while the operating temperature range of -20°C to 60°C allows the tracker to be used in various environmental conditions. Compact dimensions of 62.2 × 54.2 × 20.33 mm and a weight of 71 g make it easy to position the device alongside monitored equipment. Device settings and firmware updates are managed using Teltonika Configuration Tool (TCT) and FOTA WEB.
Features
- General information
- Manufacturer: Teltonika
- Model: ATM700
- Order code: ATM700M3AA01
- Hardware variant: ATM700-Q3AE0
- Communication module: Quectel BG95-M3
- Platform: Teltonika FT
- GNSS positioning
- Supported systems: GPS, GLONASS, Galileo, BeiDou
- GNSS receiver: 135 tracking and acquisition channels
- Tracking sensitivity: -165 dBm
- Positioning accuracy: less than 1.8 m CEP
- Hot start: less than 1 s
- Warm start: less than 25 s
- Built-in high-gain GNSS antenna
- Cellular connectivity
- Technologies: LTE Cat M1, LTE Cat NB2, GSM/GPRS
- GSM: B2/B3/B5/B8
- LTE Cat M1 FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
- LTE Cat NB2 FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
- LTE Cat M1 data transfer: up to 588 kbps download, up to 1119 kbps upload
- LTE Cat NB2 data transfer: up to 127 kbps download, up to 158.5 kbps upload
- GPRS data transfer: up to 107 kbps download, up to 85.6 kbps upload
- SMS support in TEXT and PDU formats
- TCP protocol support
- Data codec: Codec 8 Extended
- Built-in high-gain cellular antenna
- SIM card format: Nano-SIM
- Power supply and interfaces
- Battery: Li-Po 1000 mAh, 3.7 V, 3.7 Wh
- Connector: USB 2.0 Type-C
- Internal memory: 128 MB Flash
- Motion sensor: accelerometer
- Multifunction button with alarm function
- Status indication: RGB LED
- Functions and configuration
- Movement-based location reporting
- Periodic location reporting
- Configurable operating schedule
- Power-saving modes: Online Sleep, Power Off Sleep
- Configuration and firmware updates: Teltonika Configuration Tool (TCT), FOTA WEB
- Configuration and diagnostics via SMS and GPRS commands
- Time synchronization: GNSS, NITZ, NTP
- Mechanical and environmental specifications
- Dimensions: 62.2 × 54.2 × 20.33 mm
- Weight: 71 g
- Ingress protection rating: IP65, based on the manufacturer's internal testing
- Operating temperature: -20°C to 60°C
- Battery charging temperature: 0°C to 45°C
- Operating humidity: 5% to 95%, non-condensing
- Compliance markings: CE RED, UKCA, E-Mark, RCM
Kit Includes
- Teltonika ATM700 tracker - 1 pc.
- USB-C cable - 1 pc.
- USB-C dust plug - 1 pc.
1210067
Data sheet
- Device Type
- GPS Tracker
- CAN
- none
- Cellular Network Standard
- 4G LTE Cat M1 / NB-IoT
- WiFi module
- No
- GNSS
- Yes
- Bluetooth module
- No
- Accelerometer
- Yes
- Built-in Battery
- Yes
- Mounting Method
- Other
- Tightness class
- IP65
