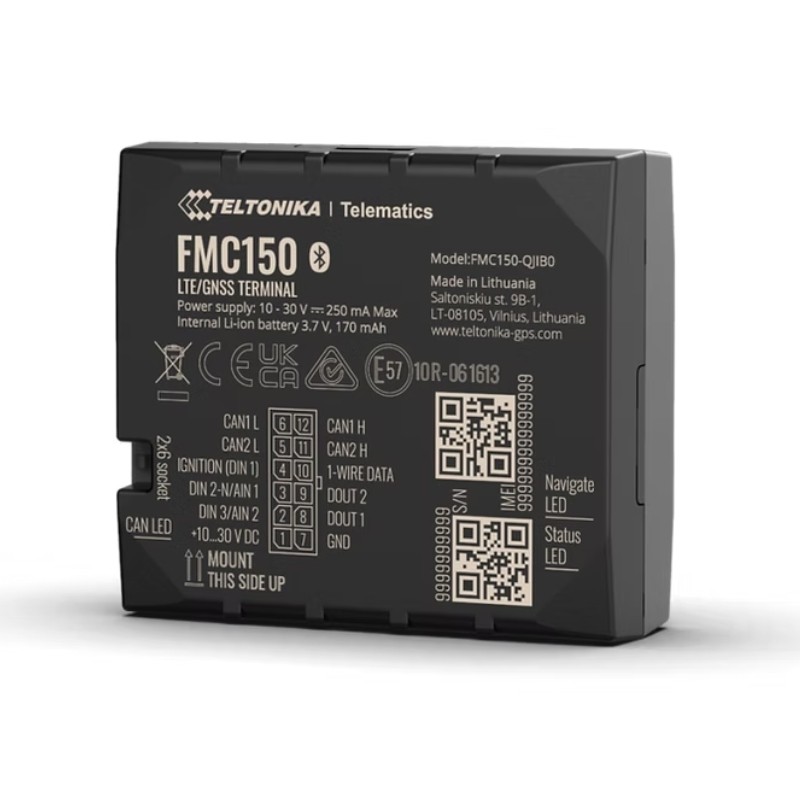

Teltonika FMC150 - GPS vehicle tracker LTE Cat 1 with GNSS
ID: 1205092
4779027310442
zł394.53
Tax included
zł320.76 tax excl.
GPS vehicle tracker with LTE Cat 1 connectivity, integrated CAN interface, GNSS support, and Bluetooth LE for fleet management and telematics applications. Teltonika FMC150-QJIB0
Description
Teltonika FMC150 is designed for vehicle tracking in fleet management, logistics, transportation, and car sharing services. LTE Cat 1 connectivity with fallback to 2G (GSM) enables data transmission in environments with varying coverage, while support for European LTE bands, including B20, ensures compatibility with regional infrastructure. The device integrates GNSS positioning and Bluetooth LE communication, enabling cooperation with external sensors.
The integrated CAN data processor allows reading vehicle parameters without additional adapters, including fuel level and consumption, mileage, speed, and engine-related data. Support for multiple GNSS systems (GPS, GLONASS, GALILEO, BEIDOU) provides positioning accuracy below 2.5 m CEP, while the built-in accelerometer enables detection of events such as crashes, towing, and overspeeding. The design combines a GPS tracker and CAN adapter in a single device, simplifying installation in passenger, commercial, and electric vehicles.
Features
- Quectel EG915U-EU modem – LTE Cat 1 with fallback to 2G
- LTE FDD bands: B1 / B3 / B7 / B8 / B20 / B28
- GNSS: GPS / GLONASS / GALILEO / BEIDOU / QZSS / AGPS
- GNSS sensitivity -165 dBm
- positioning accuracy < 2.5 m CEP
- Bluetooth 4.0 + LE
- integrated CAN processor (Teltonika TM2500)
- CAN data reading: fuel level, fuel consumption, mileage, speed, RPM, pedal position
- interfaces: 3x DI, 2x DO, 2x AI, 2x CAN, 1-Wire
- impulse inputs: 2
- negative input: 1
- data transmission: GPRS up to 240 kbps
- SIM card: Micro-SIM or eSIM
- internal memory 128 MB
- built-in battery 170 mAh (3.7 V)
- input voltage range 10–30 V DC
- integrated GNSS and GSM antennas
- USB Micro-USB interface
- dimensions 65 x 56.6 x 20.6 mm
- weight 55 g
- operating temperature from -40°C to +85°C
Kit includes
- FMC150 tracker
- Input/Output power supply cable 0.9 m
1205092
