ID: 1206224
4779027310558
zł75.25
Tax included

zł61.18 tax excl.

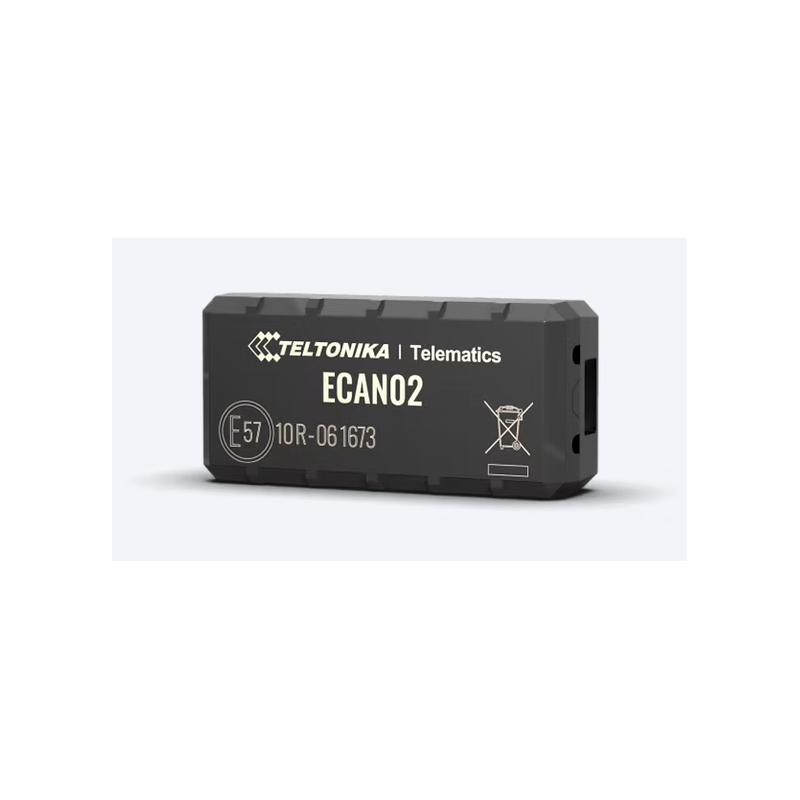

A contactless CAN adapter that allows you to read data from the vehicle's bus without interfering with the electrical system. Thanks to wire-through reading technology, it ensures safe installation and eliminates the risk of warranty voiding. The device automatically adjusts signal parameters and supports a wide range of CAN speeds, ensuring stable operation in a variety of vehicles. Its compact, durable housing and low power consumption make the adapter ideal for fleet monitoring systems. Teltonika ECAN02

24h
Available
Available quantity: 20

Description

ECAN02 is a modern CAN adapter that enables non-intrusive reading of CAN bus data without interfering with the vehicle’s electrical system. Thanks to this solution, users can monitor vehicle parameters without risking the manufacturer’s warranty, making it an ideal choice for fleets and new vehicles. The adapter uses innovative signal reading technology through CAN wire insulation, eliminating the need for physical connection to the installation. The device is designed for ease of installation – setup is quick and does not require specialized tools or advanced technical knowledge. Built-in LEDs allow immediate verification of proper installation and indicate data transmission activity. Its compact design and reinforced, durable housing ensure resistance to mechanical damage and long service life.

The adapter automatically adjusts signal level and transmission speed, enabling stable operation across various vehicle types and CAN systems. Support for a wide range of bus speeds makes it a versatile solution for many automotive applications. Powered directly from the vehicle’s electrical system, the device is always ready for operation without the need for additional power sources. Low power consumption allows for long-term use without affecting the vehicle’s electrical system. ECAN02 is compatible with many telematics devices, enabling integration into advanced fleet monitoring systems. It is a reliable solution for companies requiring safe, fast, and efficient access to vehicle data without interfering with its structure.

Features

  • Supported devices: LV-CAN200, ALL-CAN300, FMX650, FMB140, FMB240, FMX150, FMX250
  • CAN data reading: contactless, without damaging wires
  • Power supply: from vehicle electrical system
  • Reading method: via CAN bus wire insulation
  • Installation: quick and easy, no interference with wiring
  • CAN-BUS speed: from 33 to 1000 kb/s
  • Automatic signal and speed adjustment
  • LED indicators: operation and data transmission status
  • Reinforced, durable construction
  • Power supply: 10 to 30 V DC
  • Current consumption: < 1.7 mA (standby at 12 V)
  • Current consumption: < 7.5 mA (operating at 12 V)
  • Operating temperature: -40°C to +85°C
  • Operating humidity: max. 85% non-condensing
  • Dimensions: 39.0 x 19.0 x 12.0 mm
  • Weight: 16.1 g
1206224
