zł85.28 tax excl.
USB - LIN bus converter module. It allows you to connect devices to your computer via the LIN bus. LIN USB CONVERTER (LUC)
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description

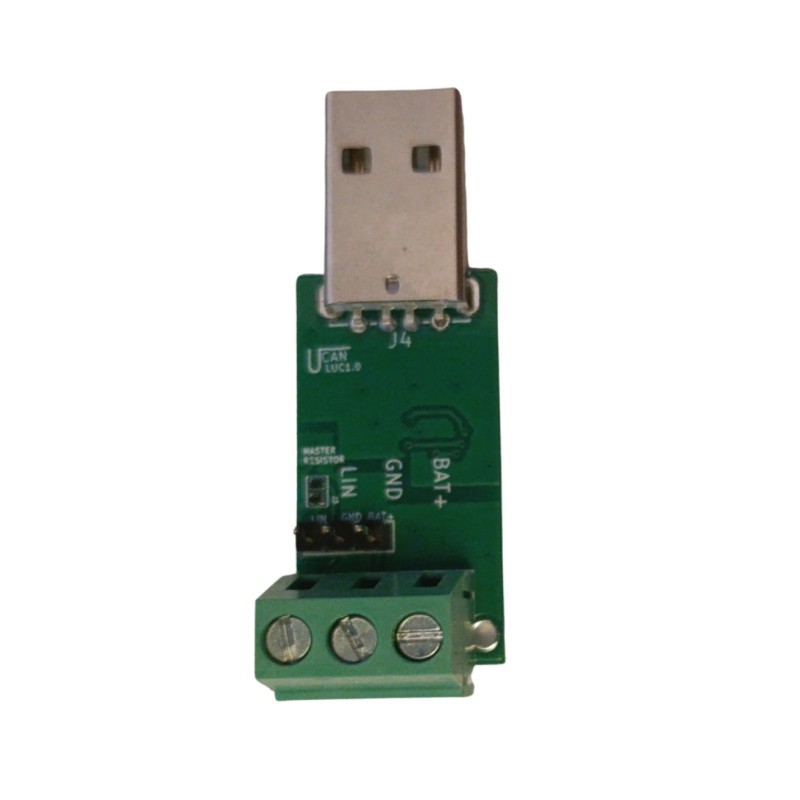

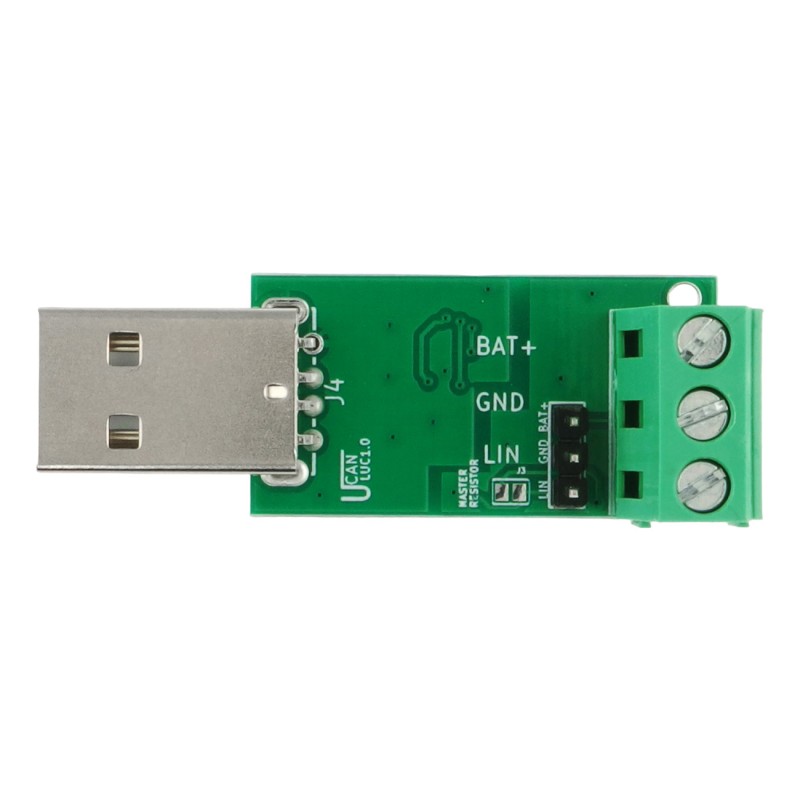

USB - LIN bus converter module based on STM32F042G4 microcontroller and LIN TJA1028 transmitter. It has a built-in voltage regulator and optical isolation for LIN bus. It allows you to connect devices to your computer via the LIN bus. The converter has a USB type A connector and a screw socket. Through the computer it is visible as a COM port and works with standard terminals.
Full documentation and additional software is available in the product repository.
Connector description:
- BAT + - 5V power supply
- GND - Power supply mass
- LIN - LIN bus communication line
Features
- LIN 2.1 support
- Monitor mode, for all frame reception, and sending single frames.
- Master mode, with up to 15 frame slots
- Slave mode, with up to 15 frame slots
- 19200/9600 option baud rate
- Optical isolation for LIN
- External 4.5 V to 28 V is needed for LIN network
- Device size is 31x18 mm (without USB connector)
- Termination resistors controlled by software
- USB dfu compatible bootloader for new software
- SLCAN compatible, works with LINUX socket-can and some of CAN-utils
