A compact edge AI computer for robotics and autonomous systems, powered by an NVIDIA Jetson Orin Nano 8GB module offering up to 67 TOPS of processing power. The platform utilizes a 6-core Arm Cortex-A78AE processor and an NVIDIA Ampere GPU with 1024 CUDA cores and 32 Tensor cores, providing efficient processing of AI and image analysis algorithms. GMSL2 camera support enables connection to a wide range of industrial vision systems with high throughput and low latency. The device offers multiple communication interfaces, a wide power range from 19 to 54 VDC, and an industrial design adapted to work in demanding environments. Seeed Studio 100001302

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

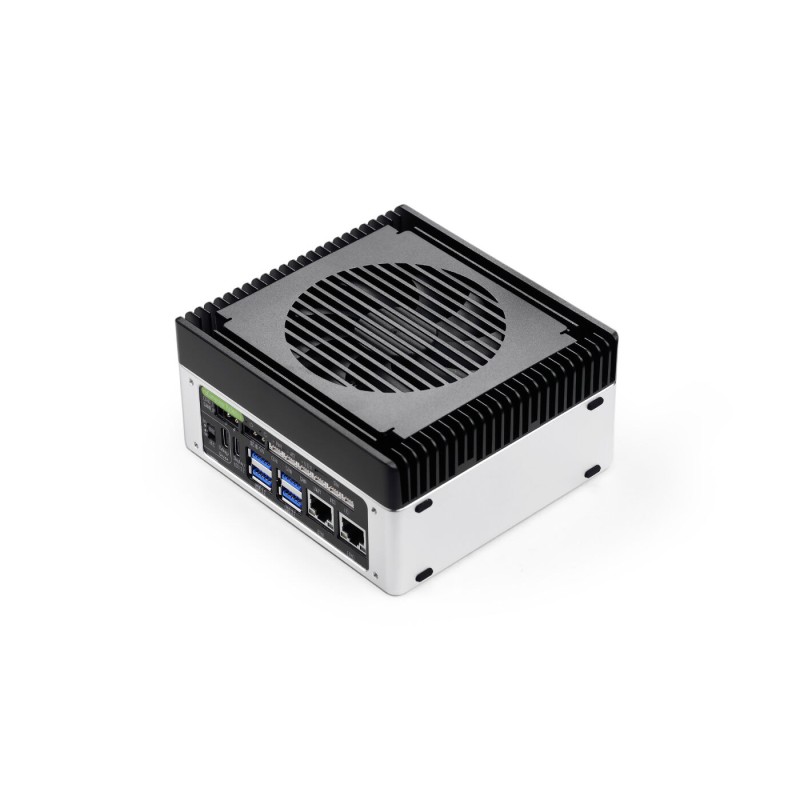

reComputer Robotics J3011 with GMSL expansion is a compact Edge AI computer designed for advanced robotics applications, autonomous systems, and industrial solutions requiring real-time data processing. The device is equipped with the NVIDIA Jetson Orin Nano 8GB module, which delivers high artificial intelligence computing performance of up to 67 TOPS in MAXN mode. This allows the computer to act as the central “brain” of a robot, responsible for analyzing data from multiple sensors, cameras, and control systems. The platform is factory-prepared for operation thanks to the preinstalled JetPack 6.2 and Linux BSP environment, enabling quick startup and integration with robotic systems. Support for GMSL2 cameras allows connection of multiple industrial cameras and vision systems with high transmission bandwidth and low latency. This solution is particularly useful in applications such as autonomous robots, AMR mobile robots, logistics robots, and collaborative robots.


The powerful NVIDIA Ampere GPU with 1024 CUDA cores and 32 Tensor cores enables acceleration of artificial intelligence algorithms, including object recognition, image analysis, spatial mapping, and navigation systems. The 6-core Arm Cortex-A78AE processor provides significant computing power while maintaining high energy efficiency. This allows the computer to simultaneously handle multiple data analysis processes and robotic control tasks. The device offers a rich set of communication interfaces, including 6 USB 3.2 ports, two Gigabit Ethernet ports, CAN, UART, and I2C buses. This enables connection of various sensors, communication modules, cameras, and actuators. M.2 slots allow installation of Wi-Fi, Bluetooth, or 5G modules, enabling system integration with networks and remote robot management.

The rugged industrial design allows operation within a wide temperature range from -20°C to 60°C in 25 W mode and up to 55°C in MAXN mode. The wide input power range of 19 to 54 V DC allows the computer to be used in mobile robots, autonomous vehicles, and industrial systems. An aluminum enclosure with a heatsink and fan ensures effective heat dissipation during intensive computing tasks. reComputer Robotics J3011 provides a complete hardware platform for robotics projects and edge AI systems. Thanks to its high computing performance, wide range of interfaces, and ready-to-use development environment, it enables rapid development of advanced automation, robotics, and intelligent industrial solutions.

Features

  • Module: NVIDIA Jetson Orin™ Nano 8GB
  • AI performance: Orin Nano 8GB – 67 TOPS (MAXN)
  • GPU: 1024-core NVIDIA Ampere architecture with 32 Tensor cores
  • Maximum GPU frequency: 1020 MHz (MAXN_SUPER)
  • CPU: 6-core Arm® Cortex®-A78AE
  • Maximum CPU frequency: 1.7 GHz (MAXN_SUPER)
  • Memory: 8GB LPDDR5, 128-bit bus (up to 68 GB/s; 102 GB/s in MAXN_SUPER mode)
  • Power consumption modes: 7W / 15W / 25W
  • Video encoding: 1080p30 supported by 1–2 CPU cores
  • Video decoding: 1× 4K60 (H.265), 2× 4K30 (H.265), 5× 1080p60 (H.265), 11× 1080p30 (H.265)
  • CSI camera support: up to 4 cameras (8 via virtual channels)
  • Camera interface: 8 lanes MIPI CSI-2, D-PHY 2.1 (up to 20 Gb/s)
  • Module dimensions: 69.6 mm × 45 mm
  • Module connector: 260-pin SO-DIMM
  • Storage: 1× M.2 KEY M PCIe
  • Network: 2× Gigabit Ethernet (RJ-45)
  • Expansion slots: 1× M.2 Key E (WiFi/Bluetooth), 1× M.2 Key B (5G module)
  • USB ports: 6× USB 3.2 Type-A (5 Gb/s)
  • USB Type-C: 1× USB 3.0 Type-C (Host / DP 1.4)
  • USB Type-C (device mode): 1× USB 2.0 Type-C (for programming / debugging)
  • CAN bus: 2× CAN0 (XT30(2+2)), 3× CAN1 (4-pin GH-1.25 connector)
  • Video output: 1× DisplayPort 1.4 (Type-C Host)
  • UART: 1× UART (4-pin GH-1.25 connector)
  • I2C: 2× I2C (4-pin GH-1.25 connectors)
  • Fan connectors: 1× 4-pin 5V PWM, 1× 4-pin 12V PWM
  • Expansion port: 1× camera expansion connector (for the GMSL2 board – included)
  • RTC: 1× RTC 2-pin connector, 1× RTC socket
  • LED indicators: 3× LED (PWR, ACT, user LED)
  • Buttons: 1× PWR, 1× RESET
  • DIP switch: 1× REC
  • Antenna openings: 5
  • Power supply: 19–54V DC via XT30(2+2) connector (XT30 to DC 5525 cable included)
  • Operating system: Jetpack 6.2
  • Dimensions: 115 × 115 × 38 mm
  • Weight: 200 g

Kit contains

  • Jetson Orin Nano 8GB module
  • Seeed Carrier Board (reComputer Robotics J401) with GMSL expansion
  • 128GB NVMe SSD
  • Aluminum enclosure with heatsink and fan
  • USB Type-A to Type-C cable
  • XT30 to DC power cable
