Edge AI baseboard for NVIDIA Jetson Orin Nano and Orin NX modules, offering up to 157 TOPS of compute power in Super and MAXN modes. A rich set of interfaces, including dual Gigabit Ethernet ports, USB 3.2, HDMI 2.1, MIPI CSI, CAN, M.2, and mini-PCIe connectors, enables easy integration into advanced vision and industrial systems. Configurable power modes from 10W to 40W and an advanced thermal design ensure stable operation under heavy load. Seeed Studio 100090211

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

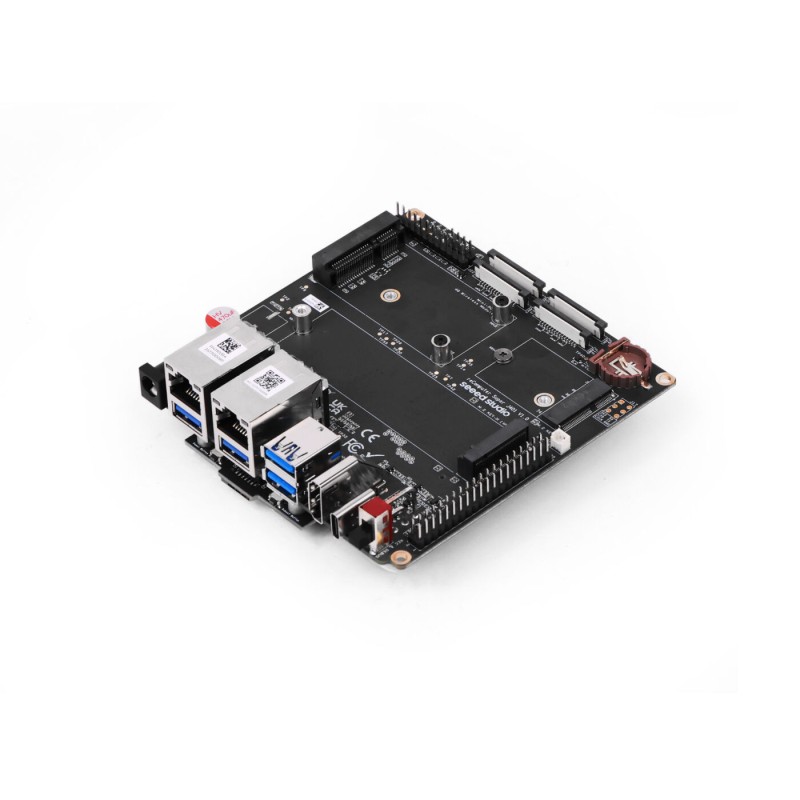

reComputer Super J401 is a modern and compact Edge AI baseboard specifically designed to work with NVIDIA Jetson Orin Nano and Jetson Orin NX modules. The device supports Super and MAXN modes, enabling computational performance of up to 157 TOPS. This makes it ideal for advanced artificial intelligence applications. The board is designed for rapid development, prototyping, and deployment of production solutions. Its compact design allows easy integration into systems with limited installation space.

reComputer Super J401 is characterized by high operational stability even in demanding environmental conditions. A wide operating temperature range from -20°C to 65°C enables use in industrial and outdoor applications. An advanced thermal design ensures reliable operation under high computational loads. Users can configure power modes ranging from 10 W to 40 W, allowing optimization of energy consumption.


The board offers a rich set of communication interfaces and expansion options. Two Gigabit Ethernet ports provide stable and high-speed data transmission. Four USB 3.2 ports allow connection of cameras, storage devices, and peripherals. An HDMI 2.1 connector supports modern high-resolution displays. Four MIPI CSI connectors enable simultaneous connection of multiple cameras for vision applications. Support for the CAN interface allows integration with automation and robotics systems. reComputer Super J401 supports wireless connectivity via Wi-Fi, Bluetooth, and LTE. A mini-PCIe socket and SIM card slot enable 4G cellular communication. M.2 Key M and Key E connectors allow expansion of storage and wireless interfaces.

The board is compatible with popular AI frameworks such as NVIDIA Isaac, ROS1, ROS2, and Hugging Face. This facilitates rapid development of applications in robotics, video analytics, and multimodal perception. The solution is well suited for AMR systems, smart retail, industrial automation, and video surveillance.

Features

  • Compatibility with NVIDIA Jetson Orin Nano and Orin NX (Super/MAXN modes)
  • AI computing performance up to 157 TOPS
  • 2 × Gigabit Ethernet (RJ45)
  • 4 × USB 3.2 Type-A (5 Gbps), 1 × USB 2.0 Type-C (Device/Debug)
  • 4 × MIPI CSI (2-lane, 15-pin) for cameras
  • 1 × HDMI 2.1
  • LTE 4G support via mini-PCIe
  • M.2 Key M (SSD) and M.2 Key E (Wi-Fi/Bluetooth) connectors
  • CAN interface (4-pin)
  • Expansion headers: 40-pin header and 12-pin UART/Control
  • Fan connectors: 5V PWM and 12V PWM
  • RTC socket and 2-pin RTC connector
  • 2 × LEDs: PWR and ACT
  • 2 × buttons: PWR and RESET
  • REC switch
  • Configurable power modes: 10 W to 40 W
  • Stable operation over a wide temperature range: -20°C to 65°C
  • Power supply: 12 to 19 V DC (5525 jack)
  • Dimensions: 71 × 136 × 8.5 mm
  • Certifications: RoHS, REACH, CE, FCC, KC

Kit contains

  • reComputer Super J401 baseboard
  • SIM board
  • 5 × M3 standoff
  • 5 × M3 screw
