Development kit based on the Jetson Orin NX 8GB module with dual Ethernet, JETSON-ORIN-IO-BASE-B base board, 256GB NVMe SSD, and WiFi/Bluetooth card, designed for embedded systems and edge AI applications. Waveshare JETSON-ORIN-NX-8G-ETH-DEV-KIT (EU)

6 weeks
On request
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Waveshare 33179 is a development kit intended for designing and testing embedded systems and edge AI applications, based on the Jetson Orin NX 8GB module. The kit uses the JETSON-ORIN-IO-BASE-B base board, providing access to a wide range of communication, vision, and multimedia interfaces, enabling integration with peripheral devices, CSI cameras, NVMe storage, as well as wired and wireless networking.

The integrated Jetson Orin NX module delivers high AI computing performance based on the NVIDIA Ampere GPU architecture with Tensor Cores, along with hardware DLA and PVA accelerators. The kit is supplied as a DEV KIT, including a 256GB NVMe SSD, dual-band WiFi with Bluetooth 5.0, active cooling, and a complete set of accessories for quick platform bring-up.

The solution is designed for applications such as image and video analytics, vision systems, robotics, industrial automation, intelligent infrastructure, edge computing, and prototyping AI-based devices.

The base board provides a total of 7 USB ports, including 4 USB Type-A connectors, 1 USB Type-C port and 2 USB 2.0 FFC connectors, enabling connection of multiple peripheral devices.

High-speed data transfer up to 10 Gb/s via USB 3.2 Gen 2 and system flashing using the Type-C port.

USB Ports
Camera CSI

The base board enables connection of two CSI cameras, expanding the system with vision interfaces used in AI applications.

Such as face recognition, road sign detection, lane line analysis, and license plate recognition.

The kit supports 4K high-definition video output using the DisplayPort interface.

Allowing connection of an external monitor and operation with graphics applications, data visualization, and vision systems.

4K
NVIDIA

The platform supports NVIDIA Isaac, Riva, and Metropolis environments.

Enabling development of applications for robotics, image analysis, speech recognition, and smart city systems based on real-time data processing.

                                                                                                                                Onboard resources


Features

  • Compute Module
    • Module model: Jetson Orin NX
    • RAM: 8GB LPDDR5
    • Memory bus: 128-bit
    • Memory bandwidth: 102.4GB/s
    • Module connector: 260-pin SO-DIMM
  • AI Performance
    • AI performance: up to 117 TOPS (SUPER version)
    • GPU: NVIDIA Ampere
    • GPU cores: 1024
    • Tensor Cores: 32
    • Max GPU frequency: 1173MHz
    • DLA accelerators: 1 × NVIDIA DLA v2
    • Max DLA frequency: 1230MHz
    • Vision accelerator: 1 × PVA v2
  • Processor
    • CPU: 6-core Arm Cortex-A78AE v8.2 64-bit
    • Cache: 1.5MB L2 + 4MB L3
    • Max CPU frequency: 2GHz
  • Base Board & Interfaces
    • Base board model: JETSON-ORIN-IO-BASE-B
    • PCIe:
      •  1 × PCIe x4 Gen4
      •  3 × PCIe x1 Gen4
    • USB interfaces:
      •  3 × USB 3.2 Gen 2 (up to 10Gb/s)
      •  3 × USB 2.0
      •  2 × USB 2.0 FFC connectors
      •  1 × USB Type-C (system programming)
  • Total USB ports: 7
  • Camera Support
    • Interface: MIPI CSI-2
    • Lanes: 8
    • Camera support: up to 4 cameras (up to 8 with virtual channels)
    • D-PHY standard: 1.2
    • Bandwidth: up to 20Gb/s
  • Video & Display
    • Display output: DisplayPort 1.4a
    • Supported modes:
      •  up to 8K @ 30Hz
    • Video encoding:
      •  1 × 4K60 H.265
      •  3 × 4K30 H.265
      •  6 × 1080p60 H.265
    • Video decoding:
      •  1 × 8K30 H.265
      •  2 × 4K60 H.265
      •  4 × 4K30 H.265
  • Networking
    • Ethernet:
      •  1 × RJ45 2.5G Ethernet
      •  1 × RJ45 Gigabit Ethernet
    • Wireless:
      •  Dual-band WiFi
      •  Bluetooth 5.0
    • Antennas: 2 × PCB antennas
  • Storage
    • Included storage: 256GB NVMe SSD
    • Additional storage support: NVMe (M.2)
  • Power
    • Power profiles: 10W / 15W / 25W / 40W
  • Additional Interfaces
    • UART: 3
    • SPI: 2
    • I2S: 2
    • I2C: 4
    • CAN: 1
    • Audio: DMIC, DSPK
    • GPIO: available
    • PWM: available
  • Dimensions
    • Jetson Orin NX module dimensions: 69.6 × 45mm

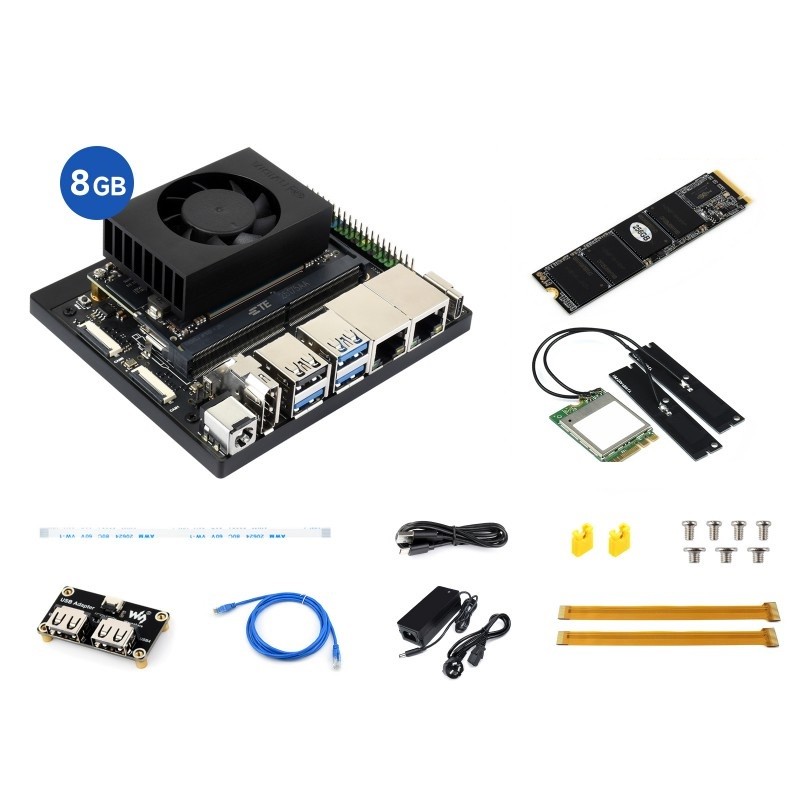

Kit includes

  • 1× Jetson Orin NX module (8GB variant)
  • 1× JETSON-ORIN-IO-BASE-B base board
  • 1× Cooling fan
  • 1× 256GB NVMe SSD (pre-installed)
  • 1× WiFi/Bluetooth wireless network card (pre-installed)
  • 1× 6-pin FFC cable ~10cm
  • 1× USB Type-A to Type-C cable ~1m
  • 1× Jumper set (2 pcs)
  • 1× Screw pack
  • 1× USB expansion board
  • 1× Ethernet network cable ~1.5m
  • 1× Power adapter (EU)
  • 2× CSI camera FPC cables ~15cm
