Development kit based on the Jetson Orin NX 16GB module with dual Ethernet, JETSON-ORIN-IO-BASE-B base board, 256 GB NVMe SSD, and WiFi/Bluetooth card, designed for embedded systems and edge AI applications. Waveshare JETSON-ORIN-NX-16G-ETH-DEV-KIT (EU)

6 weeks
On request
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Waveshare 33181 is a development kit intended for designing and testing embedded systems and edge AI applications, based on the Jetson Orin NX 16GB module. The kit uses the JETSON-ORIN-IO-BASE-B base board, which provides a wide range of communication and multimedia interfaces, enabling integration with peripheral devices, CSI cameras, NVMe storage, and both wired and wireless networking.

The Jetson Orin NX module delivers high AI computing performance, based on the NVIDIA Ampere GPU architecture with Tensor Cores, as well as DLA and PVA accelerators. The kit is supplied as a DEV KIT, including a 256 GB NVMe SSD, a dual-band WiFi network card with Bluetooth 5.0, a cooling system, and a complete set of accessories required to start working with the platform.

The solution is intended for applications such as image and video analysis, vision systems, robotics, industrial automation, intelligent infrastructure, edge computing, and prototyping of AI-based devices.

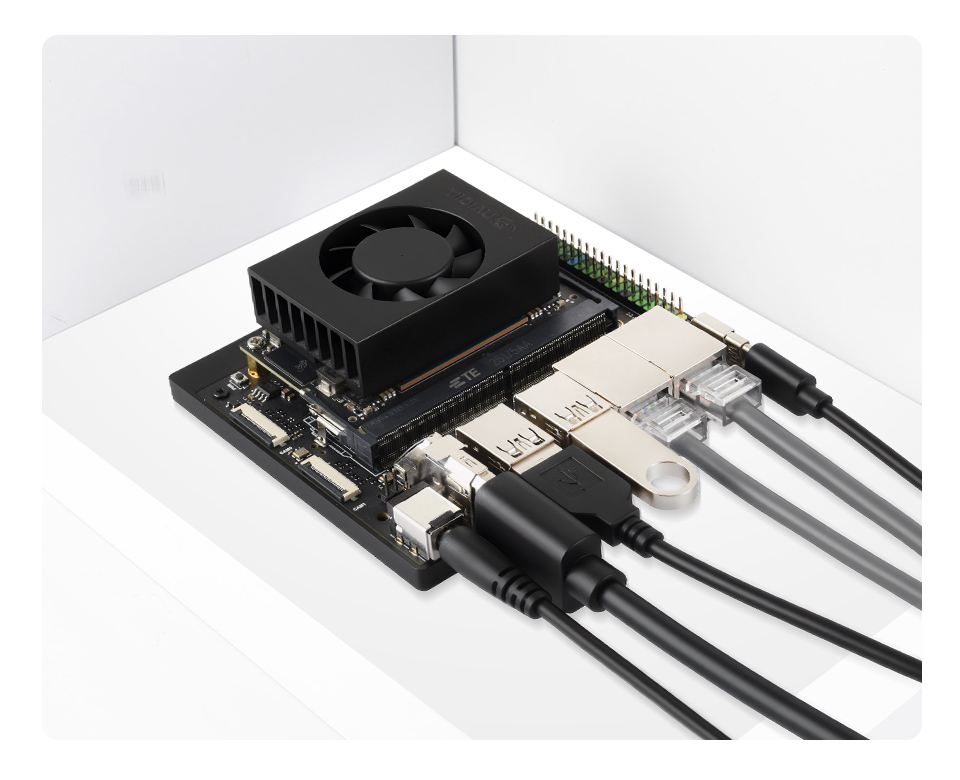

The base board provides a total of 7 USB ports, including 4 USB Type-A connectors, 1 USB Type-C port, and 2 USB 2.0 FFC connectors, enabling connection of multiple peripheral devices.

High-speed data transfer up to 10 Gb/s via USB 3.2 Gen 2 and system flashing using the Type-C port.

USB Ports



Camera CSI

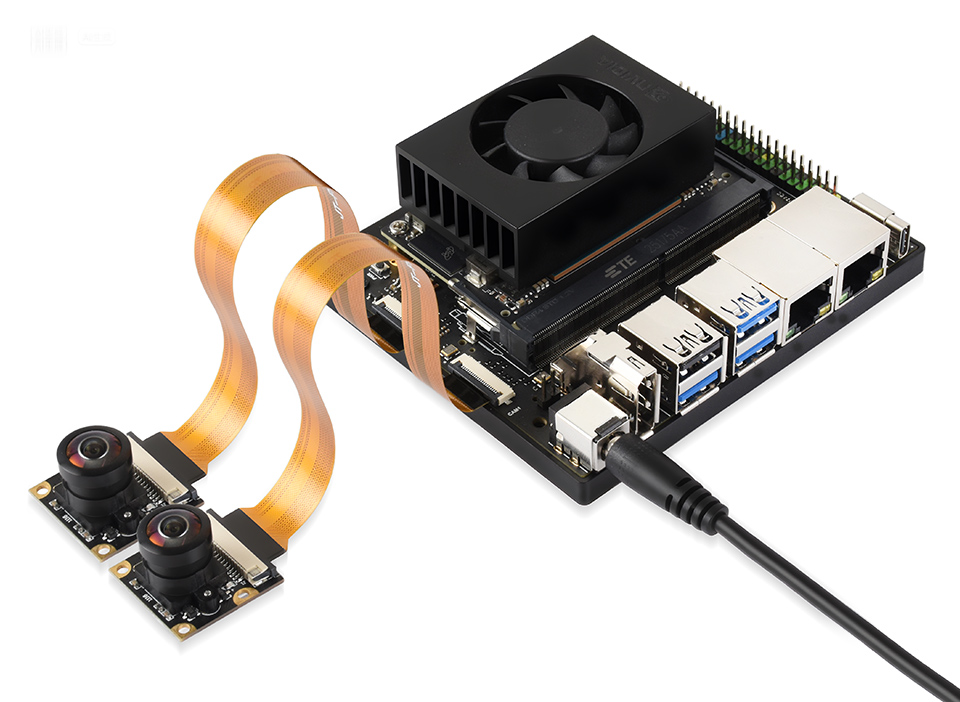

The base board enables connection of two CSI cameras, expanding the system with vision interfaces used in AI applications.

Such as face recognition, road sign detection, lane line analysis, and license plate recognition.

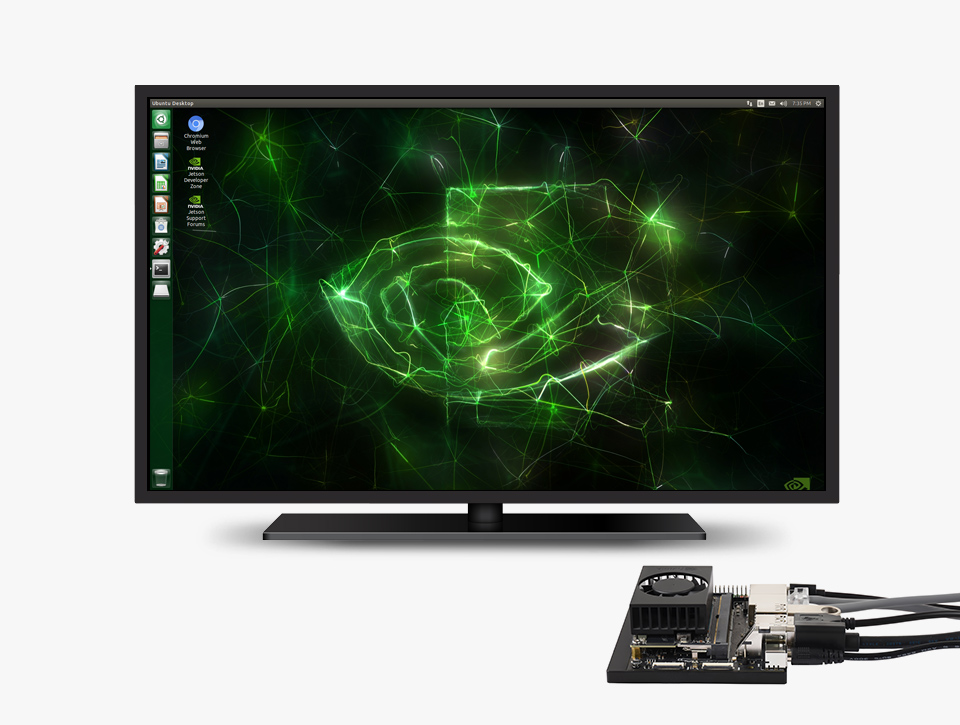

The kit supports 4K high-definition video output using the DisplayPort interface.

Allowing connection of an external monitor and operation with graphics applications, data visualization, and vision systems.

4K
NVIDIA

The platform supports NVIDIA Isaac, Riva, and Metropolis environments.

Enabling development of applications for robotics, image analysis, speech recognition, and smart city systems based on real-time data processing.

                                                                                                                                Onboard resources


Features

  • Compute Module
    • Module model: Jetson Orin NX
    • RAM: 16 GB LPDDR5
    • Memory bus: 128-bit
    • Memory bandwidth: 102.4 GB/s
    • Module connector: 260-pin SO-DIMM
  • AI Performance
    • AI performance: up to 157 TOPS (SUPER version)
    • GPU: NVIDIA Ampere
    • GPU cores: 1024
    • Tensor Cores: 32
    • Maximum GPU frequency: 1173 MHz
    • DLA accelerators: 2 x NVIDIA DLA v2
    • Maximum DLA frequency: 1230 MHz
    • Vision accelerator: 1 x PVA v2
  • Processor
    • CPU: 8-core Arm Cortex-A78AE v8.2 64-bit
    • Cache memory: 2 MB L2 + 4 MB L3
    • Maximum CPU frequency: 2 GHz
  • Base Board and Interfaces
    • Base board model: JETSON-ORIN-IO-BASE-B
    • PCIe interface:
      • 1 x PCIe x4 Gen4
      • 3 x PCIe x1 Gen4
    • USB interfaces:
      • 3 x USB 3.2 Gen 2 (up to 10 Gbps)
      • 3 x USB 2.0
      • 2 x USB 2.0 FFC connectors
      • 1 x USB Type-C (system flashing)
    • Total number of USB ports: 7
  • Camera Support
    • Interface: MIPI CSI-2
    • Number of lanes: 8
    • Camera support: up to 4 cameras (up to 8 via virtual channels)
    • D-PHY standard: 1.2
    • Bandwidth: up to 20 Gbps
  • Video and Display
    • Video output: DisplayPort 1.4a
    • Supported modes:
      • up to 8K at 30 Hz
    • Video encoding:
      • 1 x 4K60 H.265
      • 3 x 4K30 H.265
      • 6 x 1080p60 H.265
    • Video decoding:
      • 1 x 8K30 H.265
      • 2 x 4K60 H.265
      • 4 x 4K30 H.265
  • Networking
    • Ethernet:
      • 1 x RJ45 2.5G Ethernet
      • 1 x RJ45 Gigabit Ethernet
    • Wireless networking:
      • Dual-band WiFi
      • Bluetooth 5.0
    • Antennas: 2 x PCB antenna
  • Mass Storage
    • Included drive: NVMe SSD 256 GB
    • Additional storage support: NVMe (M.2)
  • Power and Consumption
    • Power profiles: 10 W / 15 W / 25 W / 40 W
  • Additional Interfaces
    • UART: 3
    • SPI: 2
    • I2S: 2
    • I2C: 4
    • CAN: 1
    • Audio: DMIC, DSPK
    • GPIO: available
    • PWM: available
  • Dimensions
    • Jetson Orin NX module dimensions: 69.6 x 45 mm

Kit Includes

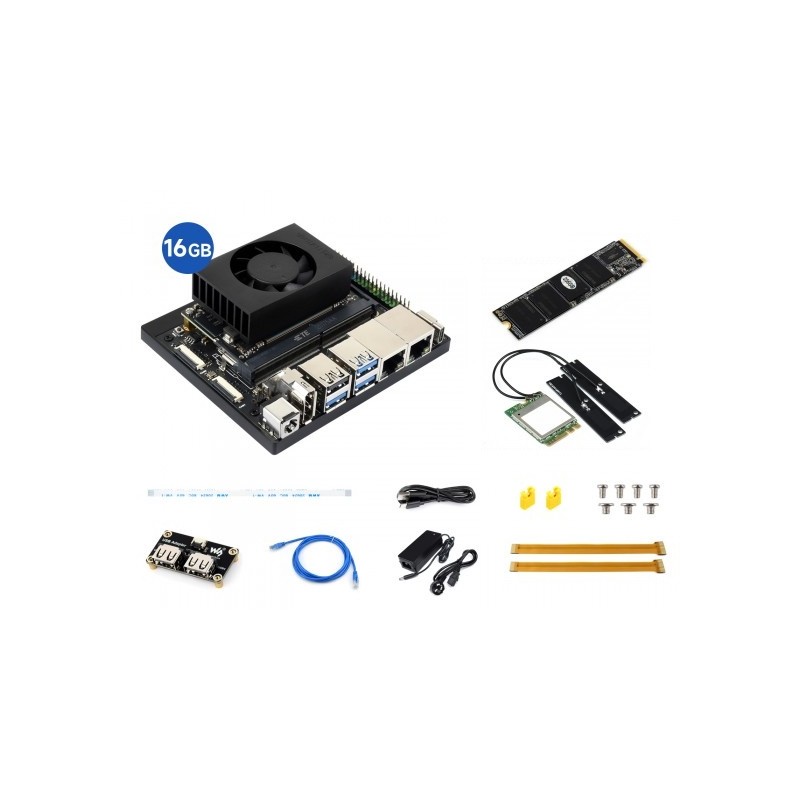

  • 1x Jetson Orin NX module (16GB variant)
  • 1x JETSON-ORIN-IO-BASE-B base board
  • 1x Cooling fan
  • 1x NVMe SSD 256 GB (pre-installed)
  • 1x WiFi/Bluetooth wireless network card (pre-installed)
  • 1x 6-pin FFC cable approx. 10 cm
  • 1x USB Type-A to Type-C cable approx. 1 m
  • 1x Jumper set (2 pcs.)
  • 1x Mounting screw set
  • 1x USB expansion board
  • 1x Ethernet network cable approx. 1.5 m
  • 1x Power adapter (EU)
  • 2x CSI camera FPC cable approx. 15 cm
