An edge AI computer based on the NVIDIA Jetson Orin NX 16GB module, offering up to 157 TOPS of processing power for advanced robotic and vision applications. The platform utilizes an 8-core Arm Cortex-A78AE processor and an NVIDIA Ampere GPU with 1024 CUDA cores and 32 Tensor Cores, delivering high performance for AI and image processing tasks. The GMSL2 extension supports multiple industrial cameras with high throughput and low latency. The device offers a rich set of communication interfaces, a 19-54 VDC power supply, and a robust, active-cooling enclosure, enabling applications in mobile robotics and industrial systems. Seeed Studio 100026552

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

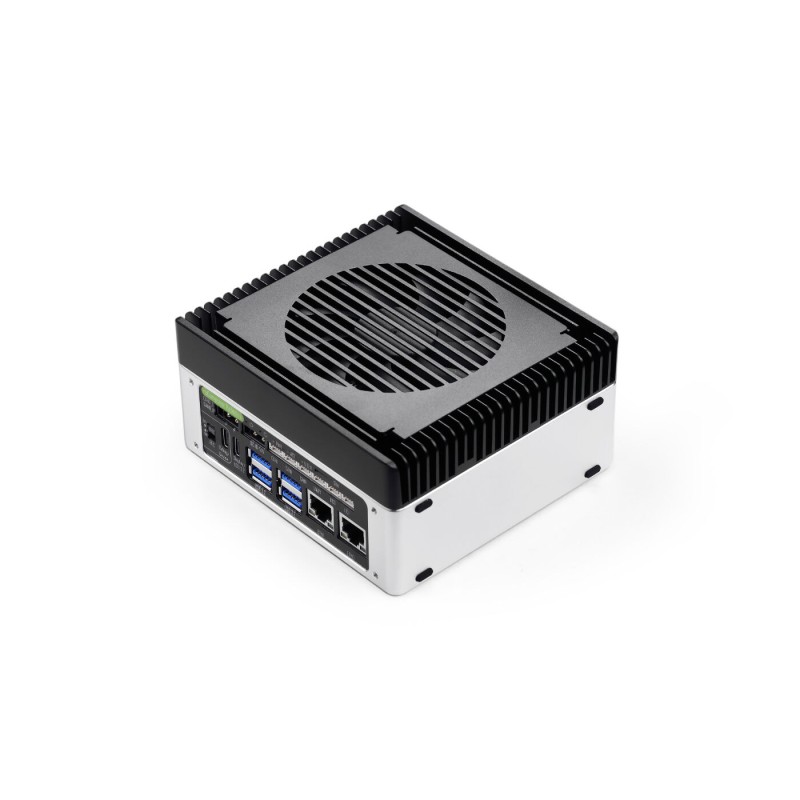

reComputer Robotics J4012 with GMSL expansion is an advanced Edge AI computer designed for demanding robotics applications and AI-based vision systems. The device is based on the NVIDIA Jetson Orin NX 16GB module, which in Super/MAXN mode delivers impressive computing performance of up to 157 TOPS. This makes the platform ideal for applications requiring intensive data processing, such as autonomous robots, machine perception systems, and real-time image analysis. The computer utilizes the NVIDIA Ampere GPU architecture with 1024 CUDA cores and 32 Tensor cores, enabling efficient processing of machine learning and deep learning algorithms. A powerful 8-core Arm Cortex-A78AE processor clocked up to 2.0 GHz ensures stable operation even in the most demanding computing tasks.


The J4012 model is equipped with a GMSL2 expansion, allowing direct support for multiple high-bandwidth industrial GMSL cameras with low transmission latency. This makes the device ideal for building vision systems for mobile robots, humanoid robots, and industrial manipulators. The platform also supports 3D cameras such as the Orbbec Gemini 335LG, enabling precise depth perception and environmental awareness. A rich set of interfaces includes USB 3.2, Ethernet, CAN, UART, I2C, and M.2 connectors for 5G, Wi-Fi, and Bluetooth modules, allowing easy integration with numerous sensors and communication systems.

The computer offers a wide input power range of 19 to 54 V DC, allowing operation in both mobile systems and industrial installations. A durable aluminum enclosure with heatsink and fan ensures efficient cooling and stable operation in temperatures ranging from -20°C to 60°C. The preinstalled JetPack 6.2 with Linux BSP enables quick deployment of AI applications and access to the NVIDIA Isaac platform for developing autonomous robots. With its compact dimensions and the possibility of desktop or wall mounting, the reComputer Robotics J4012 serves as a powerful and versatile “brain” for modern robotic systems.

Features

  • Module: NVIDIA Jetson Orin NX 16GB
  • AI performance: 157 TOPS (MAXN mode)
  • Graphics processor (GPU): 1024-core NVIDIA Ampere architecture with 32 Tensor cores
  • Maximum GPU frequency: 1173 MHz
  • Processor (CPU): 8-core NVIDIA Arm® Cortex-A78AE v8.2 64-bit (2 MB L2 + 4 MB L3)
  • Maximum CPU frequency: 2.0 GHz
  • DL accelerator: 2 × NVDLA v2.0
  • Maximum DL frequency: 1.23 GHz
  • Vision accelerator: 1 × PVA v2.0
  • Memory: 16 GB, 128-bit LPDDR5 DRAM, bandwidth 102.4 GB/s
  • Power modes: 10 W / 15 W / 25 W / 40 W
  • Video encoding: 1× 4K60 (H.265), 3× 4K30 (H.265), 6× 1080p60 (H.265), 12× 1080p30 (H.265)
  • Video decoding: 1× 8K30 (H.265), 2× 4K60 (H.265), 4× 4K30 (H.265), 9× 1080p60 (H.265), 18× 1080p30 (H.265)
  • Camera support: up to 4 cameras (8 via virtual channels), 8 lanes MIPI CSI-2, D-PHY 2.1 (up to 20 Gb/s)
  • Module dimensions: 69.6 mm × 45 mm
  • Module connector: 260-pin SO-DIMM

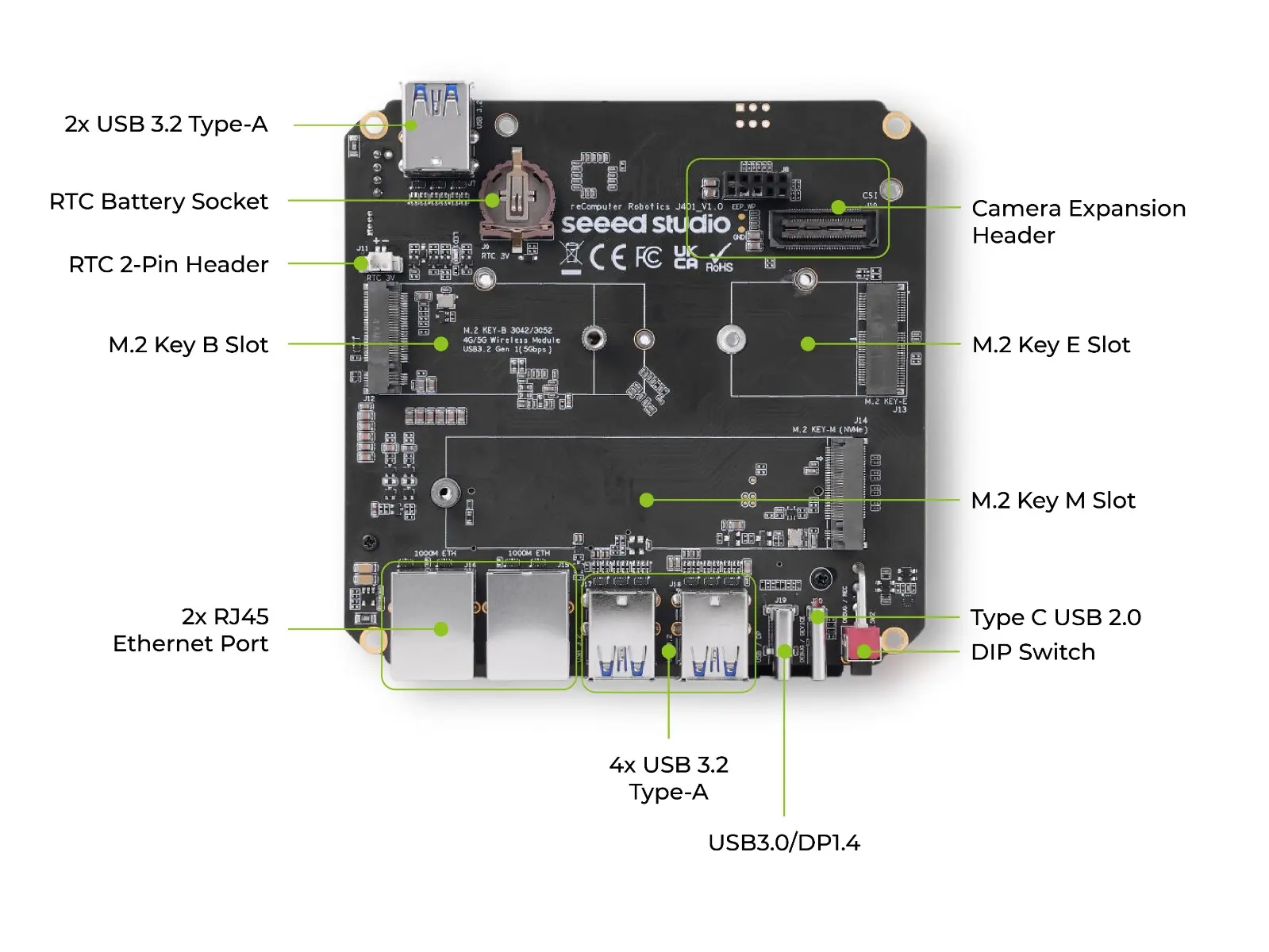

  • Storage: 1× M.2 Key M PCIe
  • Wireless connectivity: 1× M.2 Key E for WiFi/Bluetooth module, 1× M.2 Key B for 5G module
  • Wired networking: 2× RJ-45 Gigabit Ethernet
  • USB: 6× USB 3.2 Type-A (5 Gb/s), 1× USB 3.0 Type-C (Host / DP 1.4), 1× USB 2.0 Type-C (device mode – reflash/debug)
  • CAN bus: 2× CAN0 (XT30 2+2), 3× CAN1 (4-pin GH-1.25 connector)
  • Video output: 1× DisplayPort 1.4 (Type-C Host)
  • UART: 1× 4-pin GH-1.25 connector
  • I2C: 2× 4-pin GH-1.25 connector
  • Fan connectors: 1× 4-pin 5 V PWM, 1× 4-pin 12 V PWM
  • Expansion port: 1× camera expansion connector (for the GMSL2 board – included)
  • RTC: 1× 2-pin, 1× RTC socket
  • LED indicators: 3× (PWR, ACT, user LED)
  • Buttons: 1× power (PWR), 1× reset (RESET)
  • DIP switch: 1× REC
  • 5 × antenna connectors
  • Input power: 19 to 54 V DC (XT30 2+2, XT30 to 5525 DC cable included)
  • JetPack version: JetPack 6.2
  • Device dimensions (W × D × H): 115 mm × 115 mm × 38 mm
  • Weight: 200 g

Kit contains

  • Jetson Orin NX 16GB module
  • Seeed Carrier Board (reComputer Robotics J401) with GMSL expansion
  • 128 GB NVMe SSD
  • Aluminum enclosure with heatsink and fan
  • USB Type-A to Type-C cable
  • XT30 to DC cable
