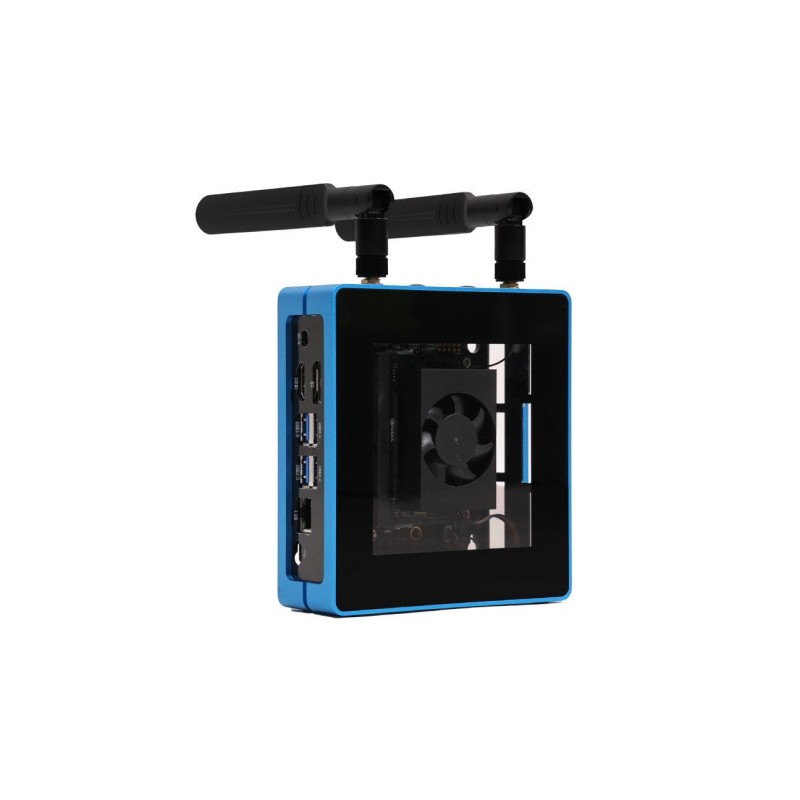

Jetson SUB Mini PC V2 uses the NVIDIA® Jetson Xavier™ NX 8GB module, delivering up to 21 TOPS of AI performance, together with the reComputer J202 carrier board and its extensive set of interfaces. The computer features a 128GB NVMe SSD, WiFi, Gigabit Ethernet, four USB 3.1 ports, HDMI, DisplayPort, M.2 slots and a 40-pin GPIO header. The aluminum enclosure with a heatsink and fan provides active cooling during AI workloads. Seeed Studio 110061461

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Jetson SUB Mini PC V2 uses an NVIDIA® Jetson Xavier™ NX 8GB module with a 6-core NVIDIA Carmel ARMv8.2 CPU. The platform delivers up to 21 TOPS (INT8) of AI performance, enabling AI models and algorithms to run locally at the edge.

Parallel processing is handled by a 384-core NVIDIA Volta GPU. The module features 8GB LPDDR4x memory with a bandwidth of 59.7GB/s and 16GB eMMC 5.1 storage. The computer uses the reComputer J202 carrier board and an aluminum enclosure measuring 130 x 120 x 50 mm. The system can be used in machine vision, robotics, automation and Edge AI applications.

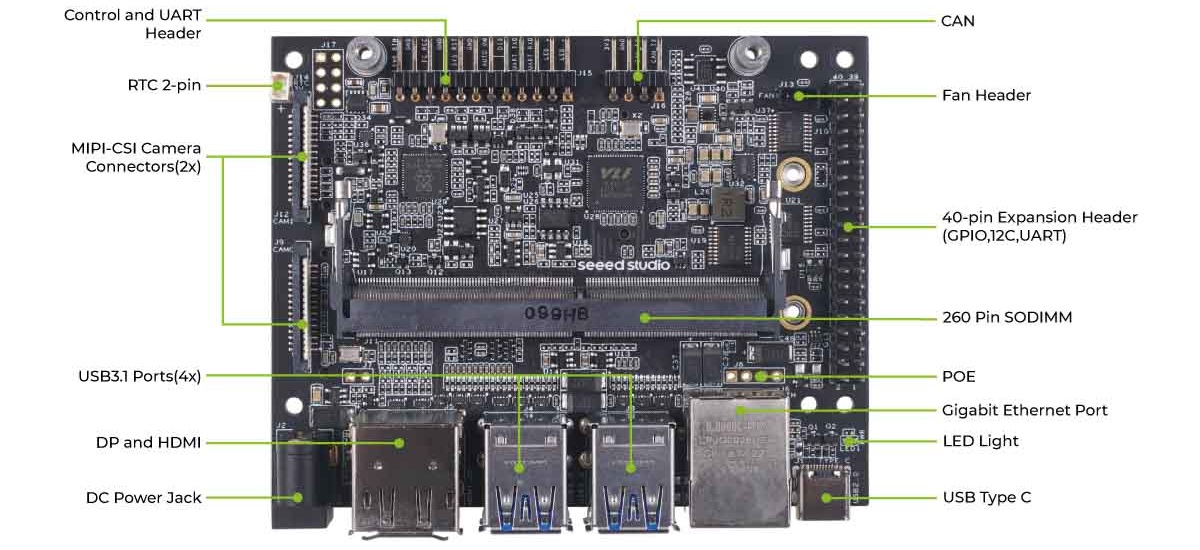

The reComputer J202 carrier board provides four USB 3.1 ports, Gigabit Ethernet, HDMI 2.0, DisplayPort, USB Type-C, two MIPI-CSI camera connectors, CAN and a 40-pin expansion header with GPIO, I2C and UART. RTC and fan connectors are also available. The extensive range of interfaces enables integration with cameras, sensors, communication devices and other peripherals required in Edge AI systems.

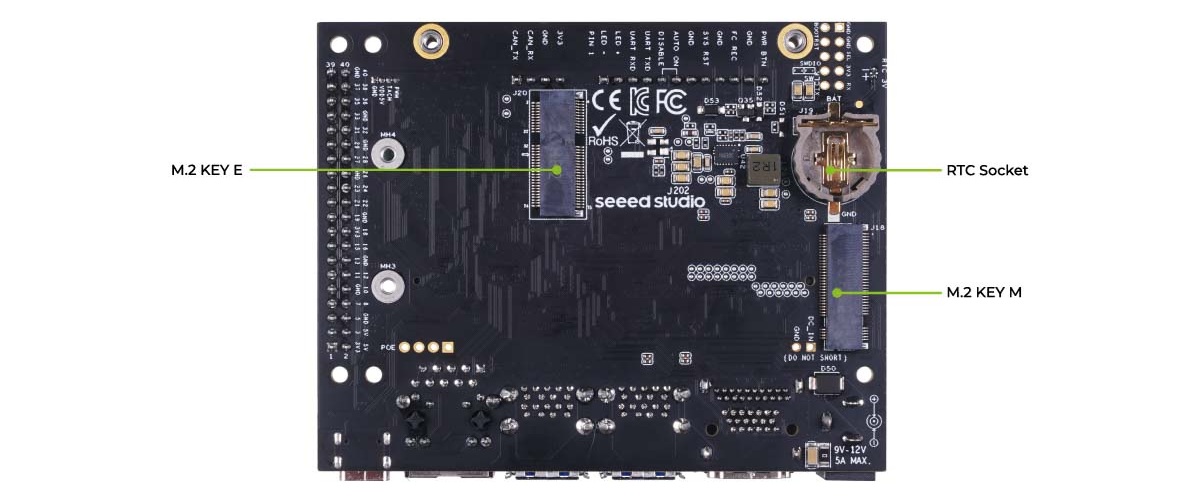

The underside of the reComputer J202 carrier board provides two M.2 interfaces. M.2 Key M can be used for NVMe storage - the kit includes a 128GB M.2 NVMe SSD. The M.2 Key E slot supports wireless communication modules, while the described version comes with a pre-installed WiFi module and antennas.

Jetson SUB Mini PC V2 uses an aluminum enclosure and a heatsink with a cooling fan to dissipate heat from the Jetson Xavier NX module under load. Mounting holes on the rear of the enclosure also allow the computer to be installed on a vertical surface.


The acrylic top cover can be removed independently from the remaining enclosure components. This provides easier access to the electronics and allows compatible HAT or Cape modules to be installed without disassembling the entire enclosure.

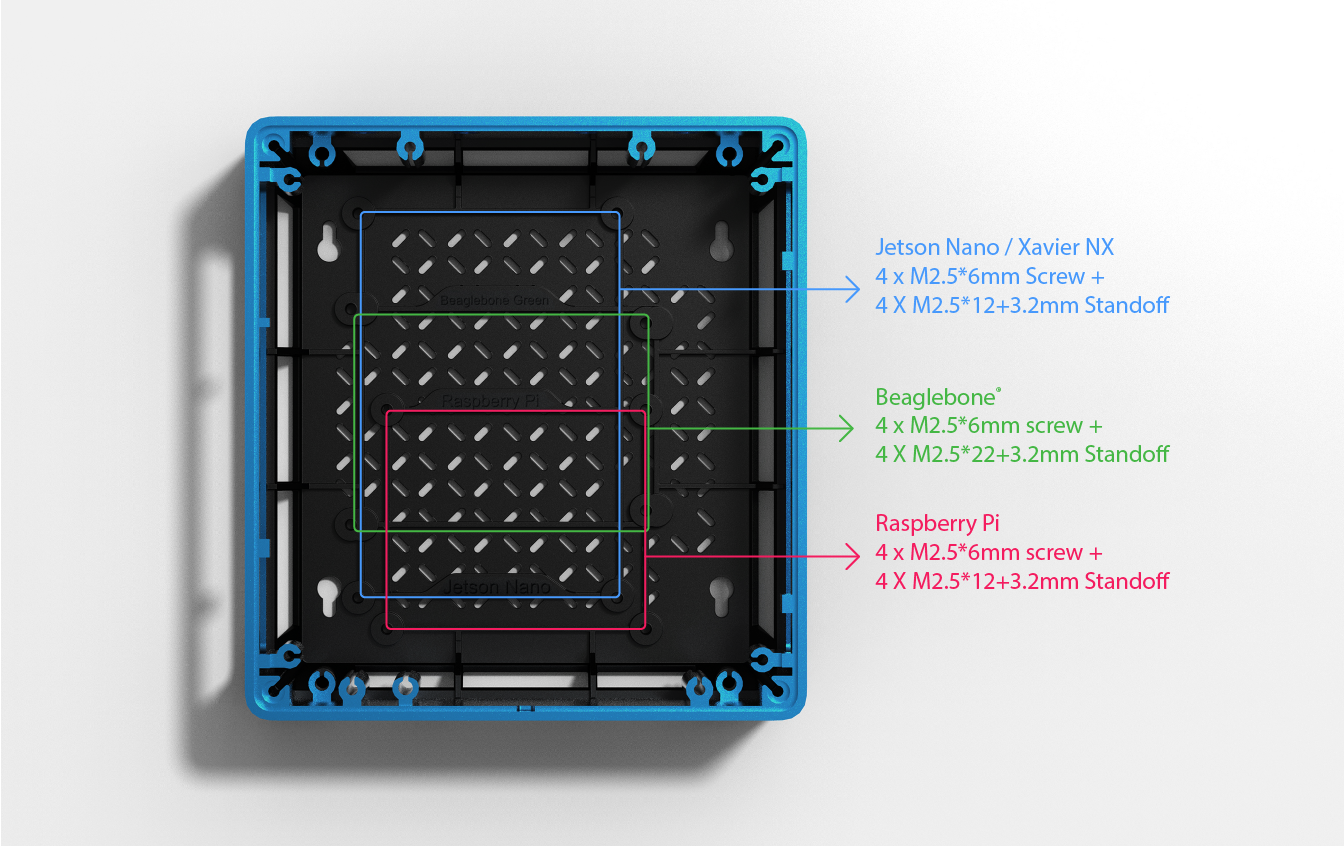

The internal enclosure structure includes mounting points designed for several single-board computer formats. The hole arrangement supports NVIDIA® Jetson Nano™ / Jetson Xavier™ NX, BeagleBone® and Raspberry Pi boards when suitable mounting screws and spacers are used.

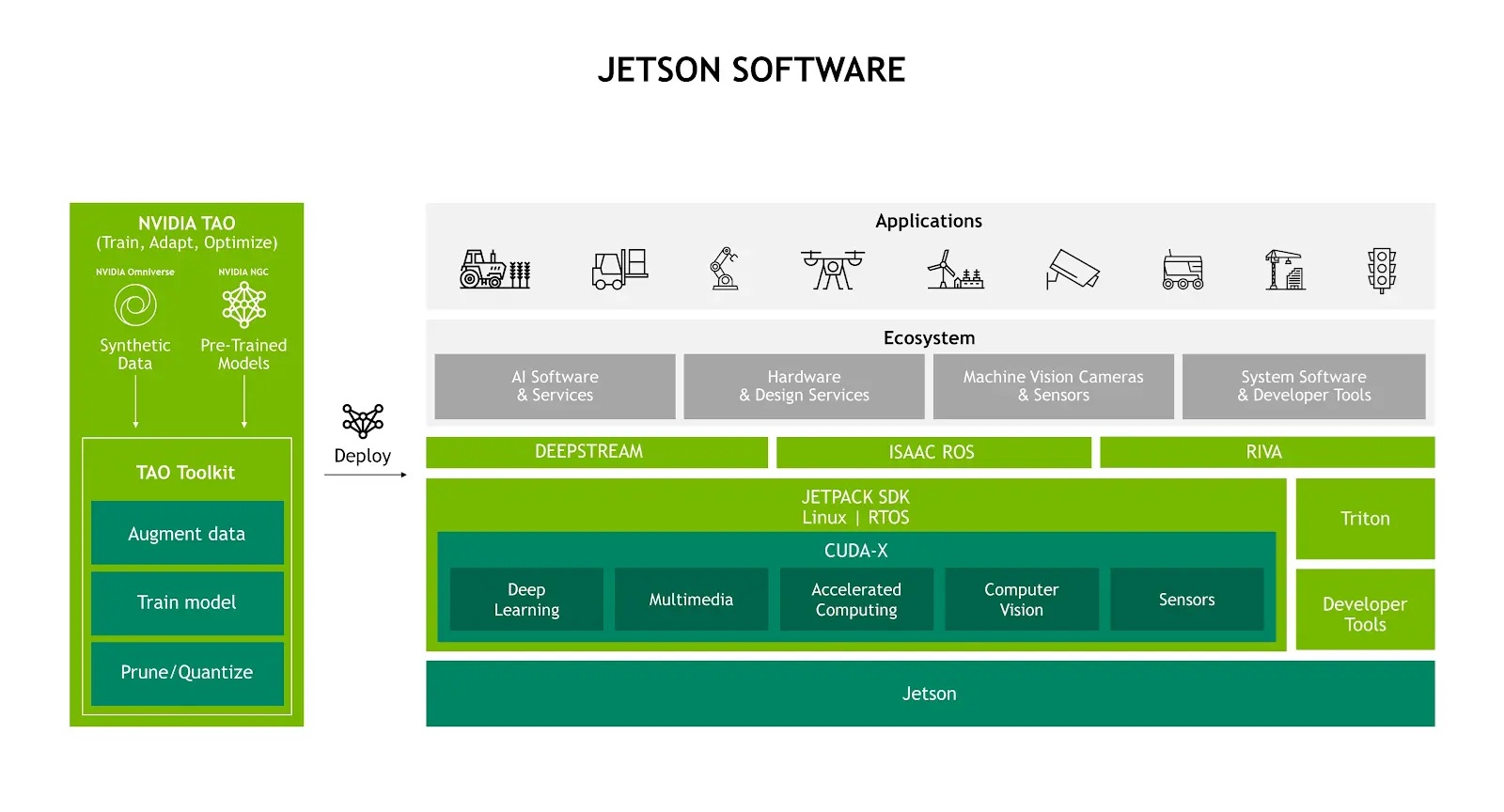

The computer comes with pre-installed NVIDIA JetPack™ 5.0.2. JetPack includes Jetson Linux as well as tools and libraries for developing and deploying AI applications, including components of the CUDA-X ecosystem. The Jetson platform also supports solutions for computer vision, machine learning, robotics, Speech AI and deploying models on edge devices.


Computer Vision and Machine Learning

Jetson Xavier NX supports popular tools for developing, optimizing and deploying AI models directly on an edge device.

  • NVIDIA DeepStream SDK - AI-based image and video stream analysis
  • NVIDIA TAO Toolkit - training, adapting and optimizing AI models
  • alwaysAI - developing and deploying Computer Vision applications
  • Edge Impulse - developing and deploying Embedded Machine Learning models
  • Roboflow - data preparation, training and deployment of Computer Vision models
  • YOLOv5 by Ultralytics - object detection and classification
  • Deci - model optimization and inference performance optimization

Speech AI

NVIDIA® Riva enables the development of GPU-accelerated applications for speech processing.

Remote Management

Allxon provides tools for remote management of Edge AI devices and OTA updates.

Robotics and ROS

NVIDIA Isaac ROS provides hardware-accelerated packages for robotics applications, while Cogniteam Nimbus enables cloud-based management of autonomous robots.

Jetson SUB Mini PC V2 can be used in Computer Vision, robotics, automation, monitoring and other Edge AI applications.

Features

  • NVIDIA® Jetson Xavier™ NX module
    • Module: NVIDIA® Jetson Xavier™ NX
    • AI performance: up to 21 TOPS (INT8)
    • CPU: 6-core 64-bit NVIDIA Carmel ARMv8.2
    • GPU: 384-core NVIDIA Volta
    • RAM: 8GB LPDDR4x, 128-bit
    • Memory bandwidth: 59.7GB/s
    • eMMC storage: 16GB eMMC 5.1
  • Storage and connectivity
    • SSD: 128GB M.2 NVMe SSD
    • WiFi: pre-installed M.2 Key E module
    • Ethernet: 1 x Gigabit Ethernet
    • Antenna: included
  • Interfaces
    • USB: 4 x USB 3.1 with USB 2.0 support
    • USB Type-C: 1 x
    • HDMI: 1 x
    • DisplayPort: 1 x
    • MIPI-CSI: 2 x camera connector
    • CAN: 1 x
    • GPIO: 40-pin expansion header
    • GPIO interfaces: GPIO, I2C, UART
    • RTC: 2-pin connector
    • Fan connector: yes
  • M.2 connectors
    • M.2 Key M: for SSD
    • M.2 Key E: for WiFi / Bluetooth module
  • Software
    • System: NVIDIA JetPack™ 5.0.2
    • Software platform: NVIDIA Jetson
    • Support: Jetson Linux, CUDA-X and NVIDIA Jetson ecosystem tools
  • Enclosure and cooling
    • Enclosure material: aluminum and acrylic
    • Cooling: active, heatsink with fan
    • Top cover: removable
    • Wall mounting: supported
    • Dimensions: 130 x 120 x 50 mm
  • Power supply
    • Input voltage: 12 V DC
    • Maximum supply current: 5 A
    • Power connector: DC 5.5 / 2.5 mm

Kit includes

  • NVIDIA® Jetson Xavier™ NX module - 1 pc.
  • reComputer J202 carrier board - 1 pc.
  • 128GB M.2 NVMe SSD
  • WiFi module
  • Antenna
  • Aluminum enclosure frame - 1 pc.
  • Acrylic cover - 1 pc.
  • Heatsink with fan - 1 pc.
  • 12 V / 5 A power adapter with 5.5 / 2.5 mm DC plug - 1 pc.
