A powerful Edge AI computer based on the NVIDIA Jetson Orin NX 16GB module, offering up to 157 TOPS of computing power in MAXN mode. Equipped with an 8-core Arm Cortex-A78AE processor and a GPU with 1024 CUDA cores and 32 Tensor cores, it enables complex vision, machine learning, and real-time data analysis tasks. The device supports up to four CSI cameras, has a 128GB NVMe SSD, a wide range of communication ports, including Gigabit Ethernet, USB 3.2, CAN, and UART/I2C interfaces, and a power supply ranging from 19 to 54 VDC allows for use in mobile robots and industrial systems. A robust aluminum housing with active cooling ensures stable operation in harsh environments. Seeed Studio 114110310

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

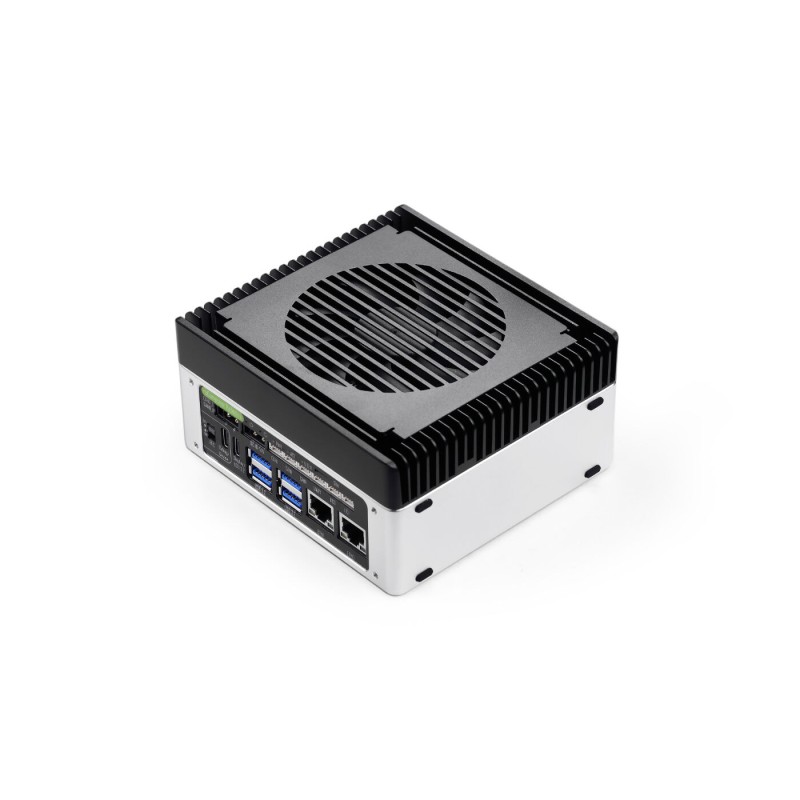

reComputer Robotics J4012 is an advanced Edge AI computer designed for demanding robotic and industrial applications. The device is based on the NVIDIA Jetson Orin NX 16GB module, delivering an impressive computing performance of 157 TOPS in MAXN mode. Thanks to the NVIDIA Ampere architecture with 1024 CUDA cores and 32 Tensor Cores, the platform provides high efficiency for image processing, machine learning, and real-time data analysis tasks. The computer features an 8-core Arm Cortex-A78AE CPU running up to 2.0 GHz, ensuring stable and fast operation under heavy workloads. Equipped with 16 GB LPDDR5 memory with 102.4 GB/s bandwidth, it allows smooth handling of multiple data streams simultaneously.


The J4012 model is designed as a high-performance robot controller, offering a wide range of communication interfaces and expansion options. Support for up to four CSI cameras (or eight via virtual channels) enables development of advanced vision systems. A rich set of USB ports, dual Gigabit Ethernet, and CAN, I2C, and UART interfaces ensures easy integration with sensors, controllers, and communication modules. The device supports a wide input voltage range of 19 to 54 V DC, making it suitable for mobile robots and industrial installations. A robust aluminum enclosure with heatsink and fan provides effective cooling under challenging operating conditions. The computer operates in temperatures from -20°C to 60°C in 25 W mode, maintaining reliability in industrial environments. Preinstalled JetPack 6.2 with Linux BSP enables immediate deployment and reduces project implementation time. With compact dimensions and options for desktop or wall mounting, reComputer Robotics J4012 is a versatile solution for modern autonomous systems.

Features

  • Module: NVIDIA Jetson Orin™ NX 16GB
  • AI performance: 157 TOPS (MAXN mode)
  • GPU: 1024-core NVIDIA Ampere architecture with 32 Tensor Cores
  • Maximum GPU frequency: 1173 MHz
  • CPU: 8-core NVIDIA Arm® Cortex-A78AE v8.2 64-bit, 2 MB L2 + 4 MB L3 cache
  • Maximum CPU frequency: 2.0 GHz
  • DL accelerator: 2 × NVDLA v2.0
  • Maximum DL frequency: 1.23 GHz
  • Vision accelerator: 1 × PVA v2.0
  • Memory: 16 GB 128-bit LPDDR5 DRAM, 102.4 GB/s bandwidth
  • Power modes: 10 W / 15 W / 25 W / 40 W
  • Video encoding: 1×4K60 (H.265), 3×4K30 (H.265), 6×1080p60 (H.265), 12×1080p30 (H.265)
  • Video decoding: 1×8K30 (H.265), 2×4K60 (H.265), 4×4K30 (H.265), 9×1080p60 (H.265), 18×1080p30 (H.265)
  • Camera support: up to 4 cameras (8 via virtual channels), 8 MIPI CSI-2 lanes, D-PHY 2.1 (up to 20 Gb/s)
  • Module connector: 260-pin SO-DIMM
  • Storage: 1× M.2 Key M (PCIe, NVMe)
  • Wireless communication: 1× M.2 Key E (WiFi/Bluetooth), 1× M.2 Key B (5G)
  • Wired networking: 2× RJ-45 Gigabit Ethernet
  • USB: 6× USB 3.2 Type-A (5 Gb/s), 1× USB 3.0 Type-C (Host / DP 1.4), 1× USB 2.0 Type-C (Device – reflash/debug)
  • CAN bus: 2× CAN0 (XT30 2+2), 3× CAN1 (4-pin GH-1.25 connector)
  • Display output: 1× DisplayPort 1.4 (Type-C Host)
  • UART: 1× 4-pin GH-1.25 connector
  • I2C: 2× 4-pin GH-1.25 connectors
  • Fan connectors: 1× 4-pin 5 V PWM, 1× 4-pin 12 V PWM
  • Expansion port: 1× camera expansion connector (for GMSL2 board – optional)
  • RTC: 1× 2-pin, 1× RTC socket
  • LEDs: 3× (PWR, ACT, user)
  • Buttons: 1× Power (PWR), 1× Reset (RESET)
  • DIP switch: 1× REC
  • Antenna ports: 5×
  • Input power: 19–54 V DC (XT30 2+2, XT30 to 5525 DC cable included)
  • Operating system / software: JetPack 6.2
  • Dimensions: 115 × 115 × 38 mm
  • Weight: 200 g

Kit contains

  • Jetson Orin™ NX 16GB module
  • reComputer Robotics J401 baseboard
  • 128GB NVMe SSD
  • Aluminum enclosure with heatsink and fan
  • USB Type-A to Type-C cable
  • XT30 to DC cable
