An industrial AI computer equipped with an NVIDIA Jetson AGX Orin 32GB module, offering up to 200 TOPS of computing power. It supports up to 8 GMSL cameras and 4 CSI lines, making it ideal for mobile robots, AMR systems, and autonomous vehicles performing SLAM tasks or real-time image analysis. A rich set of interfaces, including 10G Ethernet, CAN-FD, RS-232/422/485, and numerous USB ports, provides extensive integration options. SeeedStudio 100076722

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

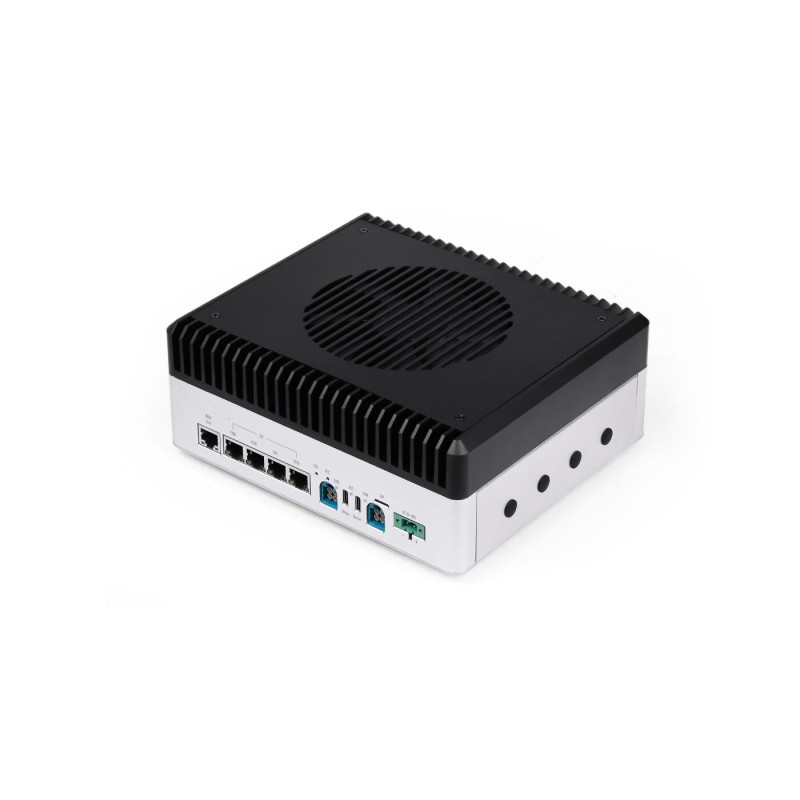

reComputer Robotics J5011 with GMSL expansion is an advanced Embedded AI platform compatible with the NVIDIA Jetson AGX Orin™ 32GB module, delivering up to 200 TOPS of AI computing performance. It is an ideal solution for next-generation robotic systems, AMR mobile robots, and autonomous applications requiring high-performance Edge AI processing.

reComputer Robotics J5011

The device is designed as a central control unit for demanding robotics and industrial applications. The J5011 model offers extensive communication capabilities, including USB, 1G and 10G Ethernet, CAN (with CAN-FD support), RS-232/422/485, DI/DO, as well as SPI, I2C, and I2S interfaces. With support for up to 8 GMSL2 cameras (using the MAX96712 deserializer) and 4 CSI lanes (4-lane), the platform is ideal for AI vision systems performing tasks such as SLAM, BEV (Bird’s Eye View), Occupancy Grid, and advanced real-time image analysis.

The computer features 2× M.2 Key M slots for SSD drives (128GB SSD included), M.2 Key E for Wi-Fi/Bluetooth modules, and M.2 Key B for 4G/5G modems, ensuring broad wireless communication options. A wide input voltage range of 19V to 48V DC enables direct integration with 48V battery systems commonly used in robotics and autonomous vehicles.

The robust industrial design supports both desktop and wall mounting. The device operates within a temperature range of -10°C to 60°C, making it suitable for demanding industrial environments. A two-year manufacturer’s warranty provides additional investment security. It is a complete, deployment-ready solution for the most demanding robotics and AMR applications.

Features

  • Platform: compatible with NVIDIA Jetson AGX Orin™ 32GB
  • AI performance: up to 200 TOPS
  • Storage: 2× M.2 Key M (1× 128GB SSD included)
  • Wireless connectivity: M.2 Key E (Wi-Fi/Bluetooth), M.2 Key B (4G/5G)
  • USB: 3× USB 3.0 Type-A (5Gbps), 1× USB 3.0 Type-C (Recovery), 1× USB 2.0 Type-C (Debug)
  • Ethernet: 4× 1G RJ45, 1× 10G RJ45
  • GMSL: 8× GMSL2 (MAX96712)
  • CSI: 4× 4-lane CSI
  • CAN: 4× CAN (CAN-FD supported)
  • Serial ports: 2× RS-232/422/485
  • Digital I/O: 4× DI, 4× DO
  • Additional interfaces: 1× SPI, 1× I2C, 1× I2S
  • Display: 1× HDMI 2.1
  • Fan: 1× 4-pin (12V PWM)
  • Buttons: 1× Reset, 1× Recovery
  • RTC: 1× RTC 2-pin, 1× RTC socket
  • Operating temperature: -10°C ~ 60°C
  • Mounting: desktop, wall
  • Power supply: 19V to 48V DC (2-pin connector)
  • Dimensions: 210 × 180 × 87 mm
  • Weight: 2.95 kg

Kit contains

  • reComputer Robotics J5011
  • NVIDIA Jetson AGX Orin™ 32GB module
  • 128GB SSD
  • DC power cable
  • USB Type-C to Type-A cable
  • 2 × Panel mounting brackets
  • DIN rail
