ID: 1203710
zł16,075.95
Tax included

zł13,069.88 tax excl.

An industrial AI computer equipped with an NVIDIA Jetson AGX Orin 64GB module, offering up to 275 TOPS of computing power. It supports up to eight GMSL2 cameras and four CSI lines, making it ideal for mobile robots, AMR systems, and autonomous vehicles performing SLAM tasks or real-time image analysis. A rich set of interfaces, including 10G Ethernet, CAN-FD, RS-232/422/485, and numerous USB ports, provides extensive integration options. SeeedStudio 100032662

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

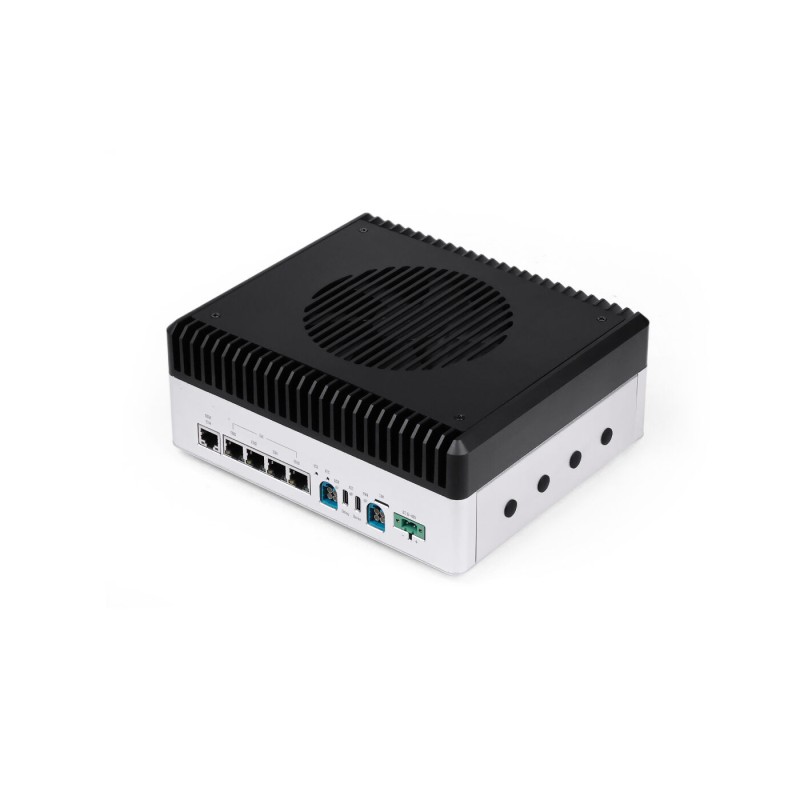

reComputer Robotics J5012 with GMSL expansion is an advanced industrial-grade computer equipped with the NVIDIA Jetson AGX Orin™ 64GB module. The device delivers impressive computing performance of up to 275 TOPS, making it an ideal platform for embedded AI systems, AMR mobile robots, and autonomous vehicles. Thanks to its high-performance GPU and CPU, it excels in tasks such as SLAM, BEV (Bird’s Eye View), Occupancy Grid, and advanced real-time image processing.


The computer is designed as a central control unit for demanding robotic and industrial applications. The J5012 model stands out with its rich set of communication interfaces, including USB, 1G and 10G Ethernet, CAN-FD, RS-232/422/485, DI/DO, as well as SPI, I2C, and I2S. Support for up to 8 GMSL2 cameras (using the MAX96712 deserializer) enables the development of advanced high-bandwidth vision systems. Additionally, 4 CSI (4-lane) interfaces are available for direct camera integration. The device features two M.2 Key M slots for SSD storage (128GB SSD included), allowing data storage expansion. The M.2 Key E slot supports Wi-Fi/Bluetooth modules, while the M.2 Key B slot supports 4G/5G modems, ensuring full wireless connectivity.

The wide 19V–48V DC power input range allows direct integration with 48V battery systems commonly used in robotics and autonomous vehicles. The rugged industrial enclosure supports desktop, wall, or DIN rail mounting. The computer operates in temperatures ranging from -10°C to 60°C, making it suitable for industrial environments. Support for the JetPack platform and compatibility with various GMSL cameras, including 2D and 3D models, make it a versatile solution for next-generation AI Edge projects. It is a complete, deployment-ready solution for the most demanding robotic and autonomous applications.

Features

  • Compute module: NVIDIA Jetson AGX Orin™ 64GB
  • AI performance: up to 275 TOPS
  • Storage: 2× M.2 Key M (1× 128GB SSD included)
  • Wireless connectivity: M.2 Key E (Wi-Fi/Bluetooth), M.2 Key B (4G/5G)
  • USB: 3× USB 3.0 Type-A, 1× USB 3.0 Type-C (Recovery), 1× USB 2.0 Type-C (Debug)
  • Ethernet: 4× 1G RJ45, 1× 10G RJ45
  • GMSL: 8× GMSL2 (MAX96712)
  • CSI: 4× 4-lane CSI
  • CAN: 4× CAN (CAN-FD support)
  • Serial ports: 2× RS-232/422/485
  • Digital I/O: 4× DI, 4× DO
  • Additional interfaces: 1× SPI, 1× I2C, 1× I2S
  • Display: 1× HDMI 2.1
  • Operating temperature: -10°C ~ 60°C
  • Mounting: desktop, wall, DIN rail
  • Power supply: 19V–48V DC (2-pin terminal block)
  • Dimensions: 210 × 180 × 87 mm
  • Weight: 2.95 kg

Kit contains

  • reComputer Robotics J5012
  • NVIDIA Jetson AGX Orin 64GB
  • 128GB SSD
  • DC power cable
  • USB Type-C to Type-A cable
  • 2 × Panel mounting brackets
  • DIN rail
