V3Link 4-Camera Kit IMX219 8MP with 1m Fakra Cables - Arducam B0489-3
ID: 1195227
zł46.74
Tax included
zł38.00 tax excl.
Arducam V3Link multi-camera kit based on 4x IMX219 8MP modules with V3Link (FPD-Link) interface, designed for TI SK-AM62A-LP/AM68A/AM69A development boards, enabling image transmission up to 10 m via shielded 1 m Fakra cables with support for channel switching and independent control of 4 cameras. Arducam B0489-3
Description
Arducam B0489-3 is a complete four-camera V3Link kit with 1 m Fakra cables designed for use with Texas Instruments SK-AM62A-LP, AM68A and AM69A platforms. The solution utilizes the V3Link interface based on FPD-Link technology, enabling high-bandwidth video transmission over extended distances while maintaining low latency and signal stability. The system allows the creation of a four-channel vision configuration with the option of switching image sources or controlling each camera independently.
Each of the four camera modules is based on the Sony IMX219 8MP sensor, providing a resolution of up to 3280 x 2464 px and supporting 1080p video at 30 fps. Power and data transmission are handled via shielded 1 m Fakra RF coaxial cables, with support for operation at distances up to 10 m. The kit includes one V3Link Rx receiver board and four Tx transmitter boards, enabling flexible channel management while maintaining high signal integrity.
The solution is intended for integration into systems requiring high bandwidth, stable transmission and multi-camera architecture.
Note!

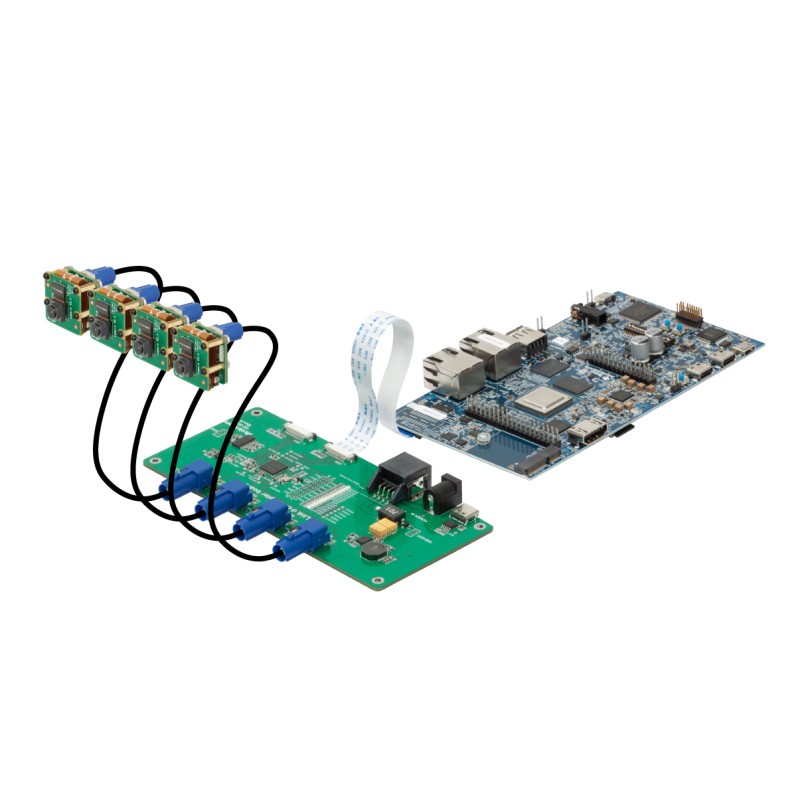

The kit does not include the TI development board shown in the product image!
Features
- Interface and compatibility
- Transmission interface: V3Link (FPD-Link)
- Compatible platforms: TI SK-AM62A-LP, AM68A, AM69A
- Supports up to 4 cameras with channel switching
- Camera module
- Sensor: Sony IMX219 CMOS
- Still resolution: 8 Megapixels
- Sensor resolution: 3280 x 2464 px
- Video modes: 1080p30, 640 x 480p30
- Pixel size: 1.12 µm x 1.12 µm
- Optical format: 1/4"
- Filter: IR-cut, visible light only
- Lens
- Focus type: Fixed focus
- Focal length: 3.04 mm
- Aperture: F2.0
- Field of view: 62.2° (H) x 48.8° (V)
- Focus distance: 200 mm to infinity
- Electrical and mechanical parameters
- Camera board size: 25 x 24 mm
- Peak current: 300 mA
- RF cable length: 1 m
- RF connectors: Fakra Z female to female
- Maximum transmission distance: Up to 10 m
Kit includes
- Arducam V3Link Rx receiver board x1
- Arducam V3Link Tx transmitter boards x4
- IMX219 camera modules x4

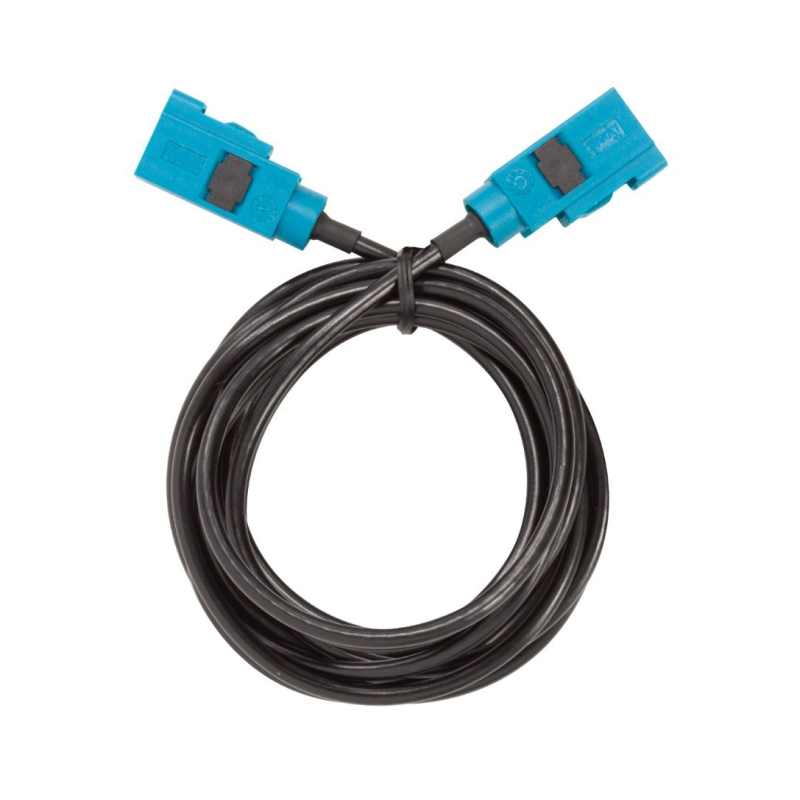

- Fakra Z 1 m RF coaxial cables x4
- 40 cm 22-22 pin FPC cables x4
- 15 cm 22-22 pin FFC cable x1
- Power adapter x1
1195227
Data sheet
- Resolution
- 8MPx
- Interface
- V3Link
- Sensor
- IMX219
- IR filter
- Yes
- Lens assembly
- none
