ArduCam B0489-2 - 4x IMX219 8MP V3Link camera kit
ID: 1194188
5902186300538
zł284.63
zł243.97
Save zł40.66
Tax included
zł198.35 tax excl.
Lowest price 30 days:
zł284.63
Arducam V3Link camera kit with four IMX219 8MP modules, designed for multi-channel image transmission over distances up to 10 m, compatible with TI SK-AM62A-LP, AM68A and AM69A platforms. Arducam B0489-2
Description

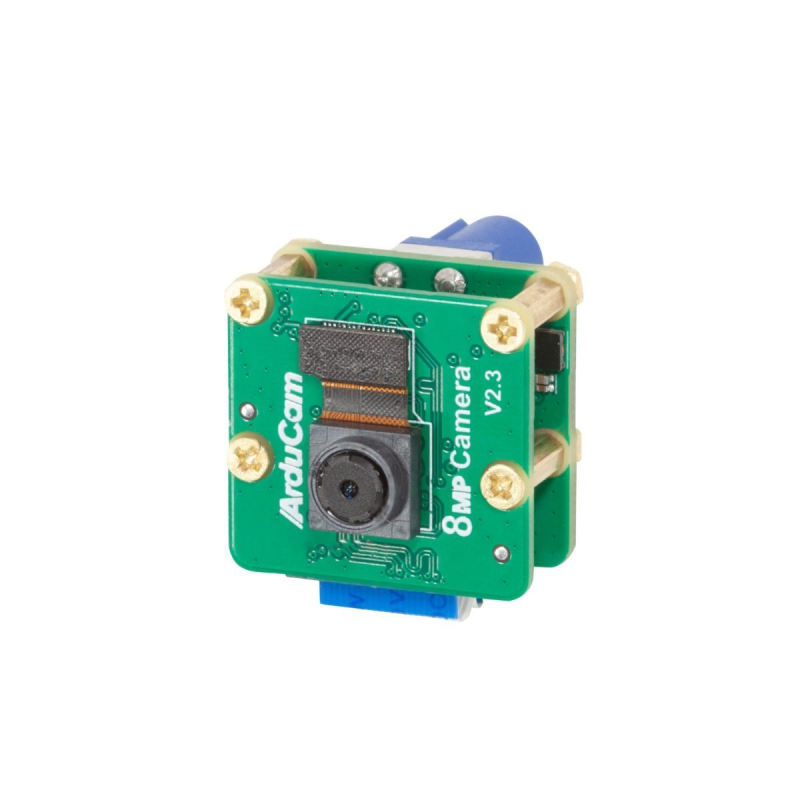

The ArduCam B0489-2 kit is based on the V3Link interface developed by Texas Instruments and is intended for vision systems requiring high bandwidth and stable long-distance transmission. The solution uses shielded Fakra coaxial cables for simultaneous data and power transmission, enabling camera operation at distances of up to 10 m while maintaining low latency.
The kit includes four IMX219 camera modules with 8 MP resolution, allowing the implementation of multi-camera systems with channel switching or independent control of each camera. Designed for use with TI SK-AM62A-LP, AM68A and AM69A development boards, the kit is suitable for ADAS, industrial automation, surveillance, automotive systems and medical imaging. Installation and commissioning do not require additional configuration or driver installation.
Features
Image sensor
- Sensor type: IMX219 CMOS
- Still resolution: 8 Megapixels
- Sensor resolution: 3280 x 2464 px
- Sensor diagonal: 4.6 mm
- Pixel size: 1.12 µm x 1.12 µm
- Optical format: 1/4"
- IR filter: Integrated IR-cut filter
Video modes
- Video modes: 1080p 30 fps, 640 x 480 30 fps
Optical system
- Focus type: Fixed
- Focal length: 3.04 mm
- Aperture: F2.0
- Field of view: 62.2° x 48.8°
- Focus range: 200 mm ~ infinity
Interface and transmission
- Transmission interface: V3Link
- Maximum cable length: 10 m
- Number of supported cameras: Up to 4
Compatibility
- Compatibility: TI SK-AM62A-LP, AM68A, AM69A
Electrical characteristics
- Peak current: 300 mA
Mechanical characteristics
- Camera board dimensions: 25 x 24 mm

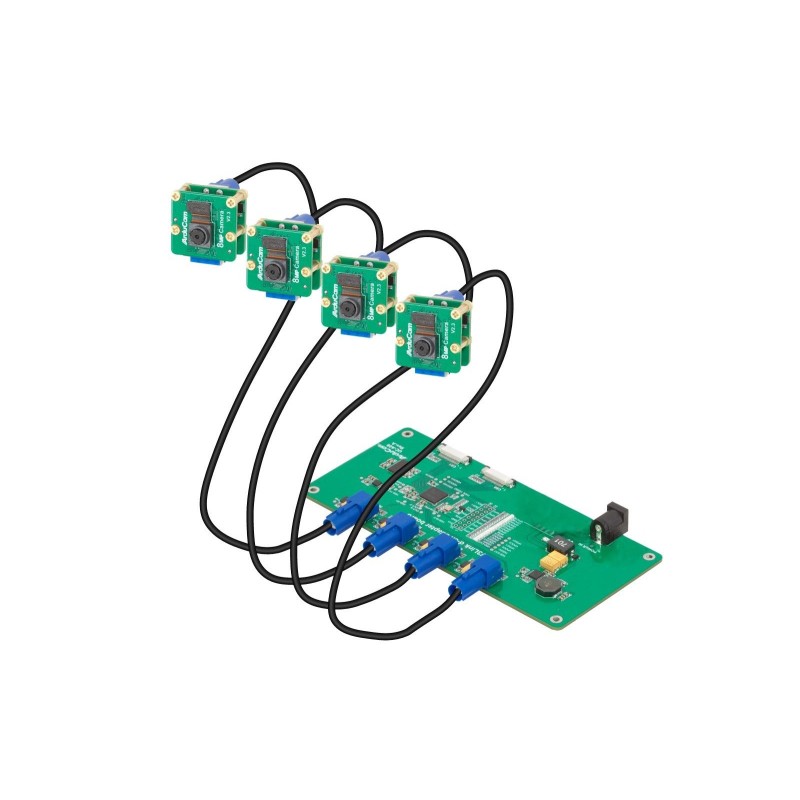

Kit includes
- 1 x Arducam V3Link Rx board
- 4 x Arducam V3Link Tx board
- 4 x RF Fakra Z female-to-female coaxial cable 1 m
- 4 x Arducam IMX219 camera module
- 4 x FPC cable 22-22pin 40 cm
- 1 x FFC cable 22-22pin 15 cm
- 1 x Power adapter
1194188
Data sheet
- Resolution
- 8MPx
- Interface
- V3Link
- Sensor
- Sony IMX219
- IR filter
- Yes
- Lens assembly
- none
