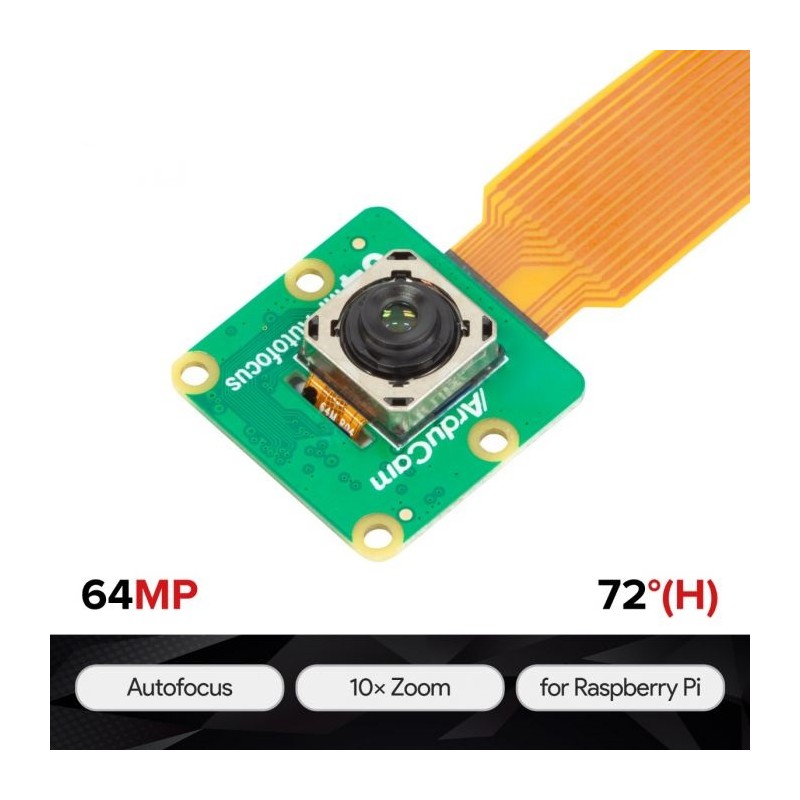

ArduCAM 64MP Autofocus Camera - module with a 64MP camera for Raspberry Pi
ID: 1181358
5906623404575
zł287.88
Tax included
zł234.05 tax excl.
Module with a 64 MP camera designed for Raspberry Pi minicomputers. Equipped with autofocus and 10x digital zoom. ArduCAM B0399
Description
Module with a 64 MP camera designed for Raspberry Pi minicomputers. It uses the MIPI-CSI interface dedicated to cooperation with cameras. It has autofocus and 10x digital zoom and allows you to take photos with a maximum resolution of 9152 x 6944 pixels. It will be used in demanding applications.
Features
- Pi Hawk-Eye
- Resolution: 64MP 9152 x 6944
- Frame rate: 1080p30, 720p60, 640x480p60/90
- Integrated IR filter
- Optical Size: 1/1.7"
- Autofocus
- F1.8
- Focal length: 5.1 mm
- Shutter type: rolling shutter
- QBC color filter
- Output format: JPEG, YUV, RGB, RAW10
- Field of view: 84°
- Camera board dimensions: 25 x 24 mm
Kit contains
- Pi Hawk-Eye 64 MP Camera
- 1 x 22pin to 22pin FPC Cable (15cm) for Pi 5, Pi Zero
- 1 x 15pin to 22pin FPC Cable (15cm) for Pi 4B, 3B+
1181358
Data sheet
- Resolution
- 64 MPx
- Interface
- MIPI CSI-2
- Sensor
- Inna
- IR filter
- Yes
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
