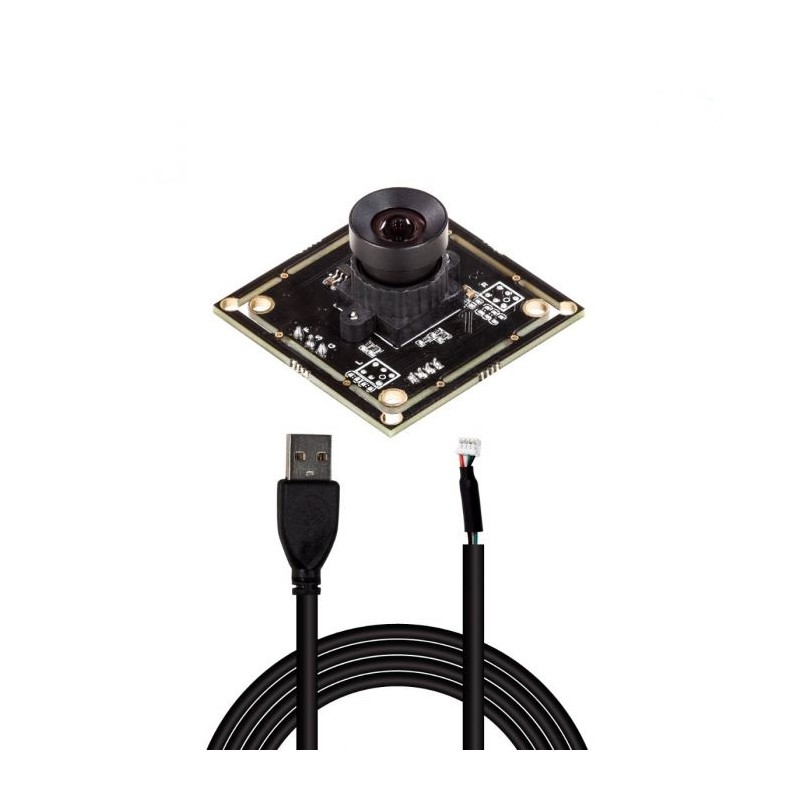

ArduCAM 100fps Global Shutter Color USB Camera - 1MP USB camera OV9782
ID: 1194680
5906623495870
zł279.22
Tax included
zł227.01 tax excl.
The ArduCAM USB camera with a 1MP OV9782 sensor and global shutter provides high image quality even in low light. UVC compatibility, a 70° viewing angle, and support for Windows, Linux, and Mac make it ideal for projects such as facial recognition, motion tracking, and astrophotography. ArduCam B0385
Description
The Arducam B0385 is a new addition to ArduCAM's USB camera lineup, featuring a 1MP OV9782 sensor with a global shutter. UVC compatibility ensures seamless operation with Windows, Linux, and Mac systems without the need for additional drivers. The sensor’s high sensitivity in low-light conditions delivers crisp and accurate color images, even when capturing fast-moving objects. Equipped with a low-distortion lens, a 70° field of view, and an IR filter, this camera excels in various applications, including facial and iris recognition, gesture and motion tracking, and astrophotography. The Plug&Play design allows immediate use by simply connecting the camera via USB to a computer, laptop, Android device, or Raspberry Pi. Its compact size and reserved external trigger ports make this camera ideal for advanced recognition and monitoring systems. Perfect for projects like facial recognition, motion tracking, video surveillance systems, and even astronomical observations.
Features
- Sensor: 1/4” OV9782, global shutter
- Resolution: 1MP (1280 x 800)
- Data Format: MJPG/YUY2
- Frame Rate: MJPG 100fps at 1280 x 800/720p/800 x 600/640 x 480/320 x 240; YUY2 10fps at 1280 x 800/1280 x 720
- Field of View: 70°
- Lens Mount: M12
- IR Filter
- Adjustable Parameters: Exposure, White Balance
- System Compatibility: Windows, Linux, Mac, UVC-compatible OS
- Power Supply: 5V via USB
- Current Consumption: Up to 200 mA
- Operating Temperature: -20°C to +70°C
- Cable Length: 1 m
- Dimensions: 38 x 38 mm
Kit contains
- Arducam B0385 Camera
- USB Cable
1194680
Data sheet
- Resolution
- 1 MPx
- Interface
- USB
- Sensor
- OV9782
- IR filter
- Yes
- Lens assembly
- M12
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
