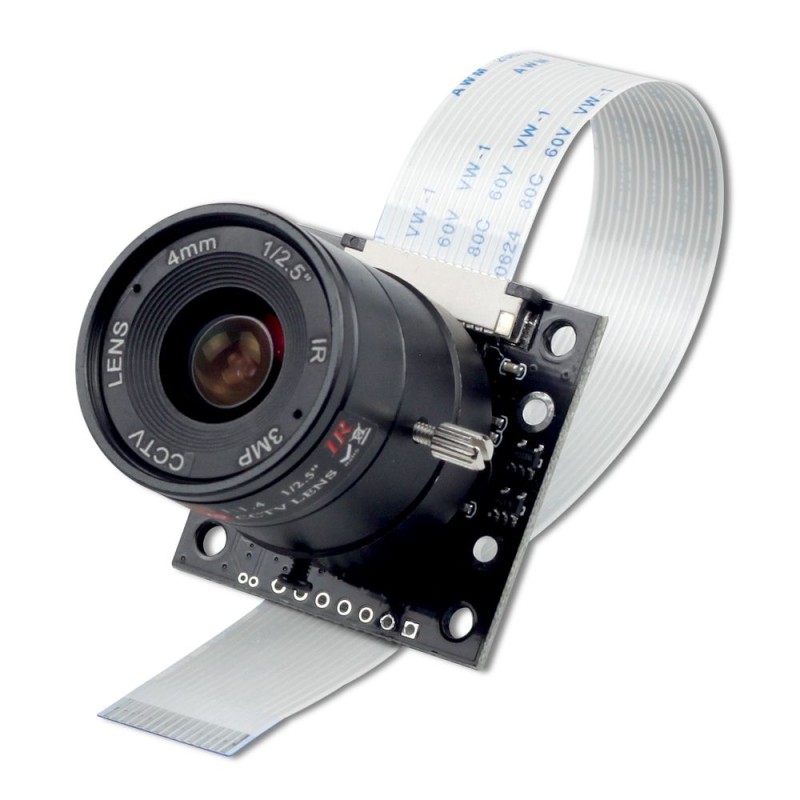

Moduł kamery ArduCam OV5647 5 MPx z obiektywem LS-2716 CS
search
  • Moduł kamery ArduCam OV5647 5 MPx z obiektywem LS-2716 CS
ID: 562542
5906623402939
zł207.17
Tax included

zł168.43 tax excl.

The Pi NoIR is a Raspberry Pi camera module with no Infrared filter for night time and low light photography using an Infrared light. Useful for wildlife research, science projects, night time security or making artistic photo’s. B0036

24h
Available
Available quantity: 5
Kamami is the official distributor of ArduCAM cameras and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The Pi NoIR is a Raspberry Pi camera module with no Infrared filter for night time and low light photography using an Infrared light. Useful for wildlife research, science projects, night time security or making artistic photo’s.

The Raspberry Pi camera module has been used for many things such as a security camera, for time lapse photography and even sent high up into the atmosphere on a weather balloon.
With the wide range of project Raspberry Pi’s are being used for, some users were finding that the camera was no good when it was being used in low light with an Infrared light source. Unfortunately for them the Raspberry Pi camera module has a Infrared filter built in which makes it unusable for their project. In response we come up with a camera module just for these type of projects called the Pi NoIR camera. It is the same as the standard camera module but without an IR filter.

Without the Infrared filter the camera can be used for night time photography, night time security or for any project where the scene will be lit by an IR light. Without a filter the camera sensor can see short wavelength IR light around 800nm which is the IR wavelengths not generated with heat but just beyond the visible red light in the spectrum.

The camera has the same specifications as the standard camera module but has a black circuit board so it can be told apart from the standard green camera board.

Features

  • Omnivision 5647 sensor in a fixed-focus module with replaceable Lens
  • Lens holder: M12x0.5 or CS Mount
  • 5MPixel sensor
  • Removed IR filter
  • Still picture resolution: 2592 x 1944
  • Max video resolution: 1080p
  • Max frame rate: 30fps
  • Size: 36 x 36 mm
  • Connection by flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector S5 on Raspberry Pi computer board

Package content:

  • 1pcs Raspberry Pi NoIR Camera Board /w CS mount Lens(LS-2716CS) fully compatible with official module
  • 1pcs 15cm 15pin FPC cable

Note: Raspberry Pi NOT INCLUDED

  • High-Definition video camera for Raspberry Pi Model A or B

  • Omnivision 5647 sensor in a fixed-focus module with replaceable Lens

  • Lens holder: M12x0.5 or CS Mount

  • 5MPixel sensor

  • Removed IR filter

  • Still picture resolution: 2592 x 1944

  • Max video resolution: 1080p

  • Max frame rate: 30fps

  • Size: 36 x 36 mm

  • Connection by flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector S5 on Raspberry Pi computer board

- See more at: http://www.uctronics.com/raspberry-pi-noir-camera-board-w-cs-mount-lens-compatible-with-official-module.html#sthash.l5sATsa2.dpuf

  • High-Definition video camera for Raspberry Pi Model A or B

  • Omnivision 5647 sensor in a fixed-focus module with replaceable Lens

  • Lens holder: M12x0.5 or CS Mount

  • 5MPixel sensor

  • Removed IR filter

  • Still picture resolution: 2592 x 1944

  • Max video resolution: 1080p

  • Max frame rate: 30fps

  • Size: 36 x 36 mm

  • Connection by flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector S5 on Raspberry Pi computer board

- See more at: http://www.uctronics.com/raspberry-pi-noir-camera-board-w-cs-mount-lens-compatible-with-official-module.html#sthash.l5sATsa2.dpuf
562542

Data sheet

Resolution
5MPx
Interface
MIPI CSI-2
Sensor
OV5647
IR filter
No
Lens assembly
CS mount
