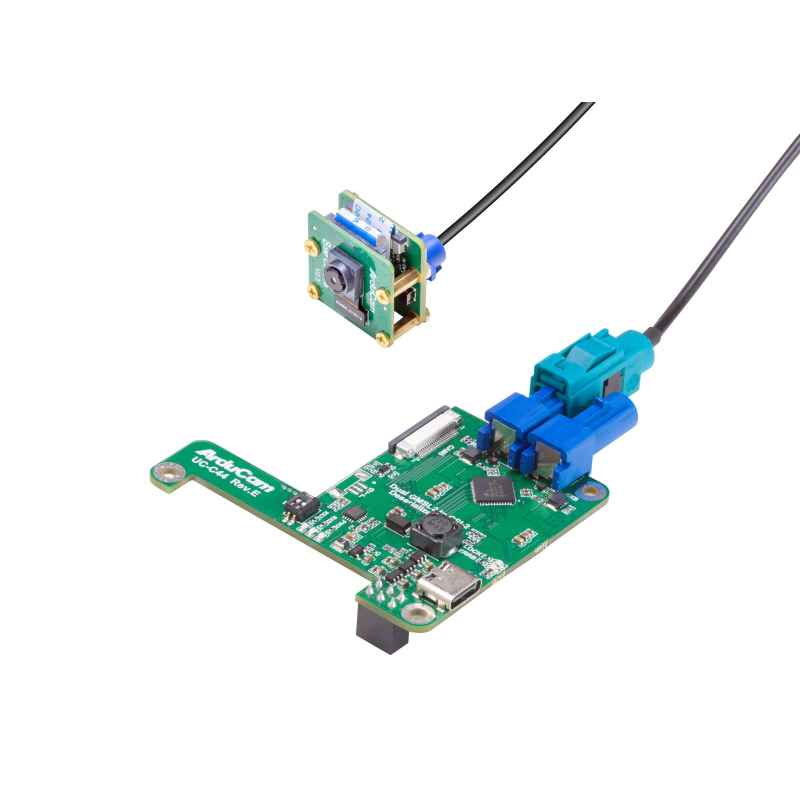

ArduCam B0549 – main view
search
  • ArduCam B0549 – main view
  • ArduCam B0549 – front view
  • ArduCam B0549 – complete kit
  • GMSL2 receiver board (Rx) – angled view
  • ArduCam B0549 – rear view
  • GMSL2 receiver board (Rx) – top view
  • ArduCam B0549 – kit components
  • ArduCam B0549 – connected camera
ID: 1203019
zł279.10
Tax included

zł226.91 tax excl.

GMSL2 camera extension kit with an 8 MP Sony IMX219 image sensor, designed for Raspberry Pi platforms, enabling video transmission over distances of up to 15 m using a single coaxial cable. ArduCam B0549

4 weeks
Awaiting delivery
Kamami is the official distributor of ArduCAM cameras and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

The ArduCam B0549 kit is designed for vision systems based on Raspberry Pi platforms, where long-distance image transmission is required while maintaining stable signal quality and low latency. The use of the GMSL2 interface enables reliable video data transmission over distances of up to 15 m, allowing flexible camera placement in robotic, industrial, and surveillance applications.

The kit features a Sony IMX219 image sensor with an 8 MP resolution (3280 x 2464), enabling high-detail image capture. The rolling shutter sensor operates with a GMSL2 transmission path based on Analog Devices SerDes technology, providing stable video signal transmission and power delivery using the Power-over-Coax configuration.

The use of a single coaxial cable simplifies system installation, reduces cable count, and lowers overall weight and wiring complexity. The kit maintains backward compatibility with selected GMSL1 serializers, enabling upgrades of existing installations. The solution is intended for applications in robotics, surveillance, industrial automation, precision agriculture, IoT systems, and smart city infrastructure.

Note!

Achieving transmission distances of up to 15 m requires the use of high-quality FAKRA cables; not all commercially available cables meet this requirement.

Features

  • Image Sensor
    • Sensor: Sony IMX219
    • Sensor type: CMOS
    • Sensor resolution: 8 MP
    • Shutter type: Rolling shutter
    • Optical format: 1/4"
    • Pixel size: 1.12 µm x 1.12 µm
    • Active sensor area: 3280 x 2464
  • Video Output
    • Output format: RAW10
    • Video modes
    • 1920 x 1080 @ 47 fps
    • 1640 x 1232 @ 41 fps
    • 640 x 480 @ 206 fps
  • Lens
    • Focus type: Fixed
    • Lens mount: Factory-integrated
    • Focal length (EFL): 3.04 mm
    • Aperture: F2.0
    • Field of view (D/H/V): 80° / 62.2° / 48.8°
    • Focus range: 20 cm – infinity
    • IR filter: Integrated IR-cut filter
  • Interface and Transmission
    • Video interface: GMSL2
    • Power and data transmission: Power-over-Coax (PoC)
    • Maximum cable length: up to 15 m
    • Backward compatibility: support for selected GMSL1 serializers
    • Functionality and Compatibility
    • Supported platforms: Raspberry Pi
  • Power and Mechanics
    • Adapter board power supply: 5 V / 1 A
    • Camera power supply: 3.3 V / 500 mA
    • Maximum power consumption (kit): 6.6 W
    • Camera board dimensions: 24 x 25 mm
  • Environmental Conditions
    • Operating temperature: -20°C ~ 85°C

Kit includes

  • 1x ArduCam GMSL2 receiver board (Rx)
  • 1x ArduCam GMSL2 transmitter board (Tx)
  • 1x FAKRA Z female-to-female coaxial cable, length 1 m
  • 1x ArduCam IMX219 8 MP camera module
  • 1x 22–22 pin FPC cable, length 40 mm
  • 1x 22–22 pin FPC cable, length 80 mm
  • 1x 15–22 pin FFC cable, length 73 mm
  • 1x Mounting hardware set
1203019

Data sheet

Resolution
8MPx
Interface
GMSL2
Sensor
IMX219
IR filter
Yes
Lens assembly
none
