ArduCAM OV9281 1MP Global Shutter Monochrome NoIR Camera - module with 1MP camera OV9281 for Raspberry Pi
zł190.32 tax excl.
1 MPx camera module with OV9281 sensor working with Raspberry Pi. Equipped with a shutter and M12 lens mount, no IR filter. ArduCAM B0165
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description

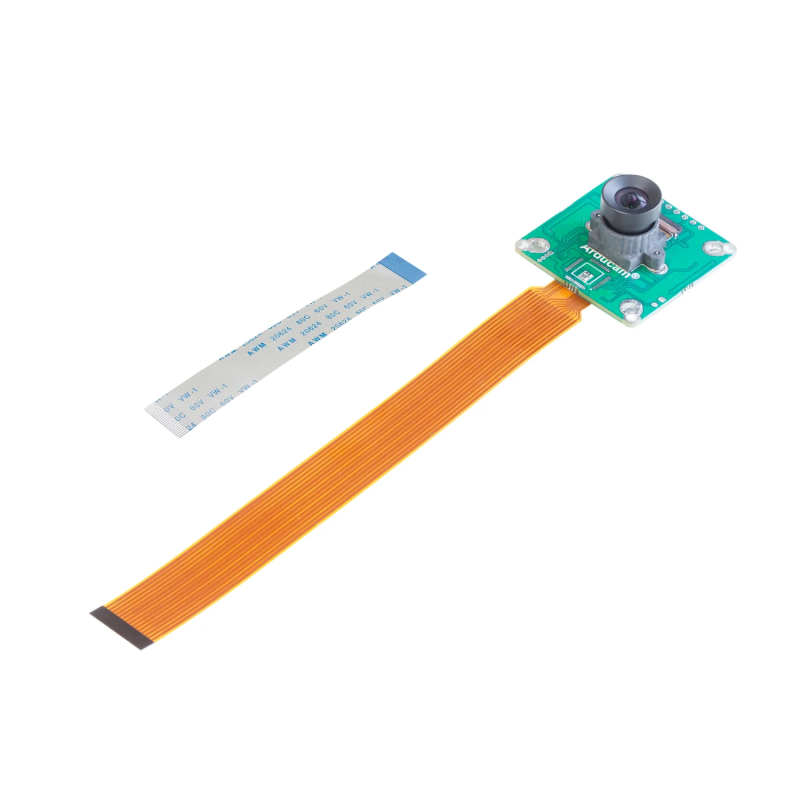

Monochrome camera module with a resolution of 1280 × 800 with a sensor OV9281 designed for minicomputers Raspberry Pi. It can be connected directly to the RPi CSI-2 camera interface. The camera is equipped with a lens with a viewing angle of 70°. Arducam OV9281 (Rev. B) is compatible with the official V4L2 camera driver, and the shutter and excellent low-light sensitivity allow the module to be used for any application that requires gesture detection, tracking, and depth and motion detection. The camera does not have an IR filter and is therefore sensitive to infrared light. The set with the camera includes a 15-pin tape for connecting the camera to the Raspberry Pi model B and A, and a 22-pin tape for the Raspberry Pi Zero 2W and the Compute module.
Features
- Works with all versions of the Raspberry Pi
- Matrix: OV9281 (monochrome)
- Resolution: 1 Mpx (1280x800 pixels)
- Optical size: 1/4 inch
- Pixel size: 3 μm x 3 μm
- No IR filter
- Focusing range: 30 cm to infinity
- Output interface: 2-lane MIPI CSI-2
- Output formats: 8/10-bit BW RAW
- Dimensions: 40 x 40 mm
- Lens Specifications: FoV - 70°. EFL - 2.8mm, F2.8, M12
Kit contains
- Arducam Monochrome Global Shutter OV9281 MIPI 1 MP with lens
- FPC tape 80 mm, 22-pin, 0.5 mm
- FPC tape 150mm 15pin 1.0mm to 22pin 0.5mm
Data sheet
- Resolution
- 1 MPx
- Interface
- MIPI CSI-2
- Sensor
- OV9281
- IR filter
- No
- Lens assembly
- M12
