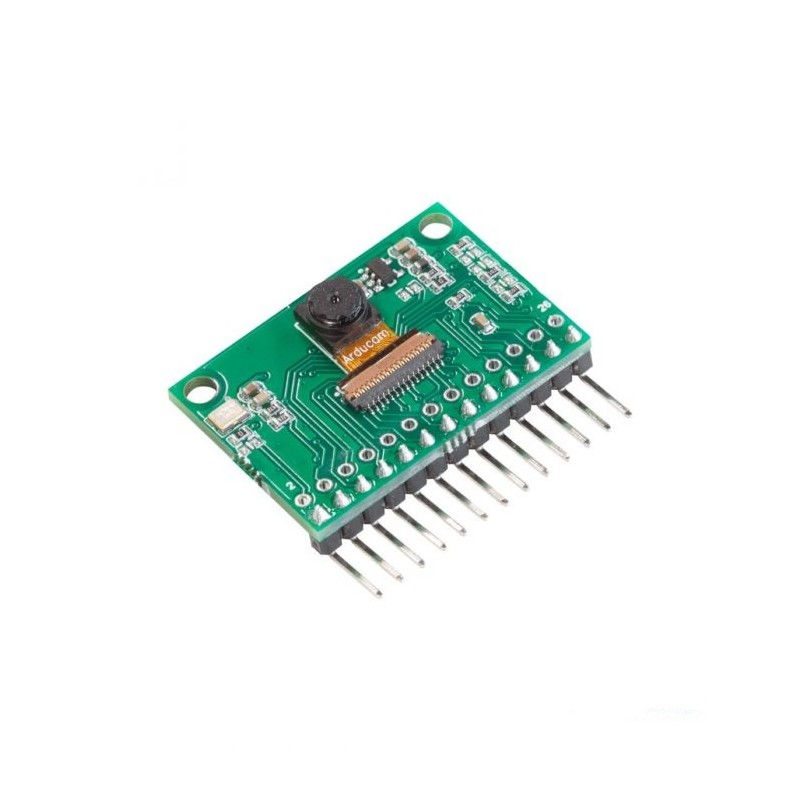

HM0360 VGA Camera - module with a VGA camera HM0360 0.3MP for Raspberry Pi Pico
ID: 587977
5906623404513
zł113.95
Tax included
zł92.64 tax excl.
Monochrome VGA camera module with HM0360 sensor working with Raspberry Pi Pico. It uses 1 bit video interface and I2C to configure the registers. ArduCAM B0319
Description
A monochrome camera module with a resolution of 0.3MP with a HM0360 sensor designed for Raspberry Pi Pico. It is characterized by very low power consumption, resolution up to VGA, 1-bit video data interface and synchronization. This makes the camera ideal for building machine vision projects and Always on Serivce applications with energy-saving microcontrollers. For communication, it uses the 1-lane MIPI CSI2 interface, 1, 2, 4 or 8 bit video interface and I2C for register configuration. Full documentation and implementation examples are available on the product page.
Features
- Ultra Low Power Mode
- Automatic wake up and sleep with programmable event interrupt
- Data format that supports 1-bit, 4-bit and 8-bit protocol
- I2C serial interface
- Built-in oscillator
- Resolution: 640x480 px
- Pixel size: 3.6 µm x 3.6 µm
- Diagonal (Optical Format): 2.88 mm (1/6 inch)
- Color filter table: Monochrome and Bayer
- Frame rate: QQVGA 1FPS to VGA 60FPS
- CRA (maximum): 35.74º
- Reference clock: 6 - 24 MHz
- Serial interface (I2C): 2-wire, max. 1 MHz
- Estimated Power Consumption (including IO with 5 pF load): QVGA (S2) 2FPS 140 µA, QVGA 60FPS 3.2 mA, VGA 60FPS 7 mA
- Readout Modes: Full (VGA), Bin2 (Mono) / Sub2, Bin4 (Mono) / Sub4
- S / N ratio max .: 45.5 dB
- Dynamic range (1x): 85dB
- Sensitivity: 5.5V / Lux-sec @ 530nm, 15V / (uW-cm-2 sec) @ 850nm
Kit contains
- HM0360 VGA Camera
- Connections cable
Cennection diagram
587977
Data sheet
- Resolution
- 0.3MPx
- Interface
- MIPI CSI-2
- Sensor
- HM0360
- IR filter
- Yes
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
