New products
New products
zł95.97 tax excl.

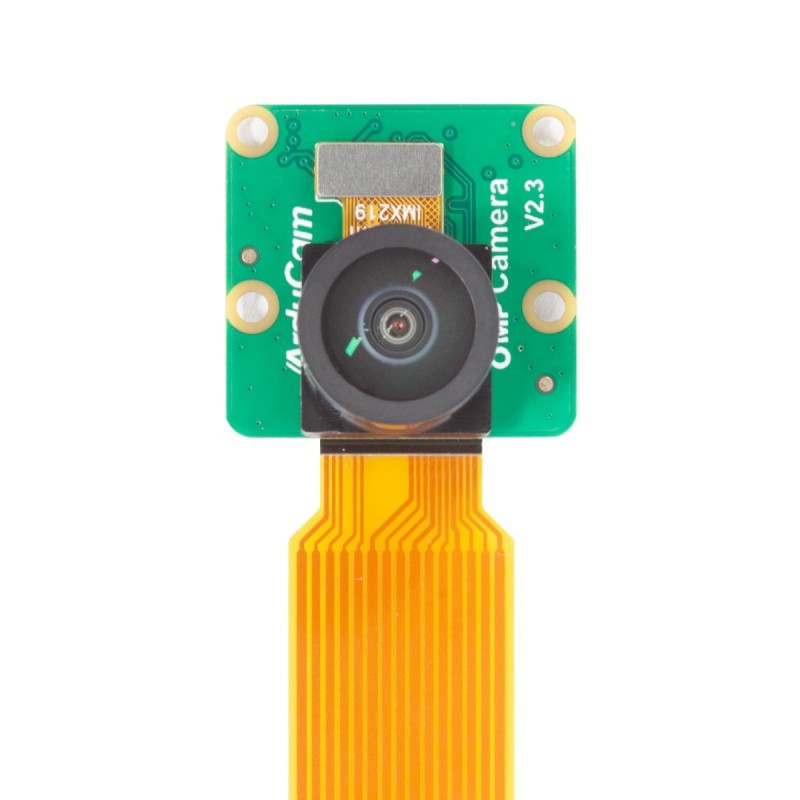

Module with 8 Mpx camera with IMX219 sensor and wide-angle lens. Designed for Nvidia Jetson Nano and Raspberry Pi Compute Module. ArduCAM B0179
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Module with IMX219 sensor designed for use with Raspberry Pi Compute Module or Nvidia Jetson Nano. The sensor used has an 8 Mpx matrix and allows you to record video at resolutions 21fps @ 8MP, 60fps @ 1080p, 180fps @ 720p. The camera is equipped with a wide-angle lens with a viewing angle of 175° with an M12 mount. It uses the MIPI CSI-2 interface specially designed to work with cameras. Can be used in drone, robot and 3D scanning applications.
Features
- Works with Raspberry Pi Compute Module or Nvidia Jetson Nano - not compatible with Raspberry Pi 3B, 3B+, 4B
- Matrix: IMX219
- Resolution: 8 Mpx
- Data format: 21fps @ 8MP, 60fps @ 1080p, 180fps @ 720p
- Optical size: 1/4 inch
- Viewing angle: 175(D) x 155(H) x 115(V)
- EFL: 3.5 mm
- F.NO: 2.8
- Output interface: MIPI CSI-2 2-lane/4-lane
- Output formats: 8/10-bit RAW
- Integrated IR filter
Kit contains
- Arducam IMX219 Camera Module with lens
- 15-pin FPC cable 15 cm
Data sheet
- Resolution
- 8MPx
- Interface
- MIPI CSI-2
- Sensor
- Sony IMX219
- IR filter
- Yes
- Lens assembly
- M12
