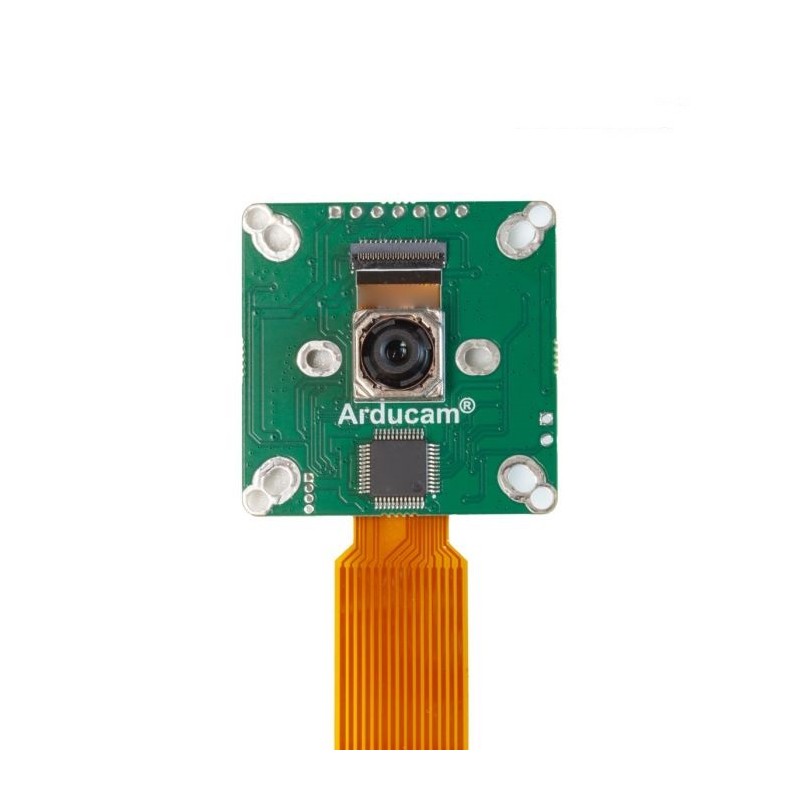

Arducam Pivariety 21MP IMX230 Color Camera - 21Mp IMX230 camera module for Raspberry Pi
search
  • Arducam Pivariety 21MP IMX230 Color Camera - 21Mp IMX230 camera module for Raspberry Pi
  • Arducam Pivariety 21MP IMX230 Color Camera - 21Mp IMX230 camera module for Raspberry Pi
ID: 586858
5906623403660
zł488.29
Tax included

zł396.98 tax excl.

The module with the IMX230 sensor, working with all versions of the Raspberry Pi. The sensor used has a matrix of 21 MP and allows you to record video at resolutions of 5344x4012/9fps. ArduCAM B0324

24h
Available
Available quantity: 1
Kamami is the official distributor of ArduCAM cameras and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

Module with IMX230 sensor that works with all versions of the Raspberry Pi. The sensor used has a 21 MP matrix and allows video recording at resolutions 5344x4012/9fps. The camera module uses ISP hardware features for better performance, as well as auto exposure, auto white balance and shading correction. Perfect for applications such as UAVs, drones, robotics, IoT or face recognition applications. Documentation with configuration examples is available on the product page. The set with the camera includes a 15-pin tape for connecting the camera to the Raspberry Pi model B and A, and a 22-pin tape for the Raspberry Pi Zero 2W and the Compute module.

Features

  • Sensor type: 21MP IMX230
  • Pixel Size: 1.12um x 1.12um
  • Optical Size: 1/2.4”
  • Active Pixels: 5344H × 4016V
  • Lens Spec: Focal length: 4.77mm, F.NO: 1.75±5%, FOV: horizontal 64deg
  • IR Sensitivity: Integral IR filter, visible light only
  • Focus Type: Motorized focus, programmable focus control
  • Frame Rate: 5344×4012@9 fps, 3840×2160@10 fps, 2592×1944@15 fps, 2656×2004@30 fps, 1920×1080@30 fps, 1280×960@120 fps, 1280×720@120 fps, 640×480@120 fps
  • Output Format: Output image format of JPG, YUV420, RAW, DNG; output video format of MJPEG, H.264
  • Sensor Output Format: RAW10
  • ISP Output  Format: Output image format of JPG, YUV420, RAW, DNG; output video format of MJPEG, H.264
  • Interface Type: 2-Lane MIPI
  • Board Size: 38x38mm

Kit contains

  • Arducam 21MP IMX230 ISP Camera Module
  • Adapter board
  • FPC tape 15-pin 1.0 mm 200 mm
  • Adapter FPC 15-pin 1.0 mm to 22-pin 0.5 mm 73mm
  • Acrylic case
586858

Data sheet

Resolution
21 MPx
Interface
MIPI CSI-2
Sensor
IMX230
IR filter
Yes
Lens assembly
none
