zł73.09 tax excl.

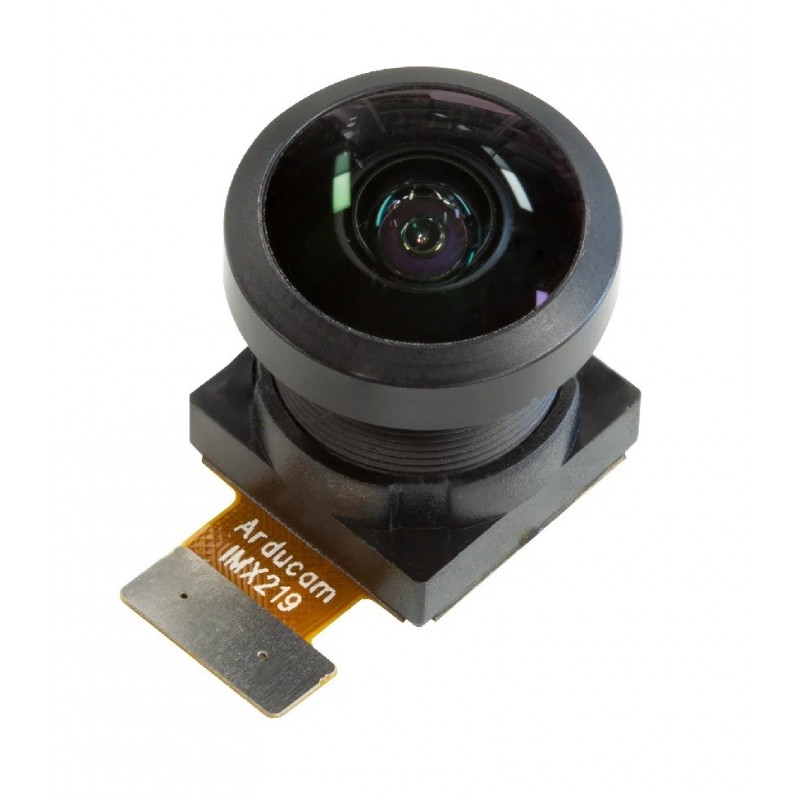

8 Mpx camera module with IMX219 sensor and wide-angle "fisheye" lens. To be used as a replacement on the RPI Camera Board V2. ArduCAM B0286
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Module with IMX219 sensor intended for use as a spare element on the RPI Camera Board V2. The sensor used has an 8 Mpx matrix and allows video recording at resolutions 30fps @ 8MP, 60fps @ 1080p, 180fps @ 720p. The camera is equipped with a wide-angle "fisheye" lens with a viewing angle of 220° with an M12 mount.
The module requires an RPI Camera Board V2 board to be connected to Raspberry Pi or Nvidia Jetson Nano minicomputers through a dedicated socket located on the top of the board. The module uses the MIPI CSI-2 interface specially developed for cooperation with cameras.
Attention!
The set does not include the RPI Camera Board V2 board necessary to start the camera.Features
- Works with all versions of Raspberry Pi or Nvidia Jetson Nano - RPI Camera Board V2 is required for connection
- Matrix: IMX219
- Resolution: 8 Mpx
- Optical size: 1/4 inch
- Viewing angle: 220(H)
- EFL: 0.76mm
- F.NO: 2.1
- Output interface: 2-line/4-line MIPI serial output
- Output formats: 8/10-bit BW RAW
- IR filter
Data sheet
- Resolution
- 8MPx
- Interface
- MIPI CSI-2
- Sensor
- Sony IMX219
- IR filter
- Yes
- Lens assembly
- M12
