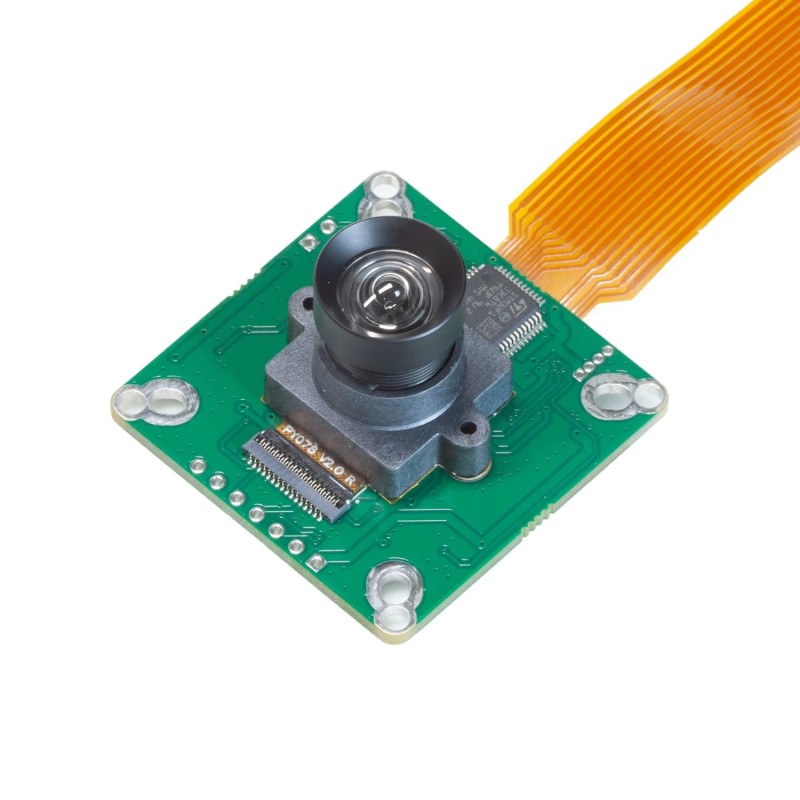

ArduCAM Full HD Color Global Shutter Camera - module with 2.3MP AR0234 camera for Raspberry Pi
ID: 586894
5906623403929
zł606.16
Tax included
zł492.81 tax excl.
The module with the AR0234 sensor, working with all versions of the Raspberry Pi. The sensor used has a matrix of 2.3 MP and allows you to record video at resolutions 1920x1200 @ 60fps. ArduCAM B0353
Description
The module with the AR0234 sensor, working with all versions of the Raspberry Pi. The sensor used has a matrix of 2.3 MP and allows you to record video at resolutions 1920 × 1200 @ 60fps. The camera module uses ISP hardware features for better performance, as well as auto exposure, auto white balance and shading correction. Perfect for applications such as UAVs, drones, robotics, IoT or face recognition applications. Documentation with configuration examples is available on the product page. The camera kit includes a 15-pin ribbon cable for connecting the camera to Raspberry Pi models B and A, and a 22-pin ribbon cable for connecting to Raspberry Pi 5 and Raspberry Pi Zero 2W.
Features
- Sensor type: 2.3MP AR0234
- Pixel Size: 3 µm x 3 µm
- Optical Size: 1/2.6 "
- Active pixels: 1920Hx1200V
- Lens Specs: Focal Length: 3.6mm, F.NO: 3.0, FOV: 120° (D) / 90° (H) / 75° (V)
- IR sensitivity: integrated IR filter, only visible light
- Focus type: programmable focus control, autofocus
- Frame rate: 1920 × 1200 @ 60fps, 1920 × 1080 @ 60fps, 1280 × 720 @ 120fps
- Output Format: JPG, YUV420, RAW, DNG Image Format; MJPEG, H.264 video format
- Sensor output format: RAW10
- ISP: picture format: JPG, YUV420, RAW, DNG; MJPEG, H.264 video format
- Interface type: 2-line MIPI
- Dimensions: 38 x 38 mm
Kit contains
- ArduCAM Full HD Color Global Shutter Camera
- FPC 15-pin 150 mm tape
- FPC tape 15-pin/22-pin 150 mm
586894
Data sheet
- Resolution
- 2,3 MPx
- Interface
- MIPI CSI-2
- Sensor
- AR0234
- IR filter
- Yes
- Lens assembly
- M12
