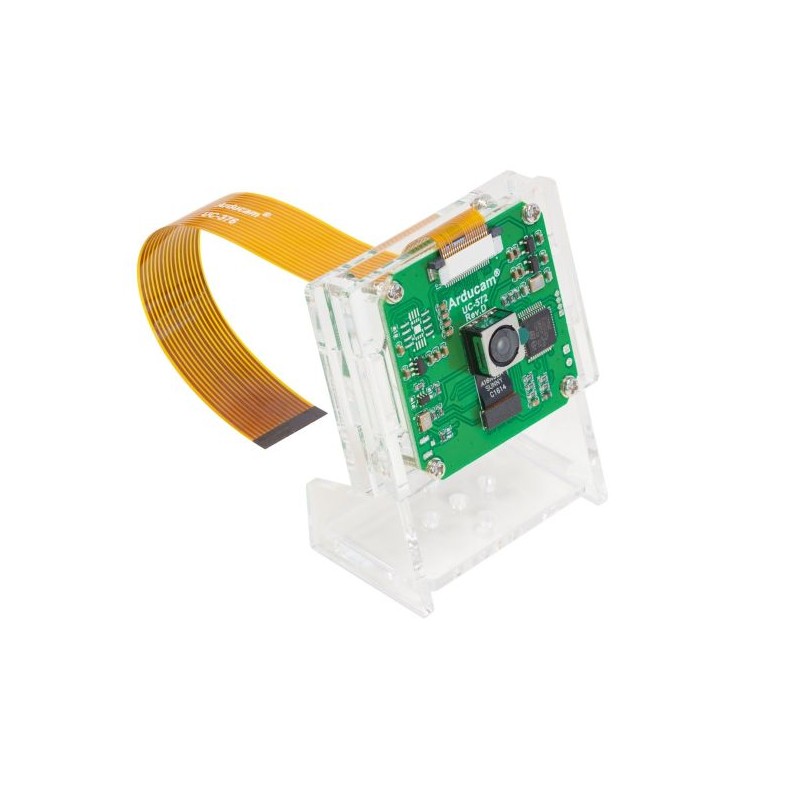

ArduCAM Pivariety 16MP IMX298 Color Camera - 16MP IMX298 camera module for Raspberry Pi
ID: 586857
5906623403653
zł395.69
Tax included
zł321.70 tax excl.
Module with IMX298 sensor that works with all versions of the Raspberry Pi. The sensor used has a 16 MP matrix and allows video recording at resolutions 4640x3472/10fps. ArduCAM B0323
Description
Module with IMX298 sensor that works with all versions of the Raspberry Pi. The sensor used has a 16 MP matrix and allows video recording at resolutions 4640x3472/10fps. The camera module uses ISP hardware features for better performance, as well as auto exposure, auto white balance and shading correction. Perfect for applications such as UAVs, drones, robotics, IoT or face recognition applications. Documentation with configuration examples is available on the product page. The set with the camera includes a 15-pin tape for connecting the camera to the Raspberry Pi model B and A, and a 22-pin tape for the Raspberry Pi Zero 2W and the Compute module.
Features
- Sensor type: 16MP IMX298
- Pixel size: 1.12um x 1.12um
- Optical Size: 1 / 2.8 "
- Active pixels: 4656H × 3496V
- Lens Specs: Focal Length: 4.04mm, F.NO: 2.0 ± 5%, FOV: Horizontal 62 degrees
- IR sensitivity: integrated IR filter, only visible light
- Focus Type: Programmable Focus Control
- Frame rate: 4640 × 3472 @ 10 fps, 2320 × 1732 @ 20 fps, 3264 × 2464 @ 15 fps, 3840 × 2160 @ 15 fps, 2592 × 1944 @ 20 fps, 1920 × 1080 @ 30 fps, 1280 × 800 @ 45 fps, 1280 × 720 @ 50 fps
- Sensor output format: RAW10
- ISP Output Format: JPG, YUV420, RAW, DNG output image format; MJPEG, H.264 output video format
- Interface type: 2-line MIPI
- Dimensions: 40 x 40 mm
Kit contains
- Arducam 16MP IMX298 ISP Camera Module
- Adapter board
- FPC tape 15-pin 1.0 mm 200 mm
- Adapter FPC 15-pin 1.0 mm to 22-pin 0.5 mm 73mm
- Acrylic case
586857
Data sheet
- Resolution
- 16 Mpx
- Interface
- MIPI CSI-2
- Sensor
- IMX298
- IR filter
- Yes
- Lens assembly
- none
