IMX327 2MP IR-CUT Starlight - camera for Raspberry Pi 90° - Waveshare 33322
ID: 1202633
zł135.23
Tax included
zł109.94 tax excl.
2 MP camera based on the Sony IMX327 starlight sensor, equipped with a mechanical IR-CUT filter and a fixed-focus lens with a 90° field of view, designed for Raspberry Pi via the CSI interface. Waveshare IMX327 2MP IR-CUT Camera (A)
Description

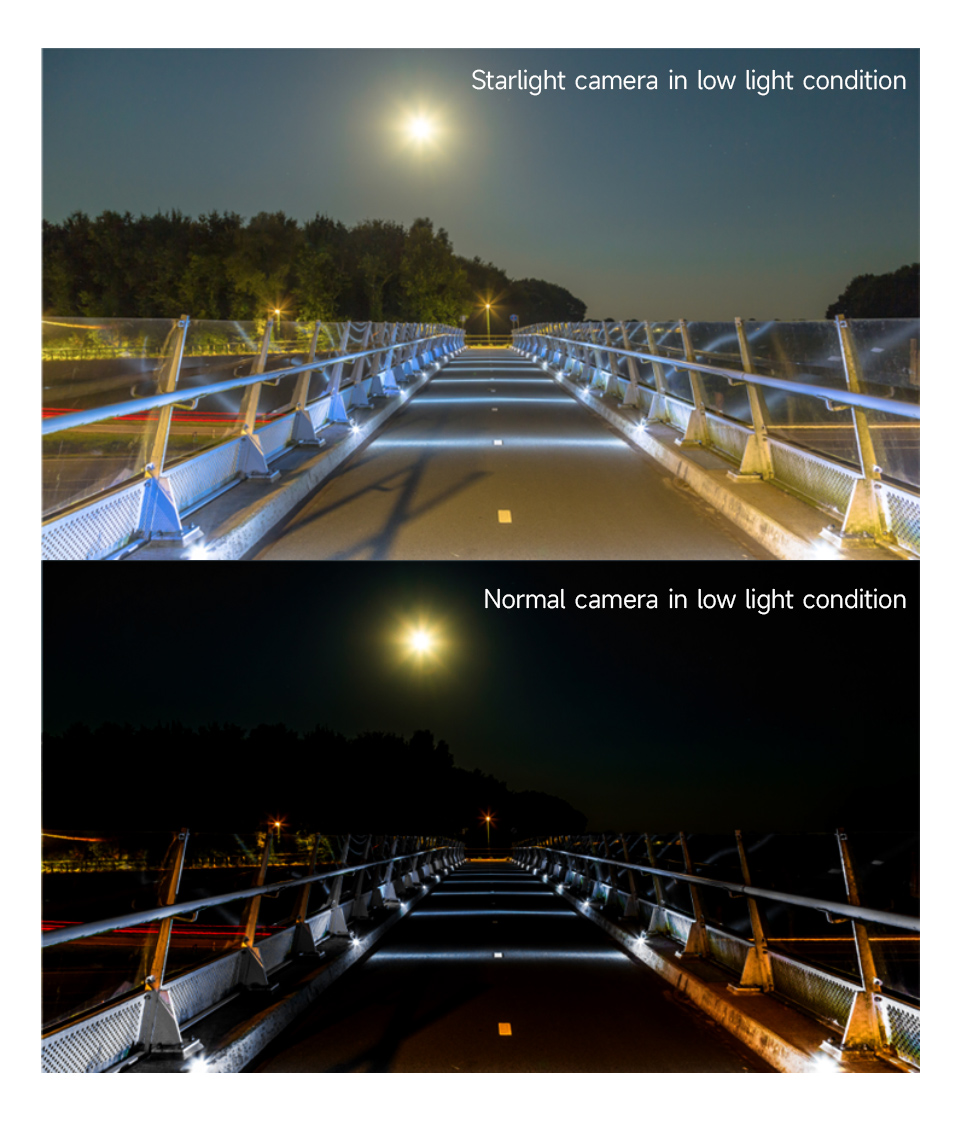

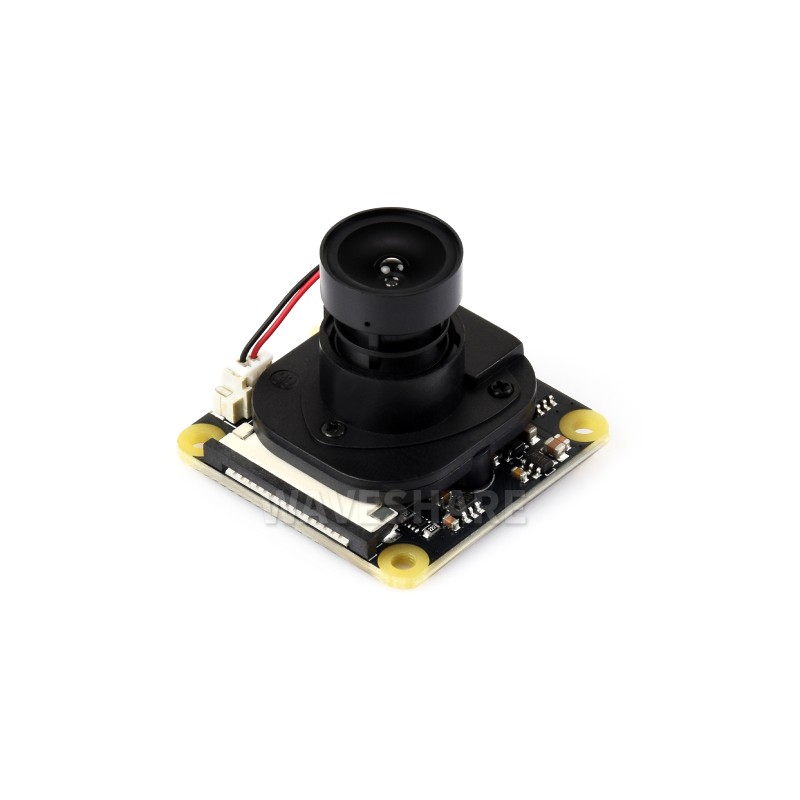

IMX327 2MP IR-CUT Camera (A) is a camera module designed for vision systems based on Raspberry Pi. The integrated Sony IMX327 starlight sensor enables image capture in low-light conditions, providing high sensitivity and low noise.
The module is equipped with a mechanical IR-CUT filter, which improves color accuracy in daytime operation by blocking infrared radiation. The fixed-focus lens with a 90° diagonal field of view provides wide scene coverage, making the camera suitable for monitoring, vision systems, and IoT projects.
Communication with the host board is handled via the CSI interface, allowing direct connection to Raspberry Pi without additional converters. The camera is suitable for use in monitoring systems, image recognition, AI projects, automation, and educational applications.
Note!
The camera supports Raspberry Pi 5 / 4B / 3B+ / 3A+ / Zero / Zero 2 W.
For use with Compute Module CM3 / CM3+ / CM4 / CM5, an additional CSI adapter board is required.
Features
- Image sensor
- Sensor: Sony IMX327
- Sensor type: CMOS
- Sensor size: 1/2.8 inch
- Resolution: 2 MP (1920 x 1080)
- Lens
- Focal length: 3.95 mm
- Aperture: F2
- Field of view: 90°
- Focusing: Fixed focus
- Distortion: <5%
- Image characteristics
- Camera type: Color
- Shutter type: Rolling shutter
- IR filter: IR-CUT (mechanical)
- Interface and compatibility
- Interface: CSI
- Compatibility: Raspberry Pi
- Physical properties
- Product type: Camera module
- Weight: 0.022 kg
Kit includes
- 1x IMX327 2MP IR-CUT Camera (A)
- 1x 22-pin to 15-pin FPC cable, approx. 15 cm
- 1x 15-pin FFC cable
1202633
Data sheet
- Resolution
- 2Mpx
- Interface
- CSI
- Sensor
- Sony IMX327
- IR filter
- Yes
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
