zł101.13
Tax included

zł82.22 tax excl.

This 8MP IMX219 camera, compatible with the Raspberry Pi, offers high-quality images with resolutions up to 3280x2464 pixels. The low-distortion M12 lens ensures precise image reproduction, ideal for surveillance, drones, and industrial projects. The wide 88° field of view and manual focus allow for adaptation to various operating conditions. ArduCAM B0394

24h
Available
Available quantity: 2
Kamami is the official distributor of ArduCAM cameras and accessories. All products of this brand in our offer are original and come directly from the manufacturer.

Description

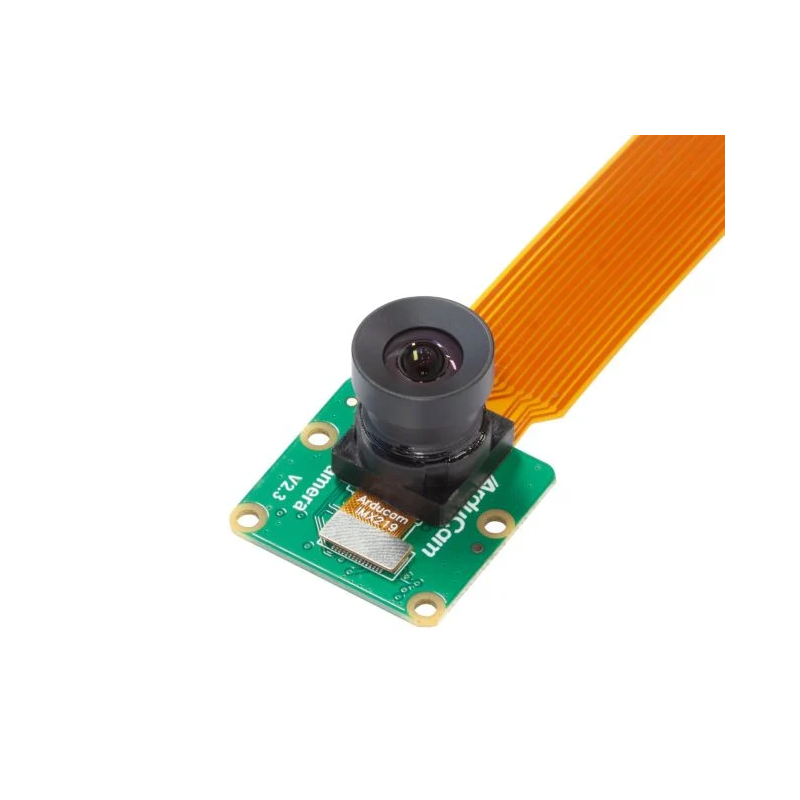

The ArduCAM 8MP IMX219 with Low Distortion M12 Lens is a high-quality camera module designed for use with Raspberry Pi boards, including the latest Raspberry Pi 5, 4B, 3B+, Zero 2W, and others. Equipped with the Sony IMX219 8MP sensor, it delivers images at resolutions up to 3280×2464 pixels. Its key feature is the use of a low distortion M12 lens (<3%), making the module ideal for applications requiring precise image reproduction. The camera provides excellent photo and video quality, accurate color rendering, and strong low-light performance. Thanks to a wide 88° (D) field of view and manual focus adjustment, it’s a perfect choice for surveillance, drones, autonomous vehicles, astrophotography, and industrial use. The module is easy to set up and ready to operate with the included FPC cables.

Features

  • Image sensor: Sony IMX219
  • Photo resolution: 3280 × 2464 pixels (8 MP)
  • Video modes: 1080p47, 1640×1232p41, 640×480p206
  • Pixel size: 1.12 µm x 1.12 µm
  • Sensor size: 1/4"
  • IR-cut filter (visible light only)
  • Focal length: 2.8 mm
  • Aperture: F2.8
  • Focus type: Manual
  • Field of view (FOV): 88° (D), 75° (H), 60° (V)
  • Lens mount: M12
  • Lens distortion: <3%
  • Peak current consumption: up to 300 mA
  • Compatibility: Raspberry Pi 5 / 4B / 3B+ / 3B / 2B / Zero / Zero 2W
  • Dimensions: 24 × 25 mm

Kit contains

  • IMX219 camera module with M12 lens
  • 15 cm FPC cable (15-22pin)
  • 15 cm FFC cable (22-22pin)
1195253

Data sheet

Resolution
8MPx
Interface
CSI
Sensor
Sony IMX219
IR filter
Yes
Lens assembly
M12
