IMX219-120-4Lane 8MP - camera module with 8MP IMX219 sensor FOV 120° for Raspberry Pi 5
ID: 1196955
5902186300996
zł94.99
Tax included
zł77.23 tax excl.

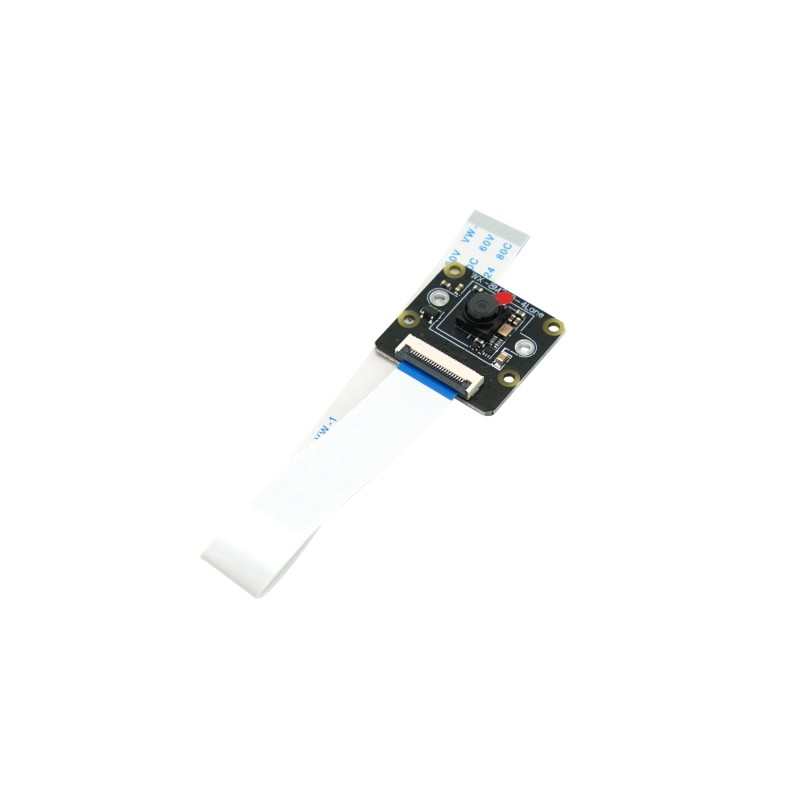

IMX219-120-4Lane 8MP camera module for Raspberry Pi 5, offering a 3280×2464 pixel image resolution and a 120° wide viewing angle. With its MIPI-CSI-4Lane interface and compact design, it is ideal for monitoring, robotics and machine vision systems. DFRobot SEN0631
Description

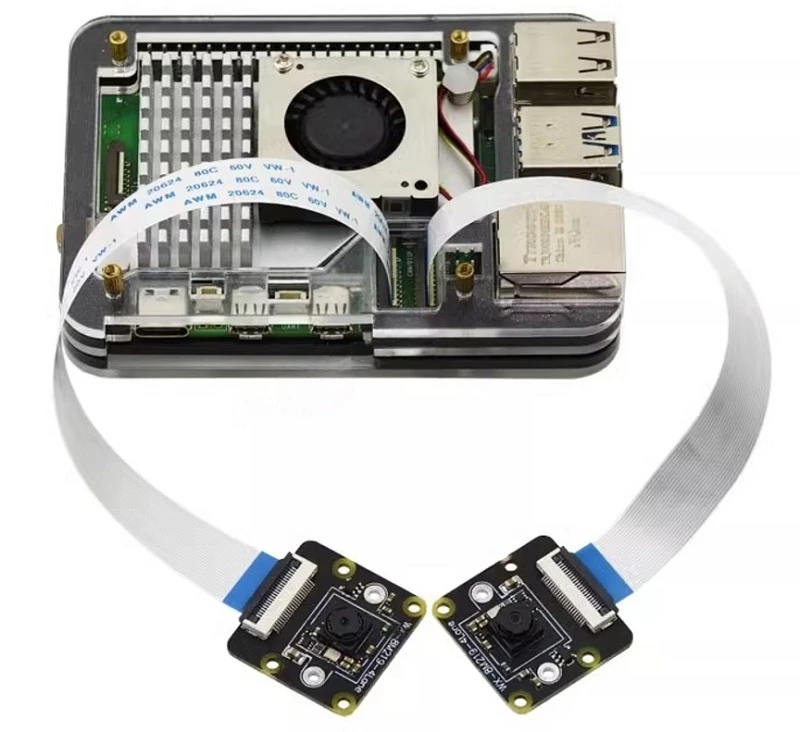

The IMX219-120-4Lane 8MP Camera Module is a high-performance imaging solution specifically designed for the Raspberry Pi 5. Equipped with the sensitive Sony IMX219 image sensor, it delivers sharp and detailed images at a resolution of 3280x2464 pixels. Thanks to its wide 120° field of view, it captures expansive scenes without noticeable distortion, making it ideal for surveillance, visual inspection, and robotics or machine vision projects. The modern MIPI-CSI-4Lane interface enables fast data transmission, ensuring smooth real-time image and video capture. The module provides full compatibility with the Raspberry Pi 5 through a 22-pin 0.5mm pitch connector, allowing for easy and quick system integration. Its high resolution, low distortion, and compact size make it an excellent choice for demanding technological applications.
Features
- Image Sensor: Sony IMX219
- Resolution: 3280x2464 pixels
- Camera Type: Color
- Shutter Type: Rolling shutter
- Focus Type: Fixed focus
- CMOS Sensor Size: 1/4 inch
- Aperture: f/2.0
- Focal Length: 1.79mm
- Field of View: 120°
- Distortion: <1%
- Interface: MIPI-CSI-4Lane
- Ribbon Cable Specification: FPC-22Pin-0.5mm
- Lens Dimensions: 6.5 x 6.5 mm
- PCB Dimensions: 25 x 24 mm
Kit contains
- IMX219-120-4Lane 8MP Camera for Raspberry Pi 5
- FPC 22-pin Ribbon Cable
1196955
Data sheet
- Resolution
- 8MPx
- Interface
- CSI
- Sensor
- Sony IMX219
- IR filter
- Yes
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
