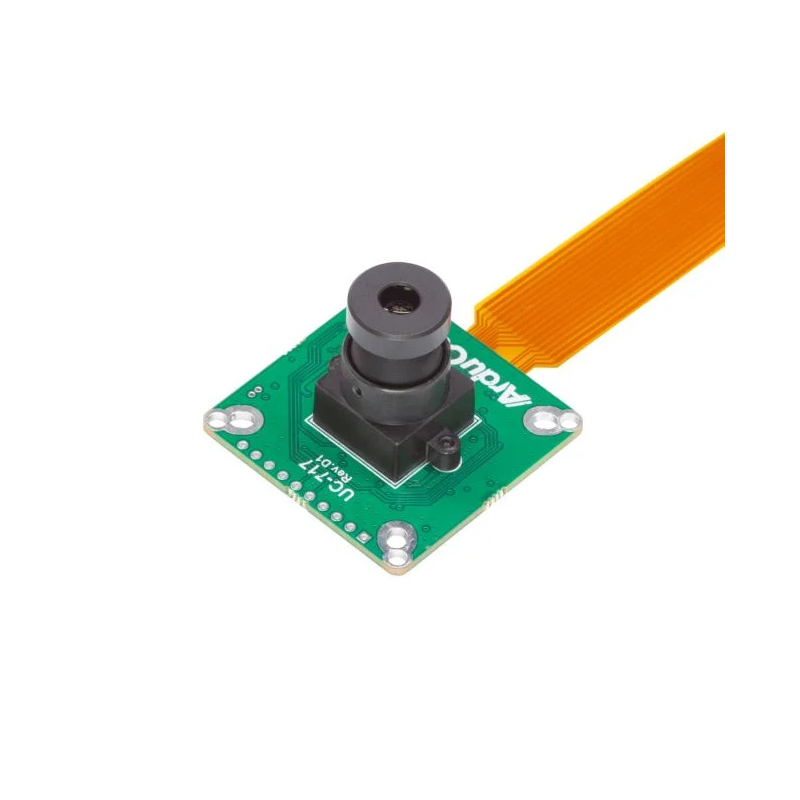

ArduCAM 1.58MP IMX296 Color Global Shutter Camera - camera with 1.58MP IMX296 sensor for Raspberry Pi
ID: 1195245
5902186307872
zł301.62
Tax included
zł245.22 tax excl.
The IMX296 1.58MP camera module with Global Shutter eliminates motion-related image distortion, making it ideal for dynamic applications like machine vision and AI systems. The camera features an M12 lens with a 45° field of view and manual focus, and supports RAW10 format and 1440x1080 video recording at 60 frames per second. Compatible with the Raspberry Pi and working with the libcamera and Picamera2 libraries, it's easy to integrate thanks to the included FPC ribbon cables and compact design. ArduCAM B0445
Description
The IMX296 1.58MP camera module is an advanced camera featuring a Global Shutter sensor, which eliminates motion distortions typical of traditional Rolling Shutter sensors. This makes it ideal for projects requiring high image precision in dynamic scenes, such as machine vision, automation, and AI systems. Equipped with an M12 lens with a 45° field of view (HFOV) and manual focus, it allows precise image adjustment in low-light conditions or macro photography. The camera supports RAW10 format and can record video at 1440x1080 resolution at 60 frames per second, providing high detail and smooth footage. This module is fully compatible with Raspberry Pi—no additional drivers are required, and it works with the libcamera and Picamera2 libraries. Thanks to its compact design and included FPC cables (15–22 pin and 22–22 pin), it can be easily integrated with various Raspberry Pi models, including Pi 5, 4, 3, and Zero. This is a reliable solution for industrial, hobbyist, and professional applications.
Features
- Image sensor: Sony IMX296 (Global Shutter)
- Resolution: 1.58 MP (1440 × 1080)
- Optical size: 1/2.9" (6.3 mm)
- Pixel size: 3.45 µm × 3.45 µm
- Shutter type: Global Shutter
- Color format: Quad-Bayer RGB
- Lens type: M12 (M2506ZH04)
- Focal length: 6 mm
- Field of view (FOV): 55° (D), 45° (H), 33° (V)
- Aperture (F.NO): F2.0
- Focus type: Manual focus
- Output format: RAW10
- Frame rate: 60 fps at 1440×1080 (RAW10)
- IR filter: Built-in IR-cut filter – visible light only
- Compatibility: Raspberry Pi 5/4/3/Zero/CM3/CM4
- Supports libraries: libcamera, Picamera2
- No additional driver installation required
- Dimensions: 38 × 38 mm
Kit contains
- ArduCAM 1.58MP IMX296 camera module with M12 lens
- FPC cable 15–22 pin, 150 mm
- FPC cable 22–22 pin, 150 mm
1195245
Data sheet
- Resolution
- 1,58 MP
- Interface
- CSI
- Sensor
- IMX296
- IR filter
- Yes
- Lens assembly
- M12
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
