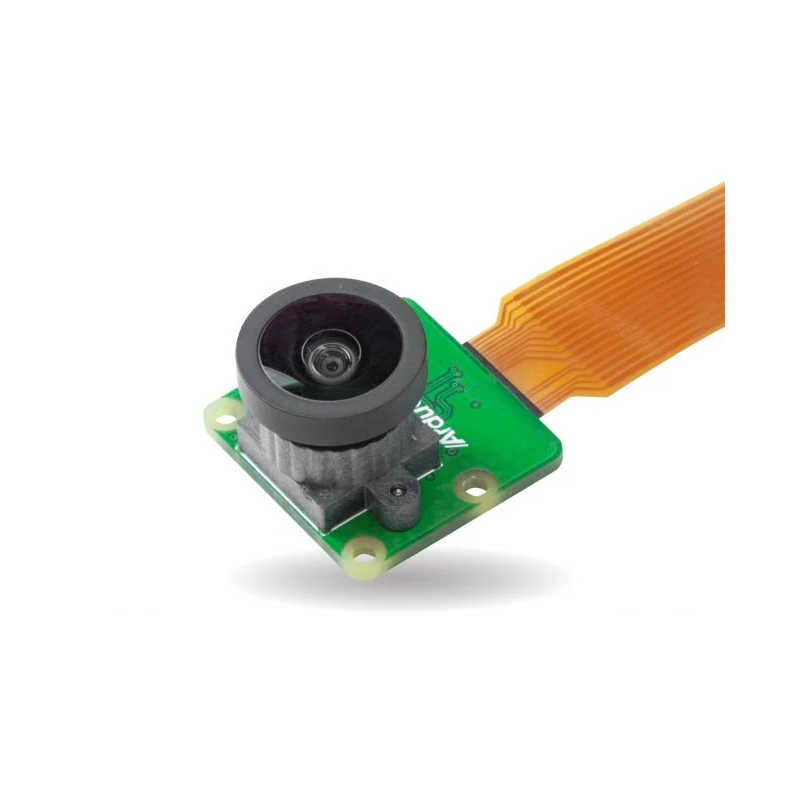

ArduCAM 16MP IMX519 Camera - camera with 16MP IMX519 sensor for Raspberry Pi
ID: 1195244
5902186307865
zł176.39
Tax included
zł143.41 tax excl.
A camera module based on the Sony IMX519 sensor, offering high-quality image and video at up to 16 MPx resolution. With a wide-angle M12 lens (122° FOV) and manual focus, it's ideal for projects like drones, robotics, surveillance, and Raspberry Pi-based vision systems. The camera supports 1080p@30fps and 720p@60fps recording, making it a great solution for real-time image transmission and analysis. ArduCAM B0449
Description
The ArduCAM IMX519 16MP module is an advanced camera designed for high-quality imaging and video, ideal for embedded systems and hobby projects. Equipped with a Sony IMX519 sensor offering 16 MP resolution and a wide-angle M12 lens with a 122° field of view, it delivers highly detailed images with vivid colors and sharp focus. Its compact size (25×24 mm) makes it a perfect fit for drones, robotics, surveillance systems, and any project that requires a small yet powerful camera. Manual focus adjustment allows the user to fine-tune settings for specific use cases, offering enhanced flexibility. The camera supports video output at 1080p at 30 fps and 720p at 60 fps, making it ideal for real-time recording, video streaming, and analysis. The module is fully compatible with all Raspberry Pi boards, including Raspberry Pi Zero (with appropriate cable included in the kit). It's an excellent choice for applications such as astrophotography, security systems, industrial automation, and mobile robotics.
Features
- Image sensor: Sony IMX519
- Resolution: 16 MP (4656 × 3496 pixels)
- Optical size: 1/2.53"
- Pixel size: 1.22 µm × 1.22 µm
- Shutter type: Rolling shutter
- Color filter: Quad-Bayer RGB
- Lens: M12 with manual focus adjustment
- Field of view: 122° (D), 110° (H), 94° (V)
- Aperture (F.NO): 2.85 ±5%
- Focal length: 2.87 ±5%
- IR-cut filter
- Output formats: RAW10, RAW8, COMP8
- Supported video: 1080p30, 720p60
- Compatibility: all Raspberry Pi models and Jetson Nano
- Dimensions: 25 × 24 mm (mounting hole spacing: 21 × 12.5 mm)
Kit contains
- ArduCAM IMX519 camera module with M12 lens
- 15-22 pin FPC cable
- 22-22 pin FPC cable
- Quick start guide
1195244
Data sheet
- Resolution
- 16 Mpx
- Interface
- CSI
- Sensor
- Sony IMX519
- IR filter
- Yes
- Lens assembly
- M12x0.5
