ArduCAM Raspberry Pi Official Camera Module V3 - camera with 12MP IMX708 sensor + case
ID: 1195247
5902186307889
zł297.00
Tax included
zł241.46 tax excl.
This 11.9MP Sony IMX708 sensor module offers HD recording and advanced PDAF and CDAF autofocus systems. Equipped with a 102° wide-angle lens and an IR-cut filter, it's ideal for surveillance, AI projects, and nature photography. The camera is fully compatible with the Raspberry Pi, supported by libcamera and Picamera2, and the included enclosure makes it easy to integrate into DIY projects. ArduCAM B0307
Description

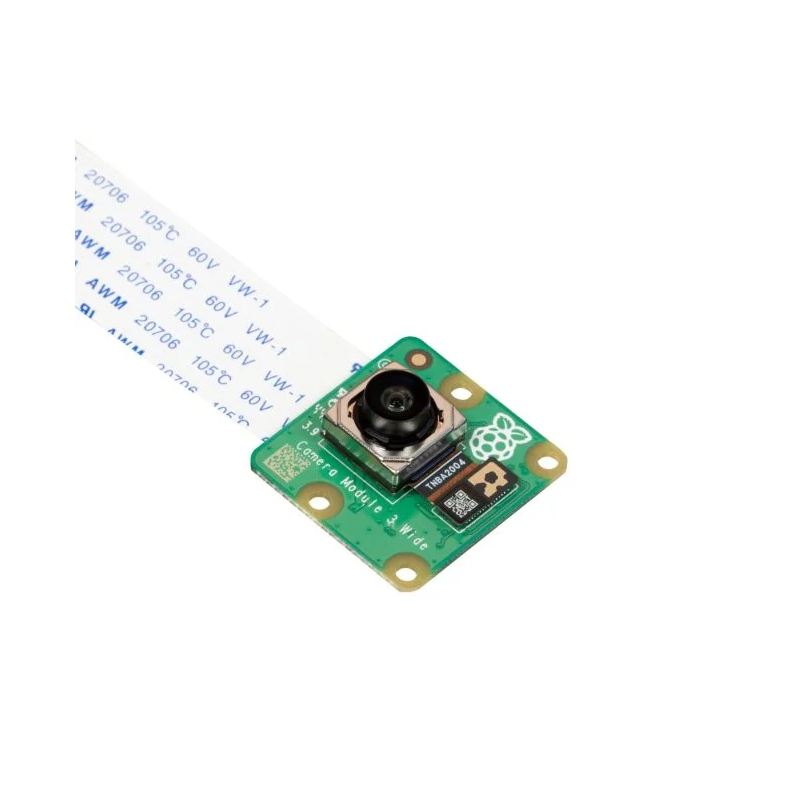

The Raspberry Pi Camera Module 3 is the latest official camera module from Raspberry Pi. It features the advanced Sony IMX708 sensor with a resolution of 11.9MP, enabling full HD video recording and high-detail photography. With integrated Phase Detection Autofocus (PDAF) and Contrast Detection Autofocus (CDAF) technologies, the image remains sharp and accurately focused even when the object distance changes.
The 102° wide-angle lens captures a large portion of the scene, making the camera ideal for surveillance, wildlife photography, or AI projects. The built-in IR-cut filter ensures realistic color reproduction under daylight conditions. The module is fully compatible with all Raspberry Pi models and supported by libcamera and Picamera2 libraries. Also included is a sturdy acrylic enclosure that protects the camera from damage and simplifies mounting in DIY projects. This is a comprehensive and modern solution for Raspberry Pi enthusiasts.
Features
- Sensor: Sony IMX708, CMOS, 11.9MP
- Maximum photo resolution: 4608 × 2592
- Video modes: 2304×1296@56fps, 2304×1296@30fps HDR, 1536×864@120fps
- Pixel size: 1.4μm × 1.4μm
- Sensor image area: 6.45 x 3.63 mm (7.4 mm diagonal)
- Optical size: 1/2.43"
- Lens: 2.75 mm, F2.2, autofocus (PDAF + CDAF)
- Field of view: 120°(D) x 102°(H) x 67°(V)
- IR filter: Integrated IR-cut – visible light only
- Compatibility: Raspberry Pi 5, 4B, 3B+, 3, 2, CM3, CM4, CM5, Zero W, Zero 2 W
- Library support: libcamera, Picamera2
- Dimensions: 25 × 24 mm
Kit contains
- Raspberry Pi Official Camera Module V3
- FPC cable 15pin-15pin, 150mm
- FPC cable 15pin-22pin, 150mm
- ABS acrylic enclosure
1195247
Data sheet
- Resolution
- 12 MPx
- Interface
- CSI
- Sensor
- IMX708
- IR filter
- Yes
- Lens assembly
- none
