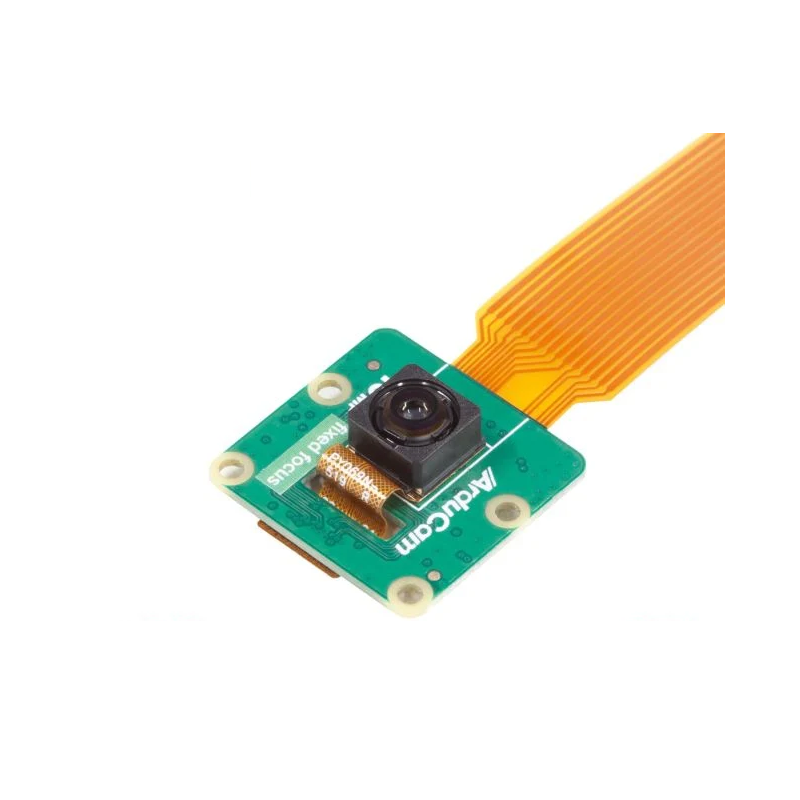

ArduCAM 16MP NoIR Camera - camera with 16MP IMX519 sensor for Raspberry Pi and Nvidia Jetson
ID: 1195262
5902186307964
zł138.84
Tax included
zł112.88 tax excl.
A high-quality, IR-free camera designed for Raspberry Pi and Nvidia Jetson, ideal for night vision, robotics, and multispectral analysis. Equipped with a Sony IMX519 sensor, it offers 16MP resolution for clear images even in low light and easy integration with Linux systems thanks to the V4L2 driver. Its compact design and fixed focus make it an excellent choice for modernizing mobile and surveillance projects. ArduCAM B0386
Description
The 16MP NoIR Camera module is a high-quality camera designed for use with Raspberry Pi and Nvidia Jetson single-board computers. The NoIR version (without an infrared filter) is specifically designed for applications where capturing infrared or wider spectrum images is crucial—such as night vision, multispectral analysis, or robotics. Thanks to the advanced Sony IMX519 sensor, the camera offers a 16-megapixel resolution, delivering more than twice the image quality compared to standard modules, at a lower price point.
The lens with fixed focus ensures a clear image without the need for manual adjustment, making this module an ideal solution for drones, surveillance systems, or mobile devices. Its compact size, compatible with V1/V2 cameras, allows for easy upgrades of existing projects without the need to modify enclosures. The camera delivers high-quality images and video even in low-light conditions. With support for the V4L2 driver, it easily integrates into Linux-based systems. This is an advanced yet cost-effective solution for projects requiring precise imaging in non-standard conditions.
Features
- Sensor: Sony IMX519, 16MP, backside illuminated
- Pixel size: 1.22 µm × 1.22 µm
- Sensor diagonal: 7.103 mm (type 1/2.534)
- Lens: f/1.75, focal length 4.28 mm
- Field of view (FOV): 66°(H) x 49.5°(V) x 80°(D)
- No IR-cut filter, infrared light sensitive
- Video modes: 1080p@30fps, 720p@60fps
- Ribbon cable length: 150 mm
- V4L2 compatibility – easy Linux integration
- Supported resolutions on Jetson Orin NX:
- 4656×3496@10fps
- 3840×2160@21fps
- 1920×1080@60fps
- 1280×720@120fps
Kit contains
- ArduCAM 16MP NoIR Camera Module
- 15 cm FPC cable 15-22 pin
- 15 cm FPC cable 22-22 pin
1195262
Data sheet
- Resolution
- 16 Mpx
- Interface
- CSI
- Sensor
- IMX519
- IR filter
- No
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
A small single board computer designed for the development of artificial intelligence and the Internet of Things (IoT). It integrates an ARM Cortex-A78 core CPU and NVIDIA Ampere GPU, as well as 8GB of RAM. Nvidia 900-13767-0010-001
zł2,597.29
Delivery date unknown
No product available!
A small single board computer designed for the development of artificial intelligence and the Internet of Things (IoT). It integrates an ARM Cortex-A78 core CPU and an NVIDIA Ampere GPU, as well as 16GB of RAM. Nvidia 900-13767-0000-001
zł3,946.76
Delivery date unknown
No product available!

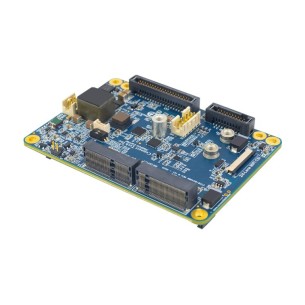

Base board dedicated to the Jetson Orin Nano and Orin NX modules. Ideal for creating state-of-the-art solutions based on artificial intelligence. It will prove itself as a platform for prototyping next-generation edge-AI products. Waveshare JETSON-ORIN-IO-BASE
