ArduCAM 16MP IMX519 Quad-Camera Kit - 4-Camera 16MP IMX519 Kit for Raspberry Pi and NVIDIA Jetson
ID: 1195263
5902186307971
zł758.70
Tax included
zł616.83 tax excl.
This kit includes four 16MP IMX519 cameras and a baseboard for the Raspberry Pi and NVIDIA Jetson AGX Orin, Orin Nano, and Orin NX platforms. The cameras are equipped with a Sony IMX519 sensor with autofocus that works in manual, automatic, and continuous modes, offering complete control over image sharpness. With single, dual, and quad modes, the kit is ideal for robotics, surveillance, and advanced computer vision systems, ensuring synchronization and high image quality. ArduCAM B0388
Description
The 16MP IMX519 Autofocus Synchronized Quad-Camera Kit is an advanced solution for users of Raspberry Pi and NVIDIA Jetson AGX Orin, Orin Nano, and Orin NX platforms. It allows simultaneous connection and synchronized operation of up to four cameras, each with a 16-megapixel resolution. The camera is equipped with a Sony IMX519 sensor and an autofocus mechanism that operates in manual, automatic, and continuous modes, providing full control over image focus.
The system offers three operating modes: single channel, synchronized dual channel, and four-channel quad mode, which combines images from four cameras into one with divided resolution. This kit is an ideal tool for projects requiring high resolution, wide field of view, and image synchronization, such as robotics, surveillance systems, or advanced computer vision applications. The kit is compatible with popular Raspberry Pi models and the latest JetPack versions for NVIDIA Jetson. Firmware updates are required for full functionality on the Jetson platform. Thanks to the Camarray HAT module and numerous cables, the kit can be easily integrated into existing projects.
Features
- Image sensor: Sony IMX519, 16MP (4656 × 3496 pixels)
- Optical format: 1/2.53"
- Field of view: 66° (H) × 49.5° (V)
- Focal length: 4.28 mm
- Focus type: Autofocus (manual, automatic, continuous)
- Focus range: from 10 cm to infinity
- Camera interface: 2-lane MIPI CSI-2
- Output: RAW10
- Data transfer rate: x1 CSI-2 2-lane, 1.0 Gbps/lane
- Supported operation modes: single, dual, and quad channel with synchronization
- Frame rates (Raspberry Pi): up to 4.5 fps at full resolution
- Frame rates (NVIDIA Jetson): up to 5 fps at full resolution (depending on JetPack version)
- Built-in IR-cut filter, sensitivity to visible light
- Camera module dimensions: 24 × 25 mm
- Camarray HAT dimensions: 65 × 55 mm

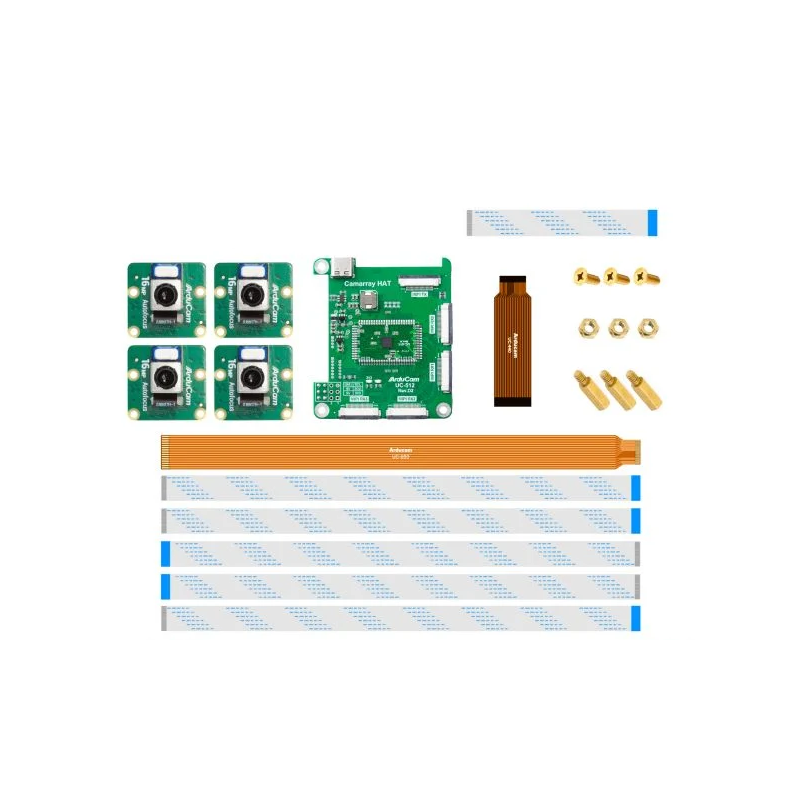

Kit contains
- 16MP IMX519 camera module
- UC-512 Camarray HAT
- 5 × 30cm 22-22pin cable
- 15-22pin 30cm ribbon cable
- 15-22pin 7cm ribbon cable
- 22-22pin 8cm ribbon cable
- Screw set
1195263
Data sheet
- Resolution
- 16 Mpx
- Interface
- MIPI CSI-2
- Sensor
- Sony IMX519
- IR filter
- Yes
- Lens assembly
- none
