ArduCAM 8MP IMX219 Night Vision Camera - camera with 8MP IMX219 sensor for Raspberry Pi
ID: 1195252
5902186307919
zł74.16
Tax included
zł60.29 tax excl.

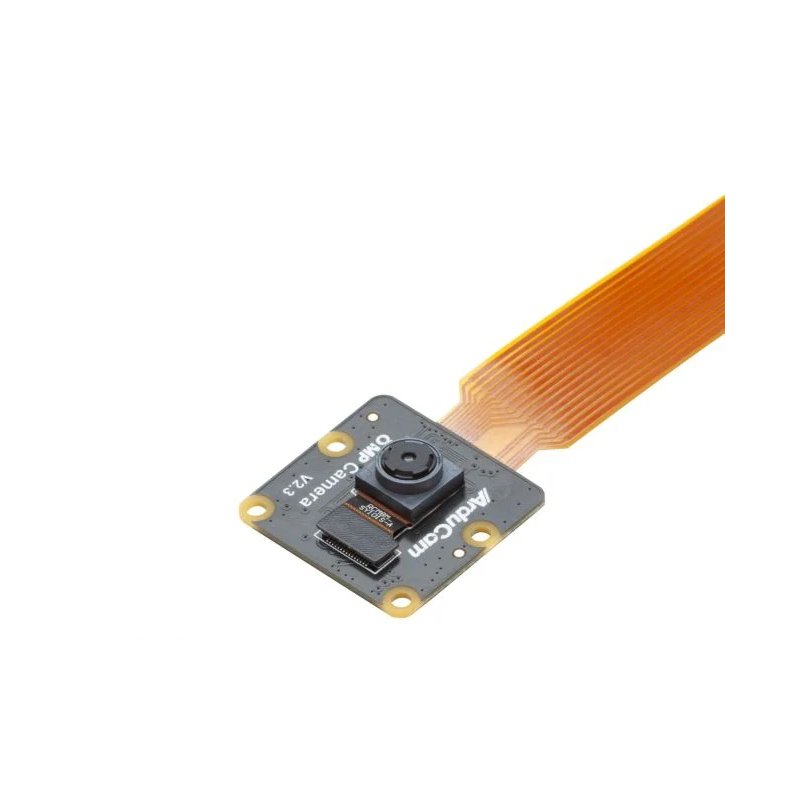

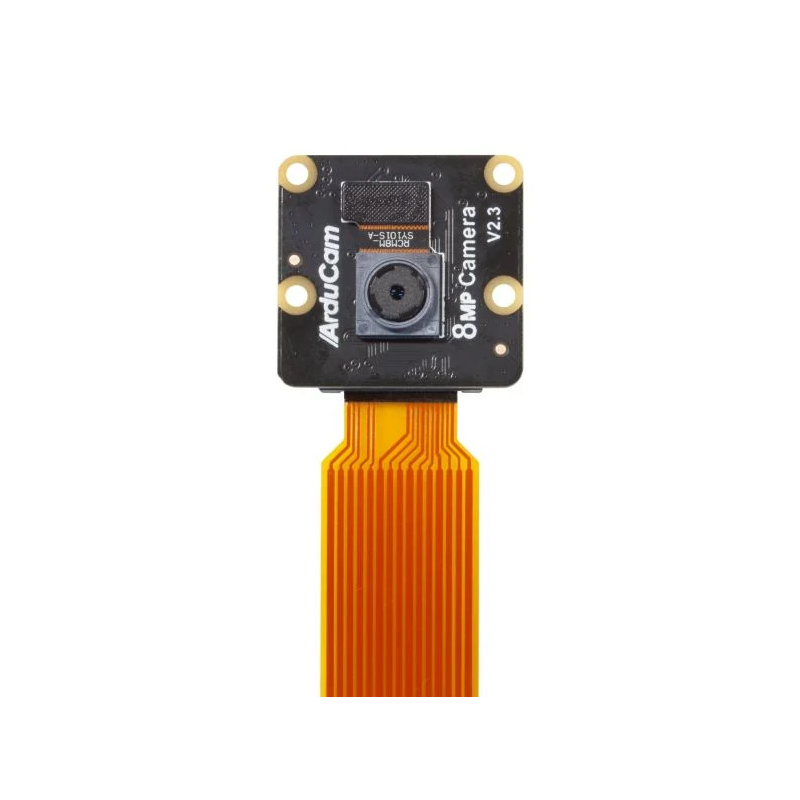

The 8MP NoIR camera is designed for low-light conditions and complete darkness. Utilizing a Sony IMX219 sensor without an IR filter, it captures images in infrared light, ideal for nighttime surveillance or wildlife observation. Compatible with the Raspberry Pi and equipped with a CSI connector, it provides high image quality and full support for standard resolutions and video modes. ArduCAM B0395
Description
The ArduCAM 8MP IMX219 Night Vision module is a specialized camera for the Raspberry Pi, designed for use in low-light conditions and complete darkness. Equipped with an 8 MP Sony IMX219 sensor, it delivers high image quality similar to the standard V2 module, but without an IR filter (NoIR), enabling infrared light capture. This makes the camera ideal for night surveillance, wildlife observation, and agricultural monitoring—such as nighttime crop inspection.
This module is popular among night photography enthusiasts and nature lovers. With additional IR LEDs, it can capture scenes invisible to the human eye without disturbing the environment. It supports standard Raspberry Pi video resolutions, such as 1080p and 640x480 at very high frame rates. Its compact board dimensions allow it to fit into most enclosures and DIY projects. It is fully compatible with popular Raspberry Pi models: 4B, 3B+, 3B, 2B, Zero & Zero W.
Features
- Image sensor: Sony IMX219
- Photo resolution: 3280 × 2464 pixels (8 MP)
- Supported video modes: 1080p47, 1640×1232p41, 640×480p206
- Pixel size: 1.12 µm x 1.12 µm
- Optical size: 1/4"
- IR sensitivity: No IR-cut filter (NoIR), infrared sensitive
- Focus type: Fixed focus
- Focal length: 3.04 mm
- Aperture: F2.0
- Field of view (FOV): 62.2° (H) × 48.8° (V)
- Minimum focus distance: 200 mm
- Lens type: Standard (stock lens)
- Peak current consumption: up to 300 mA
- Compatible with Raspberry Pi 4B / 3B+ / 3B / 2B / Zero / Zero W
- Dimensions: 25 x 24 mm
Kit contains
- Camera module with IMX219 NoIR sensor
- 15 cm FPC cable (15-22pin)
- 15 cm FPC cable (22-22pin)
1195252
Data sheet
- Resolution
- 8MPx
- Interface
- CSI
- Sensor
- Sony IMX219
- IR filter
- No
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
