ArduCAM IMX219 Auto Focus IR Sensitive (NoIR) Camera - camera with 8MP IMX219 sensor for Raspberry Pi
ID: 586990
5906623404315
€19.26
Tax included
€15.66 tax excl.
Camera module 8 MPx with IMX219 sensor and lens with a viewing angle of 77°. To be used as a replacement on the RPI Camera Board V2. ArduCAM B0190
Description
Module with IMX219 sensor intended for use as a spare element on the RPI Camera Board V2. The sensor used has an 8 Mpx matrix and allows video recording at resolutions 30fps @ 8MP, 60fps @ 1080p, 180fps @ 720p.
The module requires an RPI Camera Board V2 board to be connected to Raspberry Pi or Nvidia Jetson Nano minicomputers through a dedicated socket located on the top of the board. The module uses the MIPI CSI-2 interface specially developed for cooperation with cameras.
Attention!
The set does not include the RPI Camera Board V2 board necessary to start the camera.Features
- Works with all versions of Raspberry Pi or Nvidia Jetson Nano - RPI Camera Board V2 is required for connection
- Matrix: IMX219
- Resolution: 8 Mpx
- Optical size: 1/4 inch
- Viewing angle: 77,6° (D), 65° (H), 51° (V)
- EFL: 2.8mm
- F.NO: 2.2
- Autofocus
- Output interface: 2-lane MIPI serial output
- Output formats: 8/10-bit BW RAW
- No IR filter
586990
Data sheet
- Resolution
- 8MPx
- Interface
- MIPI CSI-2
- Sensor
- Sony IMX219
- IR filter
- No
- Lens assembly
- none
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
High quality 8 megapixel Sony IMX219 image sensor custom designed add-on board for Raspberry Pi, featuring a fixed focus lens. It\'s capable of 3280 x 2464 pixel static images, and also supports 1080p30, 720p60, and 640x480p90 video
€19.26 24hAvailable quantity: 143 AvailableFlex Cable for Raspberry Pi Camera - 100mm / 4"
€0.46 24hAvailable quantity: 647 AvailableFlex Cable for Raspberry Pi Camera - 200mm / 8"
€0.46 24hAvailable quantity: 276 AvailableFlexible cable (tape) 50 cm long, used to connect the camera module with Raspberry Pi computers. The tape has 15 wires and a pitch of 1mm
€0.70 Delivery date unknown No product available!
The latest version of the Raspberry Pi series: Raspberry Pi 4 model B with quad-core SoC (Broadcom BCM2711, Cortex-A72) working at 1.5GHz, 2GB RAM LPDDR4, Broadcom VideoCore VI.
€53.26 Delivery date unknown No product available!
The long-awaited Raspberry Pi 4 model B with the SoC Broadcom BCM2711 SoC (4 x Cortex-A72) running at 1.5GHz, 4 GB LPDDR4 RAM and the Broadcom VideoCore VI graphics chip
€66.76 24hAvailable quantity: 166 AvailableThe long-awaited Raspberry Pi 4 model B with the SoC Broadcom BCM2711 SoC (4 x Cortex-A72) running at 1.5GHz, 8 GB LPDDR4 RAM and the Broadcom VideoCore VI graphics chip
€87.46 24hAvailable quantity: 12 Available
Other products in the same category (16)
A set with four cameras equipped with IMX219 sensors with a resolution of 8 MPx and an adapter for Raspberry Pi minicomputers. ArduCAM B0178
€317.61 24hAvailable quantity: 1 AvailableOV5647 Camera Board /w M12x0.5 mount Lens fully compatible with Raspberry Pi. ArduCAM B0031
€32.52 24hAvailable quantity: 5 AvailableCamera module designed for RP2040 development boards. It uses the Himax HM01B0 sensor to achieve excellent performance in low light. ArduCAM B328
€14.63 24hAvailable quantity: 4 Available8 Mpx camera module with IMX219 sensor. The camera is intended for use as a replacement on the RPI Camera Board V2. ArduCAM B0180
Regular price€31.26€21.67 24hAvailable quantity: 2 AvailableThe camera module equipped with a modern Sony IMX708 sensor with a resolution of 11.9 MP, offers high quality photos and videos in Full HD resolution, ideally suited to demanding lighting conditions thanks to the HDR mode. The built-in lens offers a viewing angle of 75°. With an advanced autofocus system, a built-in IR-cut filter and full compatibility with the libcamera and Picamera2 libraries, the module is a versatile solution for applications in nature photography, monitoring and AI projects. ArduCAM B0312
€33.45 24hAvailable quantity: 1 AvailableCamera module with OV5647 sensor working with Raspberry Pi. Has no built-in IR filter and comes with a 130° Fisheye lens
€11.37 6 weeks No product available!
Camera module with Sony IMX219 image sensor with 8 MP resolution. It is compatible with Raspberry Pi. It supports MJPG and YUY2 data format. ArduCam B0196
€35.78 24hAvailable quantity: 5 Available8 MPx camera module with IMX219 sensor and wide-angle lens. To be used as a replacement on the RPI Camera Board V2. Waveshare IMX219-D160
€14.15 4 weeks No product available!
Official camera module set to work with Raspberry Pi minicomputers. Equipped with a Sony IMX708 sensor with a resolution of 12 Mpx and a lens with a viewing angle of 120 ° with autofocus. Raspberry Pi SC0874
€42.18 24hAvailable quantity: 23 AvailableMiniature camera module with OV5647 5MP sensor dedicated to Raspberry Pi Zero V1.3 and Zero W. Equipped with a lens with a viewing angle of 70°. Waveshare RPi Zero V1.3 Camera
€13.45 24hAvailable quantity: 4 AvailableCamera set with OV5647 5 MPx sensor, allows you to rotate the camera, control the angle of inclination and zoom. Works with Raspberry Pi. Swivel base included. ArduCAM B0167B5
€281.12 24hAvailable quantity: 2 AvailableModule with 8 Mpx camera with IMX219 sensor and wide-angle lens. Designed for Nvidia Jetson Nano and Raspberry Pi Compute Module. ArduCAM B0179
€27.81 24hAvailable quantity: 2 AvailableA set with a 64 MP camera and a 2 DOF control platform designed for Raspberry Pi minicomputers. The camera has an integrated IR filter and autofocus. The control platform is based on two digital servos that allow you to control the position of the camera in two dimensions. ArduCAM B0399B0283
€122.41 4 weeks No product available!
Camera module 8 MPx with IMX219 sensor and lens with a viewing angle of 77°. To be used as a replacement on the RPI Camera Board V2. ArduCAM B0182
€42.22 24hAvailable quantity: 3 Available- Raspberry Pi Camera Module, Fisheye Lens, Wider Field of View, Supports Night Vision€28.36 24hAvailable quantity: 2 Available

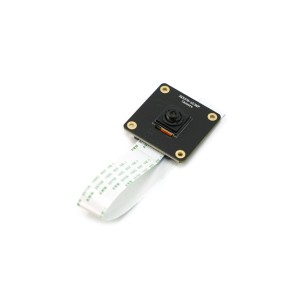

The IMX378-79 camera module features a Sony 12.3 MP (4056x3040 px) sensor with a 79° viewing angle, ideal for industrial and inspection applications requiring the highest image quality. With MIPI-CSI-2Lane interface, Raspberry Pi compatibility and low distortion, it provides smooth and precise image capture. DFRobot SEN0632
