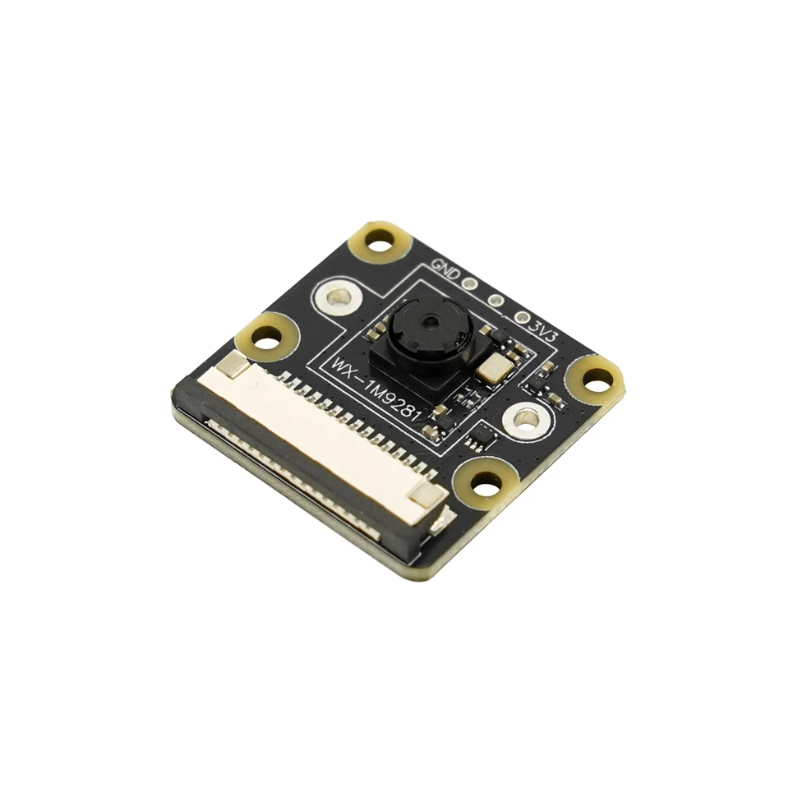

Global shutter camera module DFRobot SEN0634 OV9281 for Raspberry Pi 4B/5 (1MP, FOV 79°)
ID: 1201306
5902186330122
zł112.79
Tax included
zł91.70 tax excl.
DFRobot SEN0634 camera module with OV9281 sensor and global shutter allows capturing sharp images of fast-moving objects. High sensitivity in low-light conditions and full compatibility with Raspberry Pi 4B and 5 make it a suitable solution for projects requiring precise motion recognition and real-time image detection.
Description
The DFRobot SEN0634 camera module based on the OV9281 black-and-white sensor with global shutter technology enables the capture of dynamic scenes without the distortions characteristic of rolling shutter. By exposing all pixels simultaneously, it records sharp images even during fast movements, such as rotating fan blades. The resolution of 1280 × 800 pixels and pixel size of 3 µm × 3 µm allow effective operation even in low-light conditions, such as night monitoring or indoor applications. The lens with a focal length of 2.85 mm, aperture f/2.0, and integrated IR filter provides good image quality regardless of lighting conditions. The module is fully compatible with Raspberry Pi 4B and Raspberry Pi 5 – the set includes two FPC cables that enable quick and direct connection via the MIPI-CSI-2Lane interface.
Properties
- Image sensor: OV9281 (black-and-white)
- Global shutter
- Resolution: 1280 × 800 pixels
- Number of pixels: 1 MP
- Pixel size: 3 µm × 3 µm
- Sensor size: 1/4 inch
- Focal length: 2.85 mm
- Aperture: f/2.0
- Field of view: 79.3°
- Distortion: <1%
- Focus mode: fixed focus
- IR filter: integrated
- Interface: MIPI-CSI-2Lane
- Compatibility: Raspberry Pi 4B, Raspberry Pi 5
- Lens dimensions: 6.5 × 6.5 mm
- PCB dimensions: 24 × 24 mm
- Applications: gesture detection, head and eye tracking, motion and depth detection
Included
- OV9281 camera module
- 2 FPC cables for connection with Raspberry Pi
1201306
Data sheet
- Resolution
- 1 MPx
- Interface
- MIPI CSI-2
- Sensor
- OV9281
- IR filter
- Yes
- Lens assembly
- none
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
