zł248.57 tax excl.
Camera with a resolution of 5 MPx in a metal case with a USB interface. Equipped with a CMOS OV5648 sensor with a wide-angle lens with a viewing angle of 110°. ArduCAM B0454
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description

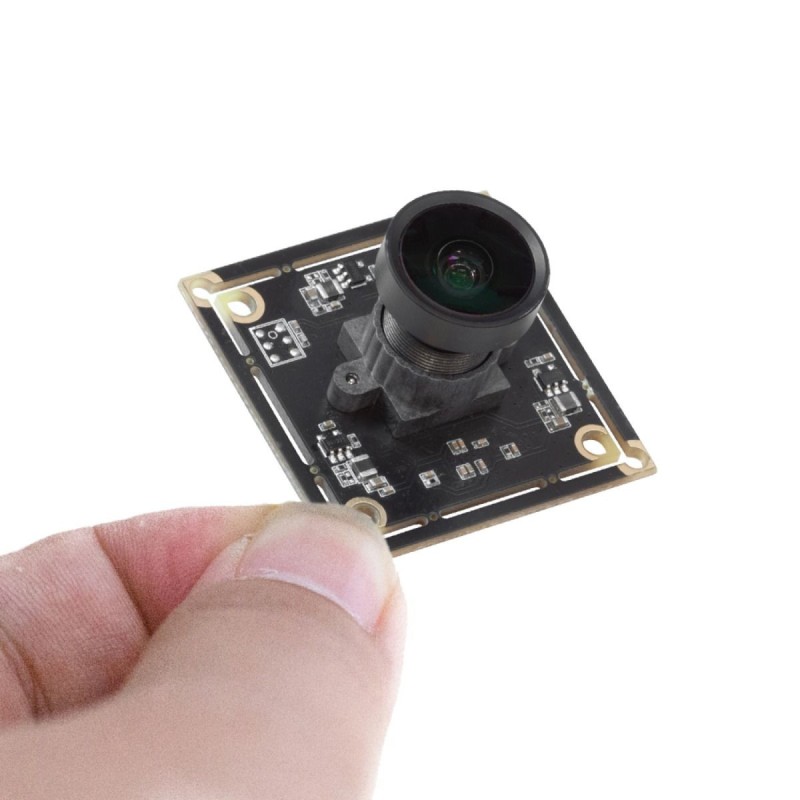

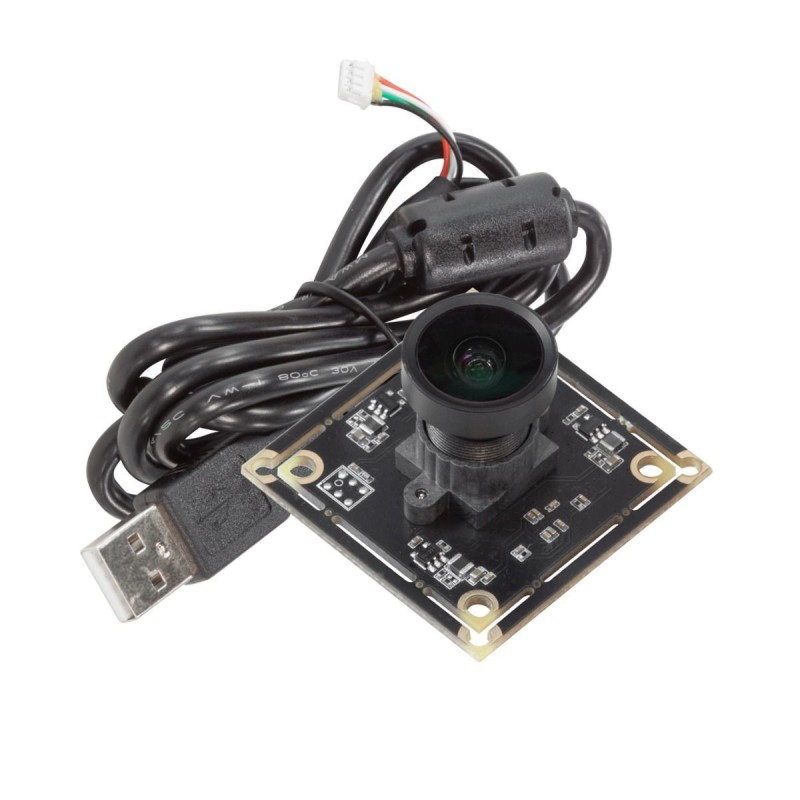

A camera with a USB interface equipped with a CMOS OV5648 1/4" sensor with a resolution of 5 MPx. It has an integrated IR filter and a 110° lens. The camera can take photos with a resolution of 2592x1944 and record videos at 15fps@2592x1944. It is powered from the USB port. The module works with native drivers (compatible with UVC) built into Windows, Linux, Mac and Android systems, thanks to which the installation of the camera is easy and intuitive. The board was enclosed in a protective casing placed on a stand. The camera will be used for monitoring 3D printing and videoconferencing.
Features
- Sensor: 1/4” CMOS OV5648
- Resolution: 5MP 2592x1944
- Pixel size: 1.4um x 1.4um
- Data format: MJPG/YUY2
- Frame rate: MJPG 15fps@2592 x 1944/2048 x 1536; 30fps@1080P/720P/1024x768/800x600; YUY2 5fps@720P/1080P; 10fps@1024x768; 15fps@800x600
- F.NO 2.5±10%
- E.F.L 2.1
- Field of View (FOV): 110°(D) x 95°(H) x 76°(V)
- Lens mount: M12
- Integrated IR filter
- Manual focus
- Automatic calibration of saturation, contrast, sharpness, white balance, exposure
- System compatibility: Windows, Linux, Mac and Android with UVC
- Microphone
- Powered by USB 5V
- Working current: 300mA
- Operating temperature: -20 to 70°C
- Dimensions: 38x38mm
Kit contains
- ArduCAM 5MP Wide Angle USB Camera
- USB 2.0 cable 1m
