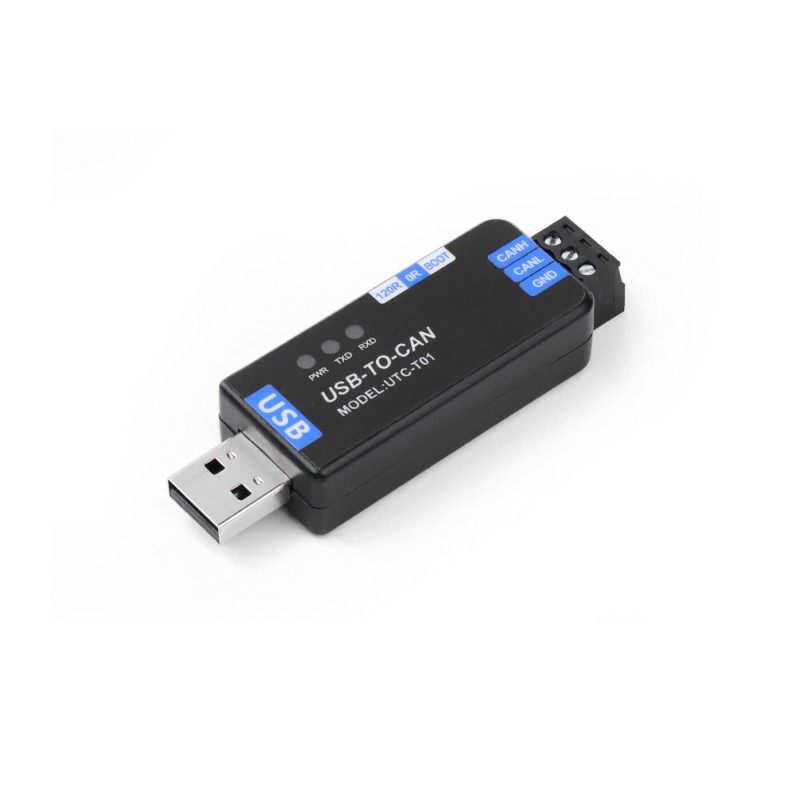

UTC-T01 Industrial USB-to-CAN - USB-CAN converter - Seeed Studio 100030768
ID: 1204621
zł94.98
Tax included
zł77.22 tax excl.
A converter enabling communication between a computer and a CAN 2.0A bus at transmission speeds from 5 kbps to 1 Mbps. Based on an STM32 microcontroller, the device offers two operating modes: PCAN, compatible with diagnostic tools, and Transparent Mode, enabling communication via a virtual serial port. The adapter is compatible with Windows, Linux, and Android systems, as well as embedded platforms such as Raspberry Pi. Seeed Studio 100030768
Description
UTC-T01 Industrial USB-to-CAN Adapter is a compact device that enables communication between a computer and a CAN bus. It is designed for embedded systems engineers, FPGA developers, and specialists analyzing and diagnosing CAN networks. Thanks to the STM32 microcontroller, it provides stable data transmission in the range from 5 kbps to 1 Mbps. The adapter supports the CAN 2.0A standard and works with many industrial systems, vehicles, and IoT devices.
The device offers two operating modes: PCAN and Transparent Mode. In PCAN mode it works like a classic PCAN-USB adapter and is compatible with diagnostic tools such as PCAN-View and TS-Master. It is also possible to upload open-source firmware such as SLCAN or Candlelight. Transparent Mode allows communication with the CAN bus via a virtual serial port without installing additional drivers.
The adapter works with Windows, Linux, and Android systems, as well as embedded platforms such as Raspberry Pi. A DIP switch allows configuration of the 120 Ω termination resistor, 0 Ω resistance, and BOOT mode for firmware updates. LED indicators show power and transmission activity. The device also supports features such as cyclic transmission, multi-frame sending, and CAN identifier filtering, which makes testing and debugging systems easier.
Features
- Industrial USB to CAN bus adapter
- Microcontroller: STM32
- Supported bus standard: CAN 2.0A
- CAN transmission speed range: 5 kbps to 1 Mbps
- Operating modes:
- PCAN Mode (default)
- Transparent Mode (virtual serial port)
- Compatibility with tools: PCAN-View, PCAN-Explorer, TS-Master
- Support for open-source firmware: SLCAN, Candlelight
- Computer communication interface: USB
- Transparent mode enabling serial communication without driver installation
- Supported operating systems:
- Windows XP / 7 / 8 / 10 / 11
- Linux (e.g., Ubuntu, Raspberry Pi OS)
- Android
- DIP switch for hardware configuration
- Option to enable 120 Ω termination resistor
- Option to switch resistance to 0 Ω
- BOOT mode for firmware updates
- Status LEDs:
- PWR – power
- TXD – data transmission
- RXD – data reception
- Online firmware update support
- Diagnostic features: multi-frame sending, cyclic transmission, CAN identifier filtering
- Dimensions: 73.8 × 23.6 × 14.5 mm
