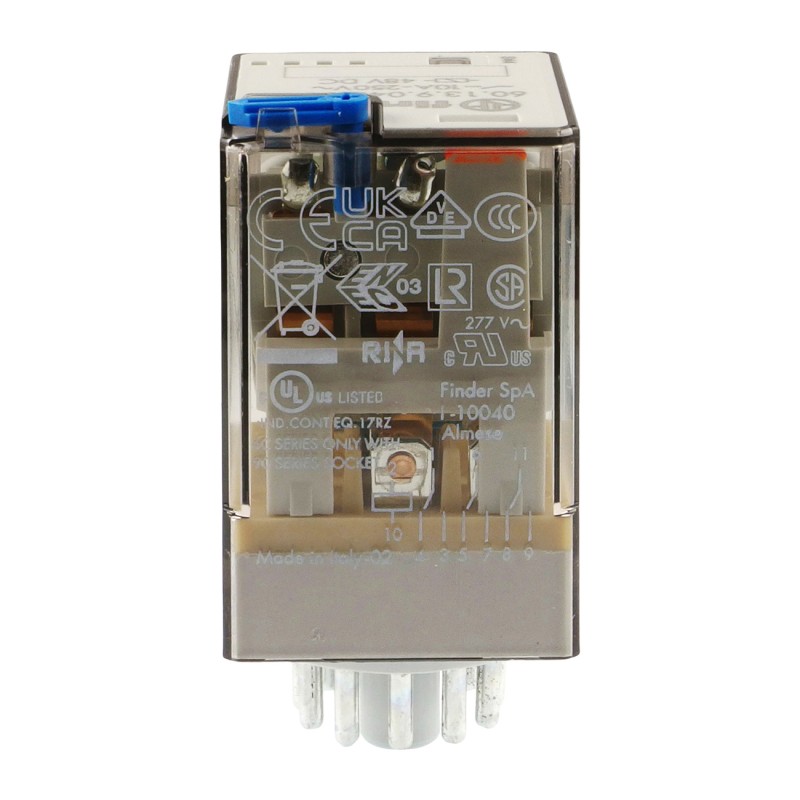

Finder 60.13.9.048.0040 - electromagnetic relay 48V 10A 3xCO for 11-pin sockets
ID: 1198111
8012823279190
zł50.71
Tax included
zł41.23 tax excl.
Industrial Finder relay with 48 V DC coil, three changeover contacts rated at 10 A and designed for 8- and 11-pin socket mounting. Finder 601390480040
Description
Industrial electromagnetic relay from the Finder 60 series designed for operation in 8- and 11-pin relay sockets, equipped with three changeover contacts rated up to 10 A. The design supports applications in industrial automation, control systems, machinery installations and switching circuits handling both signals and power loads.
The 48 V DC coil operates within a voltage range of 38.4 V to 52.8 V, ensuring stable performance in industrial 48 V systems. Contacts made of AgNi material and coil-to-contact insulation rated at 3.6 kV enable reliable operation in demanding environments.
The relay includes a test button with locking function and a mechanical status indicator, supporting commissioning, diagnostics and real-time state monitoring in control cabinets.
Features
- Series: Finder 60
- Relay type: Electromagnetic
- Contact configuration: 3 changeover contacts
- Contact material: AgNi
- Rated contact current: 10 A
- Rated contact voltage: 250 V AC
- Coil voltage: 48 V DC
- Coil voltage range: 38.4 - 52.8 V
- Coil power: 1.3 W
- Coil resistance: 1770 Ω
- Current consumption: 27.1 mA
- Holding voltage: 24 V
- Drop-out voltage: 4.8 V
- Coil-contact insulation: 3.6 kV
- Mounting: 8 / 11-pin socket
- Electrical endurance: 200000 cycles
- Operating temperature: -40°C ~ 70°C
- Dimensions: 32.5 x 54.2 x 36.4 mm
1198111
Data sheet
- Output current
- 10A
- Number of channels
- 3
- Executive element
- Przekaźnik elektromagnetyczny
- Coil voltage
- 48 VDC
Manufacturer
- FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ
- Logistyczna 27, Sady
- 62-080 Tarnowo Podgórne
- Poland
- [email protected]
Responsible person
- FINDER POLSKA SPÓŁKA Z OGRANICZONA ODPOWIEDZIALNOŚCIĄ
- Logistyczna 27, Sady
- 62-080 Tarnowo Podgórne
- Poland
- formularz kontaktowy na stronie osoby odpowiedzialnej
