USB 5 MP IMX335 camera module (B) - Waveshare 26719
ID: 1189459
5906623485222
zł225.53
Tax included
zł183.36 tax excl.

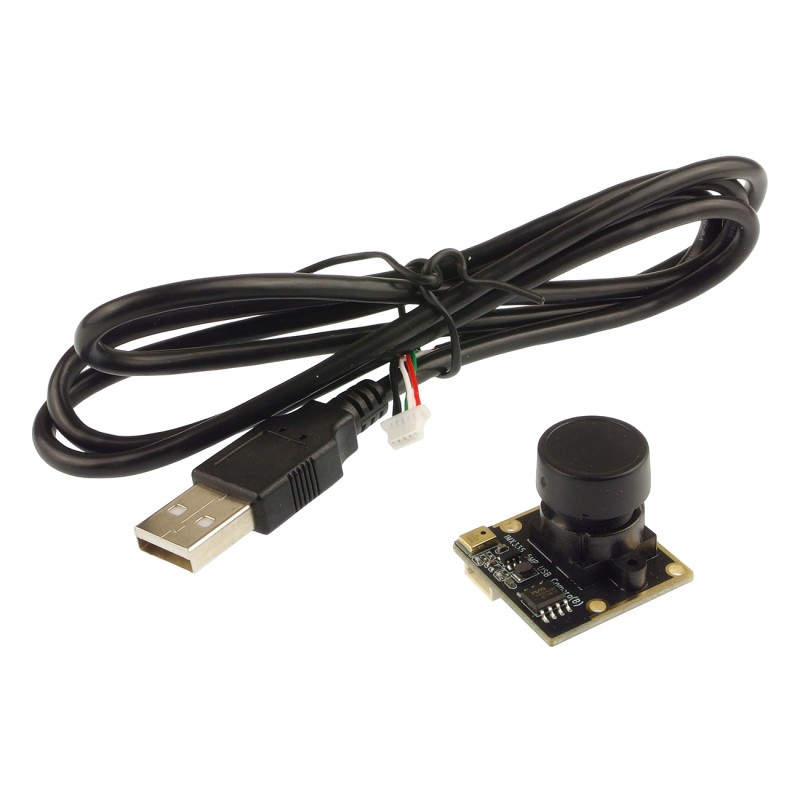

IMX335 5MP USB Camera with 5 MP resolution that provides high image quality thanks to the IMX335 sensor. The USB 2.0 interface ensures easy integration with various systems. Waveshare IMX335 5MP USB Camera (B)
Description
The USB IMX335 5MP camera with 5 MP resolution delivers high image quality thanks to the IMX335 sensor. The USB 2.0 interface ensures easy integration with various systems, and the 1/2.8 inch sensor size allows for detailed image capture. The camera features an F/2.0 aperture lens with a 3.65 mm focal length, providing a wide 175° field of view.
With a fixed-focus lens, the camera is capable of delivering clear and sharp images. It supports MJPG and YVY2 image formats and offers a static image resolution of 2592 × 1944. For video recording, the camera supports resolutions of 30 FPS 2592 × 1944, 30 FPS 1920 × 1080, and 30 FPS 1280 × 720.
The camera features a dynamic range of 71.6 dB and SNR of 36 dB, ensuring high image quality even in challenging lighting conditions. The power supply voltage is 5V ± 5%, making it a versatile solution for various applications.
Features
- Resolution: 5 MP
- Sensor: IMX335
- Interface: USB 2.0
- Sensor size: 1/2.8 inch
- Aperture (F): 2.0
- Focal length (EFL): 3.65 mm
- Field of view (FOV): 175°
- Distortion: <-36%
- Focusing: Fixed-focus
- Lens mount: M12 (Fixed)
- Construction: 5G3P + IR filter
- Supported image formats: MJPG, YVY2
- Static image resolution: 2592 × 1944
- Video recording:
- 30 FPS 2592 × 1944
- 30 FPS 1920 × 1080
- 30 FPS 1280 × 720
- Dynamic range: 71.6 dB at 8x gain
- SNR: 36 dB
- Power supply voltage: 5V ± 5%
- Operating temperature: -10°C to 60°C
- Module size: 25 × 24 mm
1189459
Data sheet
- Resolution
- 5MPx
- Interface
- USB 2.0
- Sensor
- Sony IMX335
- IR filter
- Yes
- Lens assembly
- M12
