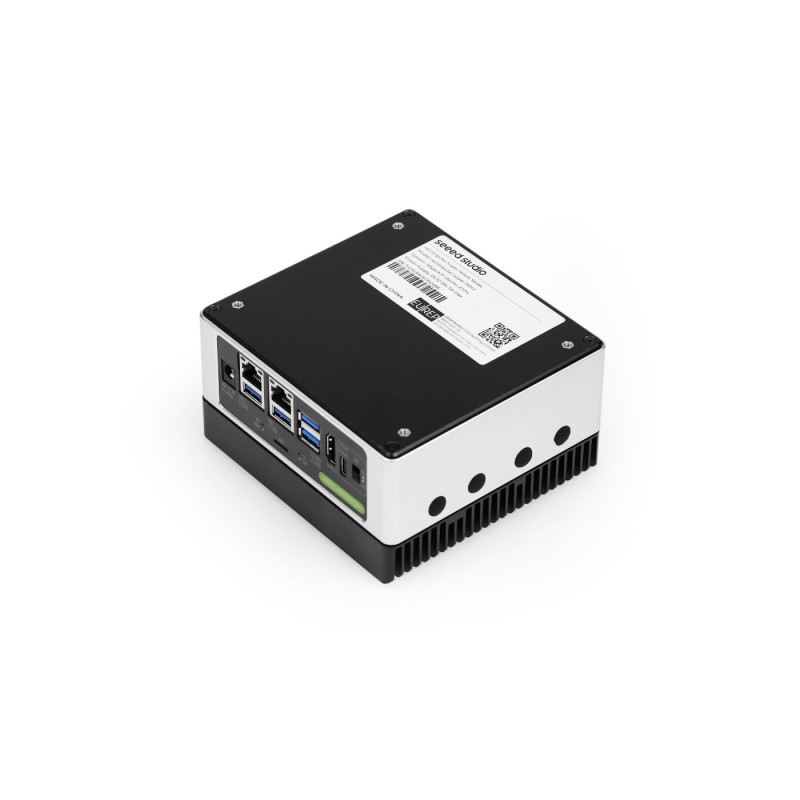

Main view
search
  • Main view
  • Front view
  • Top view
  • Bottom view
  • Set view
ID: 1204345
zł3,453.86
Tax included

zł2,808.02 tax excl.

A powerful Edge AI computer based on the NVIDIA Jetson Orin Nano 8GB module, offering up to 67 TOPS of computing power in MAXN SUPER mode. Equipped with a 6-core Arm Cortex-A78AE processor and a 1024-core NVIDIA Ampere GPU with Tensor Cores, it enables the execution of advanced vision and AI algorithms in real time. It supports up to four MIPI CSI cameras, 4K60 (H.265) decoding, a 128 GB NVMe SSD, and a rich set of interfaces, including 2x Gigabit Ethernet, USB 3.2, and HDMI 2.1. Its robust housing with active cooling and a power range of 7–25 W enable the device to be used in industry, robotics, and smart city systems. Seeed Studio 114110312

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

reComputer Super J3011 is an advanced Edge AI computer based on the NVIDIA Jetson Orin Nano 8GB platform, designed for demanding artificial intelligence applications. The device delivers performance of up to 67 TOPS in MAXN SUPER mode, enabling execution of complex vision, robotics, and generative AI algorithms. Thanks to optimized power management, configurable power modes ranging from 7 W to 25 W allow precise adjustment of performance to application requirements. The system is designed to operate in a wide temperature range from -20°C to 65°C, making it suitable for industrial and outdoor deployments.


The powerful 6-core Arm® Cortex®-A78AE processor and a 1024-core NVIDIA Ampere GPU with 32 Tensor Cores provide high computing performance for image processing and AI inference. The computer supports up to four MIPI CSI cameras and 4K60 (H.265) video decoding, enabling the development of real-time monitoring and image analysis systems. A rich set of interfaces, including dual Gigabit Ethernet, USB 3.2, HDMI 2.1, and CAN, ensures broad integration capabilities. The built-in 128GB NVMe SSD and preinstalled JetPack 6.2 allow immediate work with frameworks such as NVIDIA Isaac, ROS1/ROS2, and Hugging Face. The device supports wireless communication via Wi-Fi/Bluetooth modules and optional LTE connectivity. A robust aluminum enclosure with active cooling ensures stable operation under heavy workloads. reComputer Super J3011 is a deployment-ready solution for AI projects in industry, robotics, smart cities, and vision systems. Its compact design allows desktop or wall mounting. Compliance certifications confirm readiness for commercial and industrial applications.

Features

  • Compute module: NVIDIA Orin™ Nano 8GB
  • AI performance: 67 TOPS (MAXN_SUPER)
  • GPU: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
  • Maximum GPU frequency: 1020 MHz (MAXN_SUPER)
  • CPU: 6-core Arm® Cortex®-A78AE
  • Maximum CPU frequency: 1.7 GHz (MAXN_SUPER)
  • Memory: 8GB 128-bit LPDDR5 DRAM (up to 68GB/s; 102GB/s MAXN_SUPER)
  • Power modes: 7W / 15W / 25W
  • Video encoding: 1080p30 (1–2 CPU cores)
  • Video decoding: 1×4K60 (H.265), 2×4K30 (H.265), 5×1080p60 (H.265), 11×1080p30 (H.265)
  • Camera support: up to 4 cameras (8 via virtual channels), 8 MIPI CSI-2 lanes, D-PHY 2.1 (up to 20Gbps)
  • Module connector: 260-pin SO-DIMM
  • Storage: 1× M.2 KEY M PCIe (NVMe 2280 SSD 128GB included)
  • Networking: 2× RJ45 Gigabit Ethernet
  • Wireless connectivity: M.2 Key E (WiFi/Bluetooth), 1× mini-PCIe (LTE 4G)
  • USB: 4× USB 3.2 Type-A (5Gbps), 1× USB 2.0 Type-C (Device Mode/Debug)
  • Camera connectors: 4× MIPI CSI (2-lane 15-pin)
  • CAN: 1× CAN (4-pin header)
  • Display output: 1× HDMI 2.1
  • Cooling: 4-pin 1.25mm fan connector (5V PWM) and 4-pin 2.54mm (12V PWM)
  • Expansion connectors: 40-pin, 12-pin, and UART header
  • RTC: 1× RTC 2-pin, 1× RTC socket
  • LEDs: 2× LED (PWR, ACT)
  • Buttons: PWR, RESET
  • Switch: REC
  • Antenna connectors: 4
  • Power supply: 12 to 19V DC (5525 DC jack)
  • System version: JetPack 6.2
  • Dimensions: 130 × 120 × 66 mm
  • Weight: 1110g

Kit contains

  • Jetson Orin™ Nano 8GB module
  • Seeed Carrier Board (reComputer Super J401)
  • 128GB NVMe SSD
  • Aluminum enclosure with heatsink and fan
  • USB Type-A to Type-C cable
1204345

Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20

Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
