Development kit based on the Jetson Orin Nano 4GB module with dual Ethernet interface, JETSON-ORIN-IO-BASE-B base board, 256 GB NVMe drive and WiFi/Bluetooth card, designed for embedded systems and edge AI applications. Waveshare JETSON-ORIN-NANO-4G-ETH-DEV-KIT (EU)

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Waveshare 33175 is a development kit designed for designing, testing and prototyping embedded systems and edge AI applications, based on the Jetson Orin Nano 4GB module. The kit uses the JETSON-ORIN-IO-BASE-B base board, which provides access to a wide range of communication, vision and multimedia interfaces, enabling integration with peripheral devices, CSI cameras and wired and wireless networks.

The Jetson Orin Nano module used offers AI computing performance based on the NVIDIA Ampere GPU architecture with Tensor Cores, enabling the implementation of artificial intelligence algorithms, image analysis and real-time data processing in projects with moderate hardware requirements. The kit is supplied as a DEV KIT, including a 256 GB NVMe drive, dual-band WiFi wireless network card with Bluetooth 5.0, active cooling and a set of accessories enabling quick platform startup.

The solution is designed for applications such as vision systems, image and video analysis, educational robotics, industrial automation, edge computing and prototyping devices using artificial intelligence algorithms.

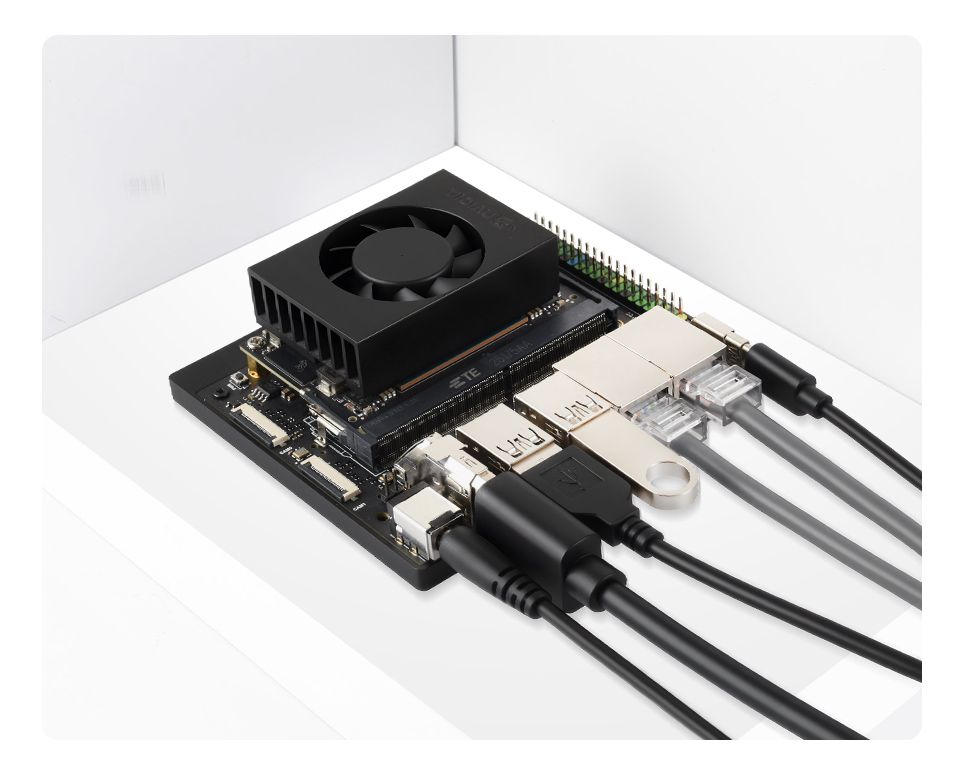

The base board provides a total of 7 USB ports, including 4 USB Type-A connectors, 1 USB Type-C port and 2 USB 2.0 connectors in FFC ribbon form, enabling connection of multiple peripheral devices.

High-speed data transfer up to 10 Gb/s via USB 3.2 Gen 2 and system programming using the Type-C port.

USB Ports
CSI Interfaces

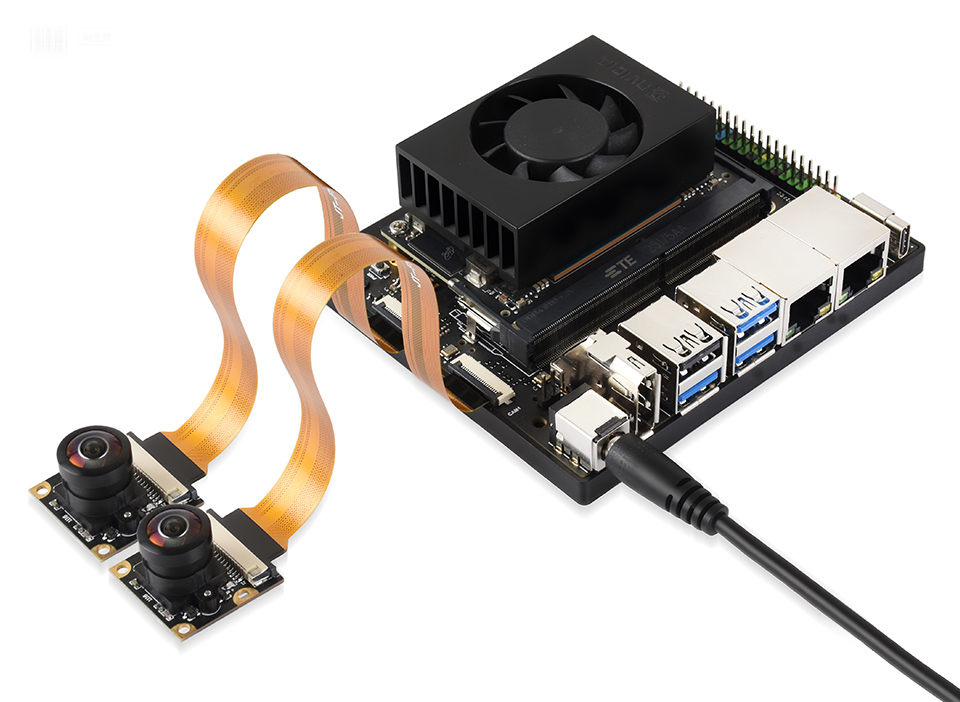

The base board allows connection of two CSI cameras, expanding the system with vision interfaces used in AI applications.

Such as object detection, image analysis, shape recognition and real-time video processing.

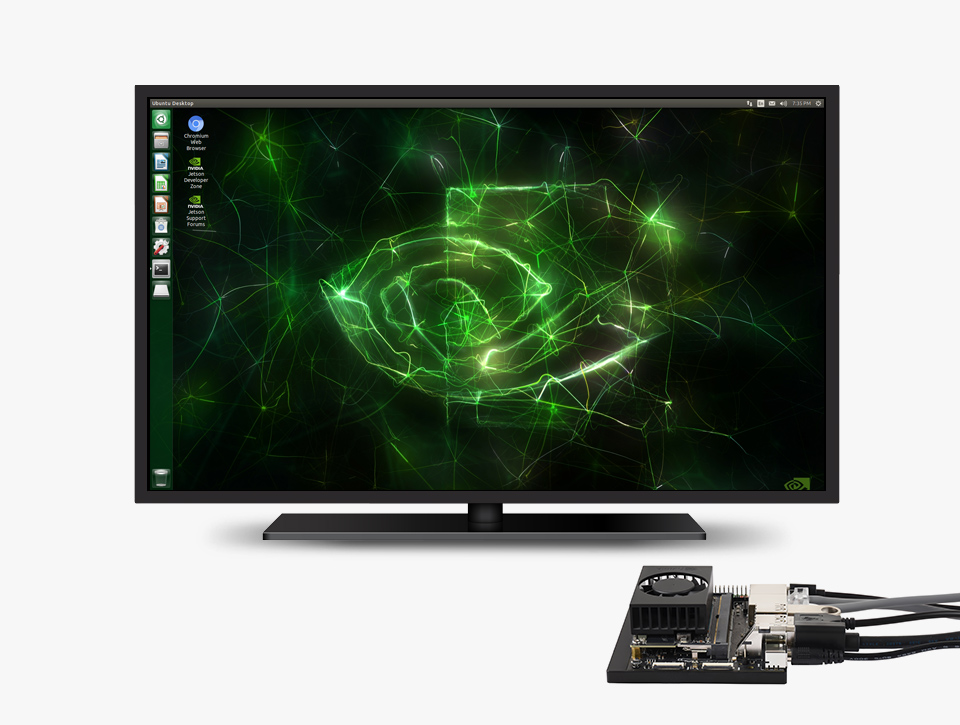

The kit supports high-resolution 4K video output using the DisplayPort interface.

This enables connection of an external monitor and work with graphical applications, data visualization and vision systems.

4K
NVIDIA

The platform supports NVIDIA Isaac, Riva and Metropolis environments.

This enables the implementation of applications in the field of robotics, image analysis, speech recognition and intelligent city systems based on real-time data processing.

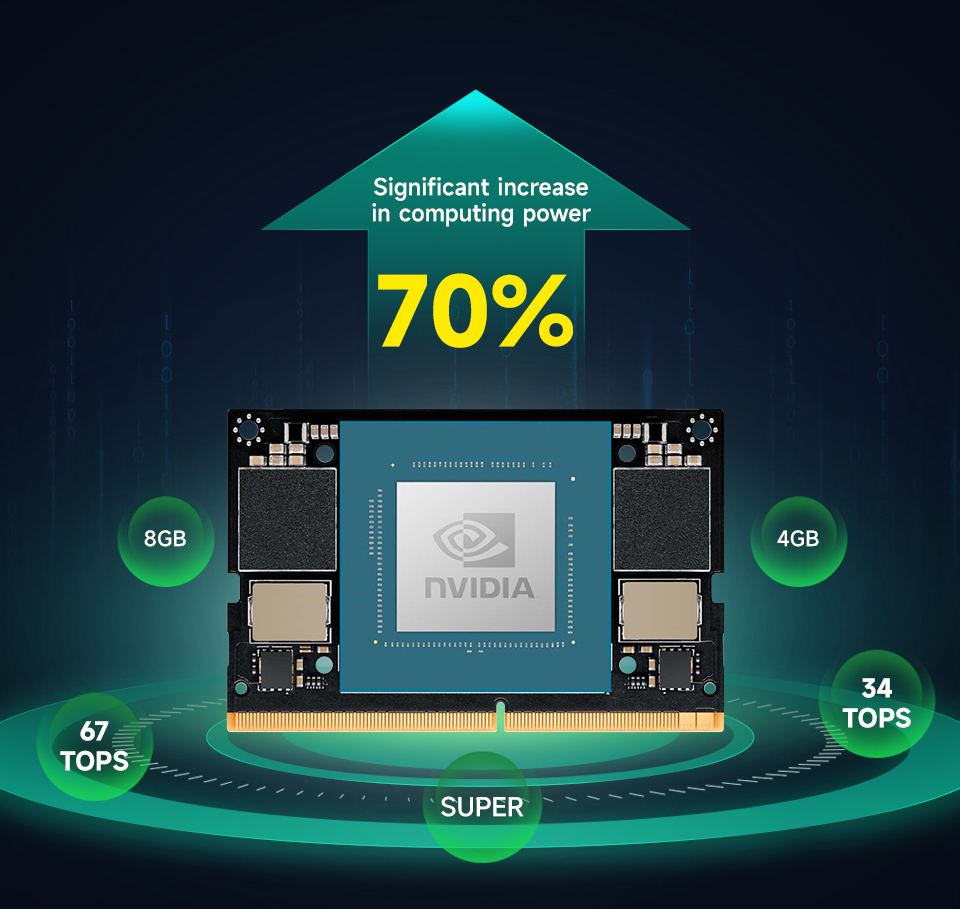

The Jetson Orin Nano module provides AI computing performance of up to 34 TOPS in the 4GB (SUPER) version.

This enables smooth execution of machine learning models and neural networks in edge AI applications with optimized power consumption.

AI Power

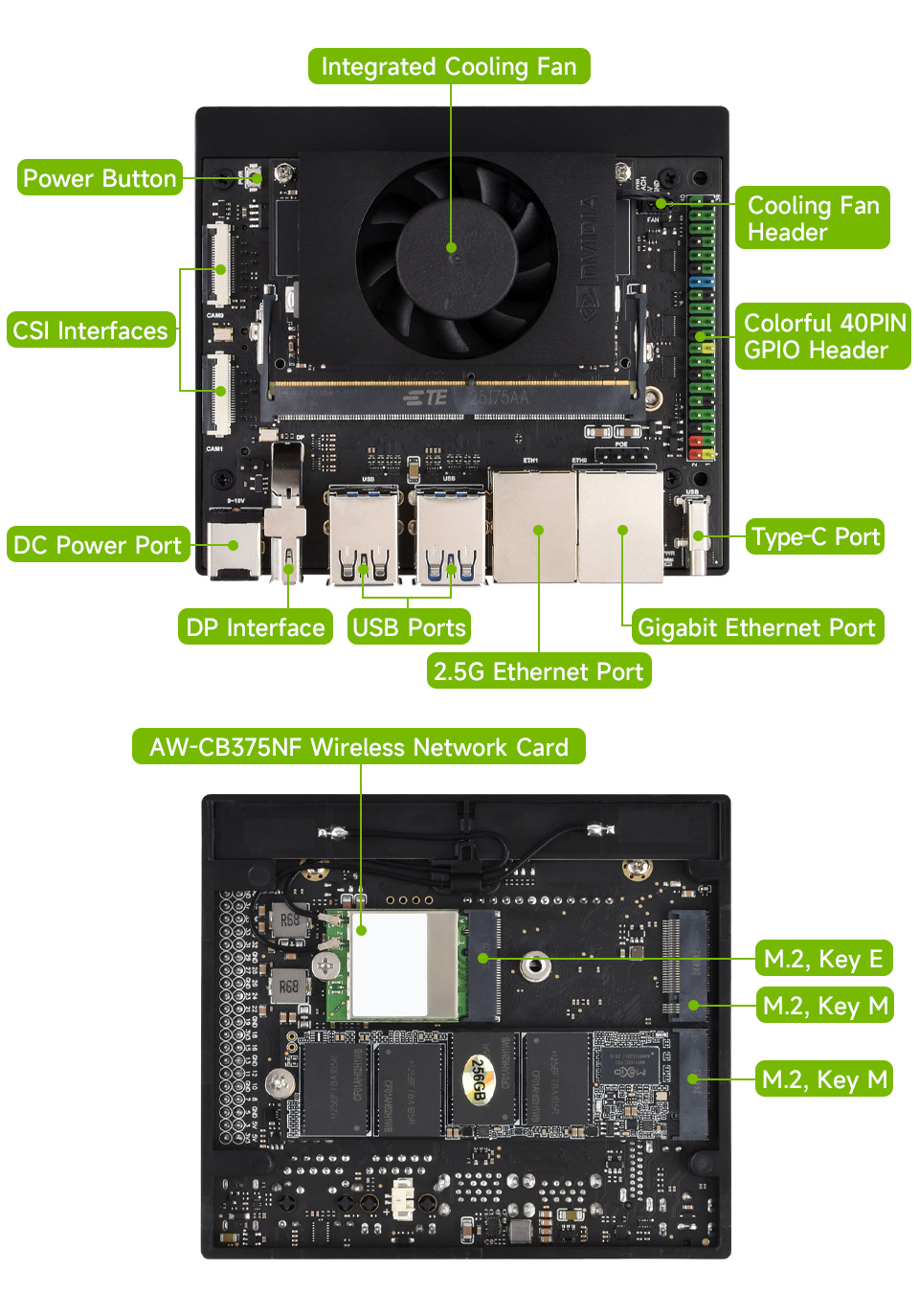

                                                                                                                                    Built-in resources


Features

  • Computing module
    • Module model: Jetson Orin Nano
    • RAM memory: 4 GB LPDDR5
    • Memory bus: 64-bit
    • Memory bandwidth: 51 GB/s
    • Module connector: 260-pin SO-DIMM
  • AI performance
    • AI performance: up to 34 TOPS (SUPER version)
    • GPU: NVIDIA Ampere
    • Number of GPU cores: 512
    • Tensor cores: 16
    • Maximum GPU frequency: 1020 MHz
  • Processor
    • CPU: 6-core Arm Cortex-A78AE v8.2 64-bit
    • Cache memory: 1.5 MB L2 + 4 MB L3
    • Maximum CPU frequency: 1.7 GHz
  • Base board and interfaces
    • Base board model: JETSON-ORIN-IO-BASE-B
    • PCIe interface:
      • 1 x PCIe x4 Gen3
      • 3 x PCIe x1 Gen3
    • USB interfaces:
      • 3 x USB 3.2 Gen 2 (up to 10 Gb/s)
      • 3 x USB 2.0
      • 2 x USB 2.0 FFC connectors
      • 1 x USB Type-C (system programming)
    • Total number of USB ports: 7
  • Camera support
    • Interface: MIPI CSI-2
    • Number of lanes: 8
    • Camera support: up to 4 cameras (up to 8 with virtual channels)
    • D-PHY standard: 1.2
    • Bandwidth: up to 20 Gb/s
  • Video and display
    • Video output: DisplayPort 1.4a
      • Supported modes: up to 8K at 30 Hz
    • Video encoding:
      • 1 x 4K60 H.265
      • 3 x 4K30 H.265
      • 6 x 1080p60 H.265
    • Video decoding:
      • 1 x 8K30 H.265
      • 2 x 4K60 H.265
      • 4 x 4K30 H.265
  • Networking
    • Ethernet:
      • 1 x RJ45 2.5G Ethernet
      • 1 x RJ45 Gigabit Ethernet
    • Wireless networking:
      • Dual-band WiFi
      • Bluetooth 5.0
    • Antennas: 2 x PCB antenna
  • Mass storage
    • Drive included: NVMe SSD 256 GB
    • Support for additional storage: NVMe (M.2)
  • Power supply and power consumption
    • Power profiles: 7 W / 10 W / 25 W
  • Additional interfaces
    • UART: 3
    • SPI: 2
    • I2S: 2
    • I2C: 4
    • CAN: 1
    • Audio: DMIC, DSPK
    • GPIO: available
    • PWM: available
  • Dimensions
    • Jetson Orin Nano module dimensions: 69.6 x 45 mm

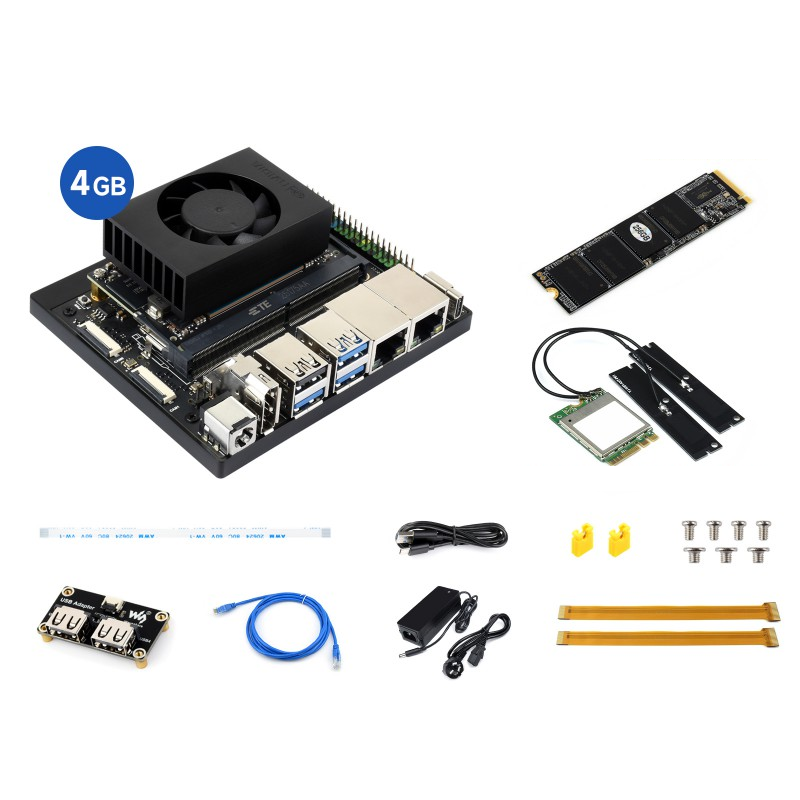

Kit includes

  • 1x Jetson Orin Nano module (4GB variant)
  • 1x JETSON-ORIN-IO-BASE-B base board
  • 1x Cooling fan
  • 1x NVMe SSD 256 GB (assembled)
  • 1x WiFi/Bluetooth wireless network card (assembled)
  • 1x 6-pin FFC cable approx. 10 cm
  • 1x USB Type-A to Type-C cable approx. 1 m
  • 1x Set of jumpers (2 pcs.)
  • 1x Set of mounting screws
  • 1x USB expansion board
  • 1x Ethernet network cable approx. 1.5 m
  • 1x Power supply adapter (EU)
  • 2x CSI camera FPC cable approx. 15 cm
