Teltonika FMT100 - GPS tracker for vehicles with 2G communication

Description

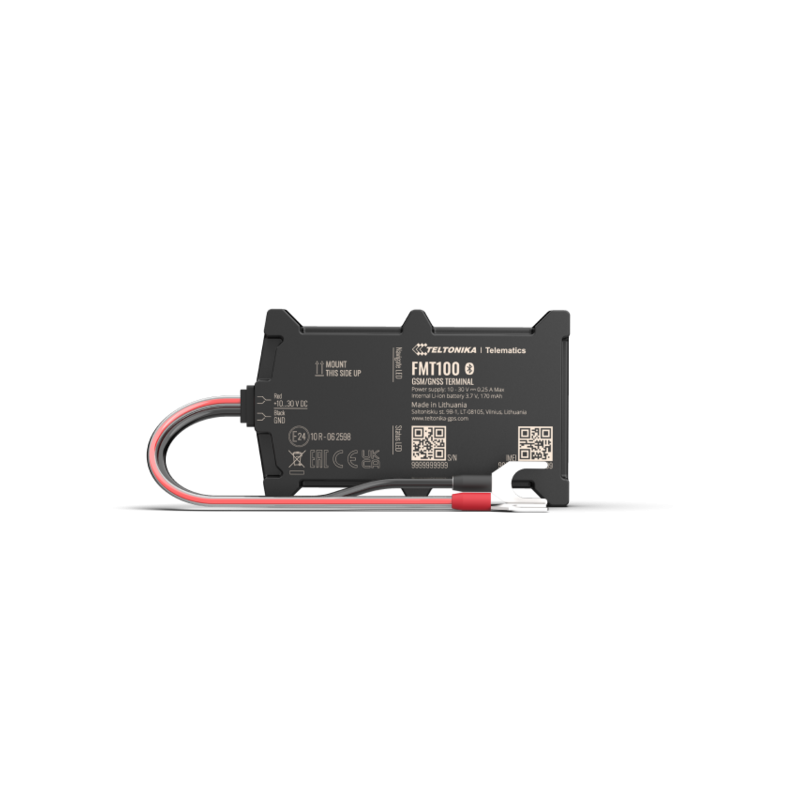

FMT100 is an advanced 2G vehicle tracker mounted directly to the battery, designed for quick installation and reliable real-time vehicle monitoring. Thanks to its compact design and dedicated cable with a mounting clamp, installation is extremely simple and does not require complex setup. The tracker uses GNSS and GSM/GPRS technology, enabling precise positioning and data transmission to a server. Support for multiple satellite systems such as GPS, GLONASS, GALILEO, and BEIDOU ensures high positioning accuracy below 2.5 m.

The device is equipped with a built-in 3-axis accelerometer, enabling advanced driving behavior analysis and detection of events such as collisions. The crash detection feature allows accurate recording of incident data, and parameters can be fully configured via the manufacturer’s software. This makes FMT100 ideal for fleet management systems and driver safety monitoring.

The built-in Bluetooth® 4.0 LE module enables integration with additional sensors such as temperature and humidity sensors, OBDII interfaces, or barcode scanners. The device offers a wide range of telematics features, including driving behavior monitoring, overspeed detection, idling detection, and towing detection. Support for various sleep modes allows significant reduction of power consumption during idle periods.

The robust IP65-rated enclosure ensures resistance to harsh environmental conditions, making it suitable for both passenger and commercial vehicles. FMT100 also features 128 MB of internal memory for data storage and a backup battery. Communication is handled via GPRS or SMS, while configuration can be performed remotely or via USB and Bluetooth. FMT100 is a reliable solution for fleets, logistics companies, and vehicle security systems, where precision, durability, and ease of installation are essential.

Features

• Module: Teltonika TM2500
• Technology: GSM / GPRS / GNSS / Bluetooth® LE
• GNSS systems: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• GNSS receiver: 33 channels
• Tracking sensitivity: -165 dBm
• Position accuracy: < 2.5 m CEP
• Speed accuracy: < 0.1 m/s (±15%)
• Time to first fix:
  • Hot start: < 1 s
  • Warm start: < 25 s
  • Cold start: < 35 s
• Cellular network: GSM quad-band 850 / 900 / 1800 / 1900 MHz
• Data transmission: GPRS Class 12 (up to 240 kbps), Mobile Station Class B
• Data support: SMS (TEXT, PDU), TCP, UDP, TLS, MQTT
• Power supply: 10 to 30 V DC with overvoltage protection
• Internal battery: 3.7 V 170 mAh Li-Ion (0.63 Wh)
• Bluetooth: 4.0 + LE
• Supported Bluetooth devices: temperature and humidity sensors, headset, OBDII dongle, barcode scanner, universal BLE sensors
• Interface: U-type cable
• GNSS antenna: internal high-gain
• GSM antenna: internal high-gain
• USB port: Micro-USB 2.0
• Indicators: 2 LED indicators
• SIM card: Micro-SIM
• Memory: 128 MB Flash
• Sensors: accelerometer
• Functions:
  • Green Driving
  • Overspeed detection
  • Jamming detection
  • GNSS Fuel Counter
  • Excessive idling detection
  • Disconnection detection
  • Towing detection
  • Collision detection
  • Automatic and manual geofencing
  • Route logging
• Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
• Configuration: FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth)
• Time synchronization: GNSS, NITZ, NTP
• Fuel monitoring: via OBDII
• Ignition detection: accelerometer, power voltage, RPM (OBDII)
• Operating temperature (without battery): -40 °C to +85 °C
• Storage temperature (without battery): -40 °C to +85 °C
• Operating humidity: 5% – 95% non-condensing
• Protection rating: IP65
• Dimensions: 92.5 x 57.6 x 14 mm
• Weight: 63 g
